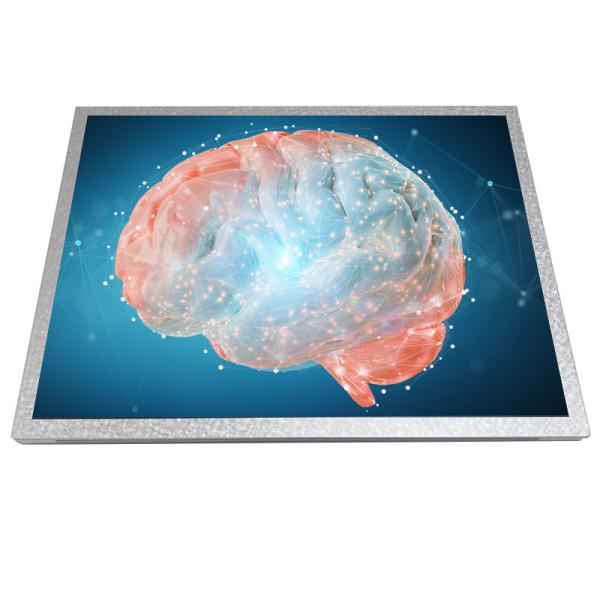

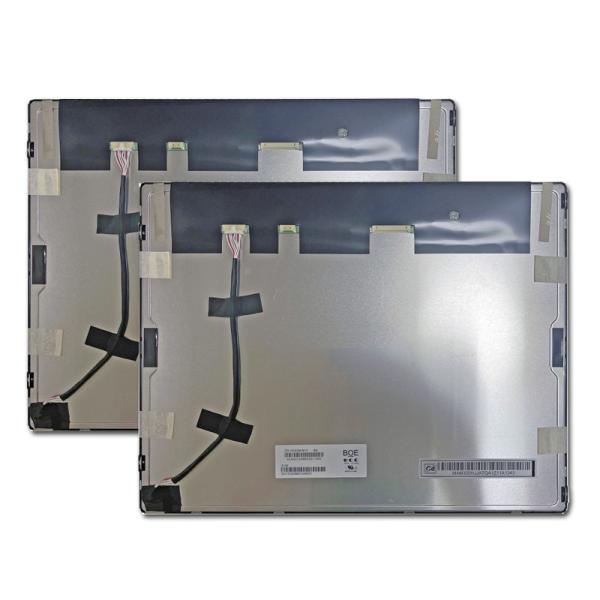

DV150X0M-N16 BOE Panel With 1024×768 600nit High Brightness LCD Display
DV150X0M-N16 BOE Panel With 1024×768 600nit High Brightness LCD Display
DV150X0M-N16 BOE Panel With 1024×768 600nit High Brightness LCD Display
DV150X0M-N16 BOE Panel With 1024×768 600nit High Brightness LCD Display
DV150X0M-N16 BOE Panel With 1024×768 600nit High Brightness LCD Display
DV150X0M-N16 BOE Panel With 1024×768 600nit High Brightness LCD Display
Specifications
Brand Name :
BOE
Model Number :
DV150X0M-N16
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
500,0 pieces per day
Delivery Time :
1~7 working days
Packaging Details :
Customized
Size (inch) :
15
Brightness (cd/m²) :
600
Resolution :
1024×768
Active Area (W*H) :
304.128×228.096
Outline Dimension (W*H*T) :
326.5×253.5×10.4
Operating Temperature :
-20 ~ 70 °C
Storage Temperature :
-30 ~ 80 °C
Viewing angle(RLUD) :
89/89/89/89
Viewing Direction :
IPS
Contrast Ratio :
1000
LED Lifetime (hrs) :
50K
Interface :
LVDS 20
Description

15 inch DV150X0M-N16 BOE Panel with 1024×768 Pixels Resolution 600nit High Brightness LCD Display

Brand BOE
Model P/N DV150X0M-N16
Diagonal Size 15.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)×768, XGA 85PPI
Pixel Format RGB Vertical Stripe
Active Area 304.128(W)×228.096(H) mm
Bezel Opening 306.13(W)×230.1(H) mm
Outline(mm) 326.5(W)×253.5(H)×10.4(D)
Luminance 600 (Typ.)(cd/m²)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Good View at Symmetry
Color Depth 16.7M 72% NTSC
Mass 730g
Refresh Rate 60Hz
Treatment Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Work Mode ADS, Normally Black, Transmissive
Response 30 (Typ.)(Tr+Td) ms
Backlight 12S4P WLED , 50K hours , With LED Driver
Used for Industrial
Touchscreen Without
Signal Type LVDS (1 ch, 8-bit) , 20 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
