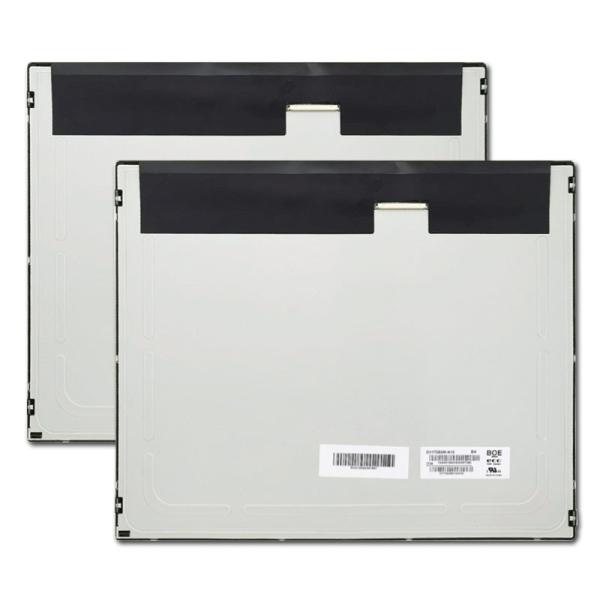

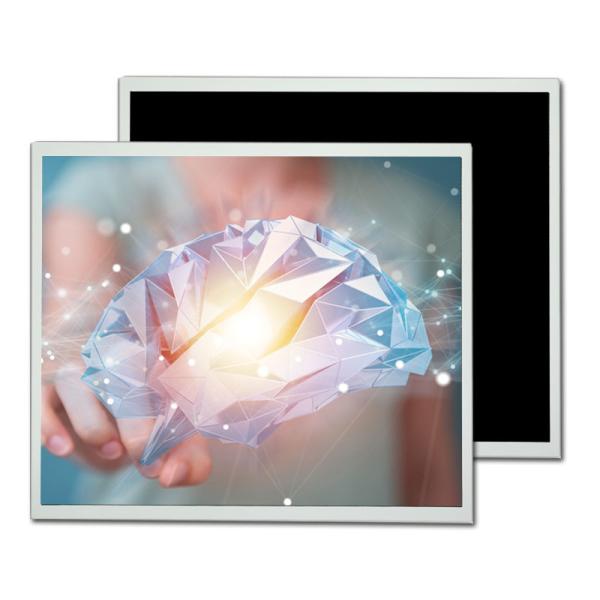

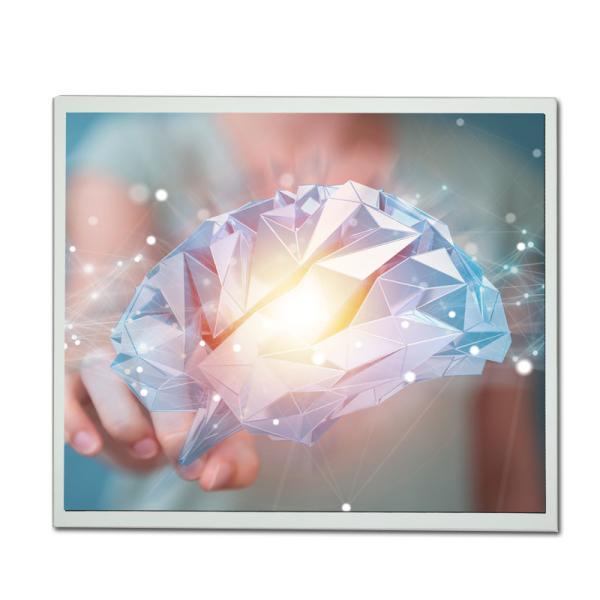

17 Inch DV170E0M-N10 BOE LCD Panel 250nit IPS Screen Viewing Angle
17 Inch DV170E0M-N10 BOE LCD Panel 250nit IPS Screen Viewing Angle
17 Inch DV170E0M-N10 BOE LCD Panel 250nit IPS Screen Viewing Angle
17 Inch DV170E0M-N10 BOE LCD Panel 250nit IPS Screen Viewing Angle
17 Inch DV170E0M-N10 BOE LCD Panel 250nit IPS Screen Viewing Angle
17 Inch DV170E0M-N10 BOE LCD Panel 250nit IPS Screen Viewing Angle
17 Inch DV170E0M-N10 BOE LCD Panel 250nit IPS Screen Viewing Angle
17 Inch DV170E0M-N10 BOE LCD Panel 250nit IPS Screen Viewing Angle
Specifications
Brand Name :
BOE
Model Number :
DV170E0M-N10
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
500,0 pieces per day
Delivery Time :
1~7 working days
Packaging Details :
Customized
Size (inch) :
17
Brightness (cd/m²) :
250
Resolution :
1280×1024
Active Area (W*H) :
337.92 × 270.336
Outline Dimension (W*H*T) :
358.5×296.5×10.8
Operating Temperature :
0 ~ 50 °C
Storage Temperature :
-20 ~ 60 °C
Viewing angle(RLUD) :
89/89/89/89
Viewing Direction :
IPS
Contrast Ratio :
1000
LED Lifetime (hrs) :
50K
Interface :
LVDS 30
Description

17 inch DV170E0M-N10 BOE Panel Typewith 1024×768 Pixels Resolution 250nit IPS Screen Viewing Angle

BOE DV170E0M-N10 Application Details
Basic Detail : Manufacturer BOE Model Name DV170E0M-N10
Panel Type a-Si TFT-LCD , LCM
Panel Size 17.0 inch Designed For Digital Signage
Maximum Ratings : OP Temperature 0 ~ 50 °C ST Temperature ‐0 ~ 60 °C
RoHS RoHS Vibration Level
Features : Landscape/Portrait,Hight WLED Backlight,Upside I/F, Matte
BOE DV170E0M-N10 Mechanical Details
Pixel Features : Number of Pixel 1280(RGB)×1024, SXGA Arrangement RGB Vertical Stripe
Dot Pitch (mm) 0.088×0.264 (H×V) Pixel Pitch (mm) 0.264×0.264 (H×V) [96PPI]
Physical Size : Active Viewing (mm) 337.92(H) × 270.336(V) Bezel Area(mm) 341.72(H) × 274.14(V)
Outline Dim.(mm) 358.5(H) × 296.5(V) Depth(mm) 8.7/10.8 (Typ./Max.)
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 5:4 (H:V) Shape Style
Mounting : Side mounting holes (4-M2) on left, right bezel
Other Detail : Mass 1.35Kgs (Typ.) Surface Antiglare (Haze 25%), Hard coating (3H)
BOE DV170E0M-N10 Optical Details
Basic Information : Luminance 250 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 20 (Typ.)(Tr+Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode HADS, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (6-bit + Hi-FRC)
Color Temperature 6485K White Variation 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut : NTSC Ratio 73% sRGB 94% coverage
Adobe RGB 73% coverage DCI-P3 76% coverage
Rec.2020 55% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
