430 Nits BOE LCD Display GV101WXM-N85 10.1 Inch BOE Panel 1028*800 Resolution
430 Nits BOE LCD Display GV101WXM-N85 10.1 Inch BOE Panel 1028*800 Resolution
430 Nits BOE LCD Display GV101WXM-N85 10.1 Inch BOE Panel 1028*800 Resolution
430 Nits BOE LCD Display GV101WXM-N85 10.1 Inch BOE Panel 1028*800 Resolution
430 Nits BOE LCD Display GV101WXM-N85 10.1 Inch BOE Panel 1028*800 Resolution
430 Nits BOE LCD Display GV101WXM-N85 10.1 Inch BOE Panel 1028*800 Resolution
Specifications
Brand Name :
BOE
Model Number :
GV101WXM-N85
Place of Origin :
Shenzhen, China
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
MOQ :
1 piece
Price :
Please contact us for latest price
Packaging Details :
Customized
Delivery Time :
1~7 working days
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
500,0 pieces per day
Size (inch) :
10.1
Resolution :
1028*800
Luminance(nits) :
430
Active Area (W*H) :
216.96*135.6
Outline Dimension (W*H*T) :
228.2*148.85*4.9
Viewing Direction :
IPS
Viewing angle(RLUD) :
85/85/85/85
Operating Temperature :
-20℃～70℃
Storage Temperature :
-30℃～70℃
Interface :
LVDS 40
LED Lifetime (hrs) :
34K
Contrast Ratio :
800
Description

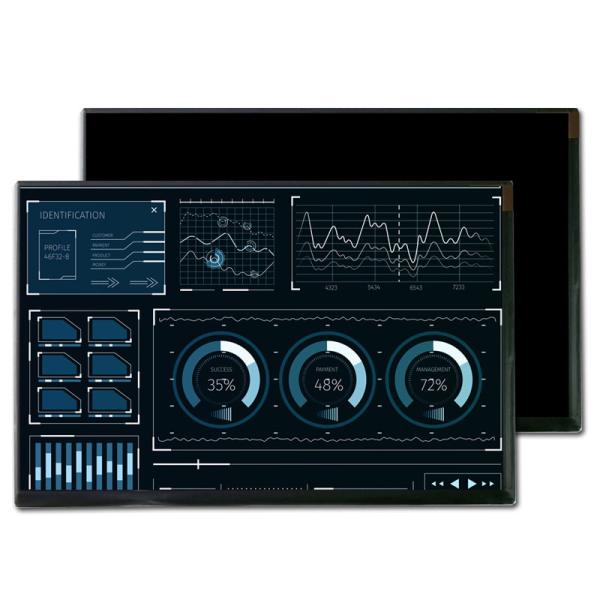

GV101WXM-N85 LCD Display 10.1 inch BOE Panel with 430 Nits Luminance 1028*800 Resolution

Product Description:

Brand BOE
Model P/N GV101WXM-N85
Diagonal Size 10.1"
Panel Type a-Si TFT-LCD, LCM
Resolution 1280(RGB)×800, WXGA 149PPI
Pixel Format RGB Vertical Stripe
Active Area 216.96(W)×135.6(H) mm
Bezel Opening -
Outline(mm) 228.2 × 148.85 × 4.9 (H×V×D)
Treatment Antiglare (Haze 25%)
Luminance 430 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Response 30 (Typ.)(Tr+Td) ms
Good View at Symmetry
Work Mode ADS, Normally Black, Transmissive
Color Depth 16.7M 48% NTSC
Backlight WLED , 34K hours , With LED Driver
Mass 250g (Max.)
Used for Industrial, monitor
Refresh Rate 60Hz
Touchscreen Without
Signal Type LVDS (1 ch, 8-bit) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 70 °C

430 Nits BOE LCD Display GV101WXM-N85 10.1 Inch BOE Panel 1028*800 Resolution

Features:

The BOE LCD Display utilizes an IPS viewing direction, ensuring that colors are consistent and vibrant no matter what angle you're viewing it from. Plus, with a LED lifetime of 34K hours, you can rest assured that this TFT module will last for years to come, even with heavy use.

This industrial LCD is also designed with ease of use in mind. It features an LVDS 40 interface, making it simple to integrate into any existing system or project. Plus, with its sleek and durable design, this TFT module is built to withstand even the toughest industrial environments.

Whether you're designing a new industrial touch screen monitor or simply need to upgrade an existing system, the BOE LCD Display is the perfect choice. With its high-quality construction, vibrant colors, and reliable performance, this industrial LCD is sure to exceed your expectations.

Applications:

BOE GV101WXM-N85 is a high-quality LCD display, the model has a resolution of 1028*800 and a viewing angle of 85/85/85/85 (RLUD). Its outline dimension is 228.2*148.85*4.9, making it a suitable choice for various applications. The display also has a wide operating temperature range of -20℃ to 70℃, and a storage temperature of -20℃ to 70℃.

This LCD display is an ideal solution for vehicle LCD display applications, such as in-car entertainment systems, dashboard displays, and navigation systems. The display is also compatible with LVDS display interface, making it a versatile choice for various applications.

BOE is one of the leading display panel manufacturers in the industry, and their GV101WXM-N85 is a testament to their commitment to quality and innovation.

Support and Services:

Product Technical Support:

INNOLUX provides technical support for its LCD Display products, including troubleshooting, diagnostic assistance, and repair services. Technical support is available through our online support portal, email, or phone.

Product Services:

INNOLUX offers a range of services for its LCD Display products, including installation, maintenance, and calibration. We also offer customization services to meet specific customer requirements, as well as recycling and disposal services for end-of-life products.

Packing and Shipping:

Product Packaging:

  • BOE LCD Display
  • Protective foam padding
  • User manual
