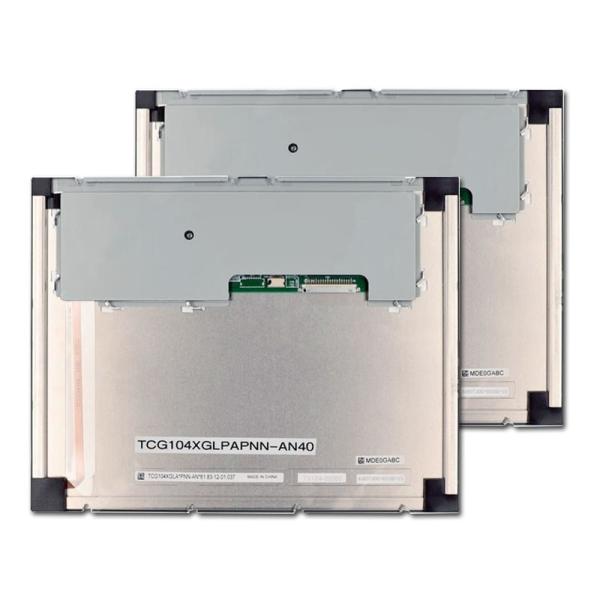

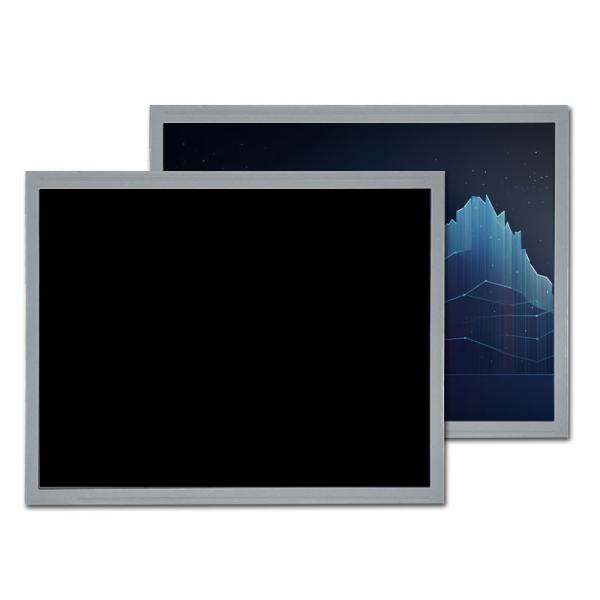

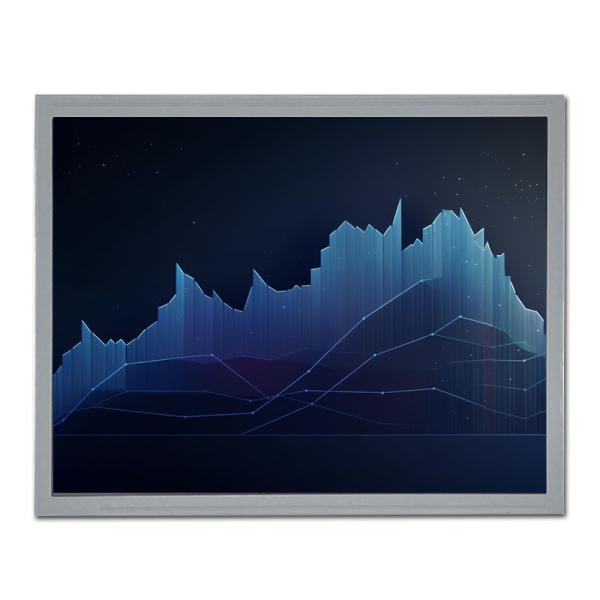

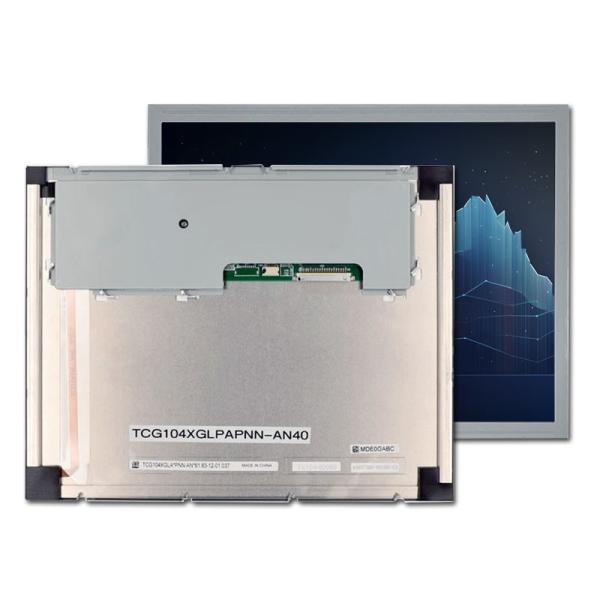

TCG104XGLPAPNN-AN40 Kyocera LCD Display 1024x768 10.4 Inch IPS TFT Panel
TCG104XGLPAPNN-AN40 Kyocera LCD Display 1024x768 10.4 Inch IPS TFT Panel
TCG104XGLPAPNN-AN40 Kyocera LCD Display 1024x768 10.4 Inch IPS TFT Panel
TCG104XGLPAPNN-AN40 Kyocera LCD Display 1024x768 10.4 Inch IPS TFT Panel
TCG104XGLPAPNN-AN40 Kyocera LCD Display 1024x768 10.4 Inch IPS TFT Panel
TCG104XGLPAPNN-AN40 Kyocera LCD Display 1024x768 10.4 Inch IPS TFT Panel
TCG104XGLPAPNN-AN40 Kyocera LCD Display 1024x768 10.4 Inch IPS TFT Panel
TCG104XGLPAPNN-AN40 Kyocera LCD Display 1024x768 10.4 Inch IPS TFT Panel
Specifications
Brand Name :
Kyocera
Model Number :
TCG104XGLPAPNN-AN40
Place of Origin :
Shenzhen, China
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
MOQ :
1 piece
Price :
Please contact us for latest price
Packaging Details :
Customized
Delivery Time :
1~7 working days
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
500,0 pieces per day
Size (inch) :
10.4
Resolution :
1024×768
Brightness (cd/m²) :
1300
Active Area (W*H) :
210.4 × 157.8
Outline Dimension (W*H*T) :
230 × 180.2×10.5
Operating Temperature :
-30 ~80 °C
Storage Temperature :
-30 ~80 °C
Viewing angle(RLUD) :
85/85/85/85
Viewing Direction :
IPS
Interface :
LVDS
Contrast Ratio :
700
LED Lifetime (hrs) :
70K
Description

10.4 inch TCG104XGLPAPNN-AN40 Kyocera LCD Display 1024x768 IPS TFT with LVDS Interface

Product Description:

Kyocera TCG104XGLPAPNN-AN40 Application Details
Basic Information : Brand Kyocera Type a-Si TFT-LCD , LCM
Model TCG104XGLPAPNN-AN40 Used For Indusrial, automotive display
Screen Size 10.4 inch Alias -
Environment : Storage Temp. -30 ~ 80°C Operating Temp. -30 ~ 80 °C
RoHS YES Vibration -
Kyocera TCG104XGLPAPNN-AN40 Mechanical Details
Pixel Features : Resolution 1024(RGB)×768, XGA Dot Pitch(mm) 0.0685×0.2055 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.2055×0.2055 (H×V) [123PPI]
Mechanical Size : Active Area(mm) 210.4(H) × 157.8(V) Bezel Area(mm) 215.4(H) × 161.8(V)
Outline Dim.(mm) 230(H) × 180.2(V) Depth(mm) 10.5±0.5
Outline Features : Form Style Flat Rectangle Shape Style
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting : Side mounting holes (4-M3) on left, right bezel
Other Spec : Weight 480g (Typ.) Treatment Antiglare
Kyocera TCG104XGLPAPNN-AN40 Optical Details
Basic Information : Luminance(cd/m²) 1300 (Typ.) Contrast Ratio 700:1 (Typ.) (Transmissive)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Display Mode AWV, Normally Black, Transmissive
Best View on Symmetry Response(ms) 18/12 (Typ.)(Tr/Td)
Color Performance : White Coordinate Wx:0.315; Wy:0.340 Display Colors 262K/16.7M (6-bit / 8-bit)
Color Temperature 6304K White Uniformity -
1931 Color Gamut : NTSC Ratio 51% sRGB 71% coverage
Adobe RGB 53% coverage DCI-P3 53% coverage
Rec.2020 38% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmissivity -

Features:

One of the key features of the Kyocera LCD Display is its impressive contrast ratio of 700, which ensures excellent image quality and clarity. This makes it an ideal choice for applications where high-quality visuals are essential, such as in military and industrial environments.

The display also boasts an outline dimension of 230(H) × 180.2(V)×10.5, making it compact and easy to integrate into a variety of systems. This makes it a great choice for applications where space is at a premium.

In addition to its impressive size and contrast ratio, the Kyocera LCD Display is also designed to withstand harsh environmental conditions. It has a storage temperature range of -30 ~80 °C, making it suitable for use in extreme temperatures.

The interface of the Kyocera LCD Display is LVDS, which is a high-speed, low-power digital interface that is commonly used in industrial applications. This makes it easy to integrate into a variety of systems and ensures reliable performance.

In summary, the Kyocera LCD Display is a top-of-the-line military and industrial TFT display that offers superior performance, reliability, and durability. With its 10.4-inch size, 700 contrast ratio, compact outline dimension, and LVDS interface, it is an ideal choice for a wide range of applications.

Support and Services:

Kyocera offers technical support and services for their LCD display products, including:

  • Product documentation and manuals
  • Technical troubleshooting and assistance
  • Repair and replacement services
  • Customization and design services
  • Training and education programs

For more information on Kyocera's LCD display technical support and services, please contact their customer service team.

Packing and Shipping:

Product Packaging:

  • 1 Kyocera LCD Display unit
  • 1 User Manual

Shipping Information:

  • Shipping Method: UPS, FEDEX, DHL
  • Expected Delivery Date: 3-5 Business Days
