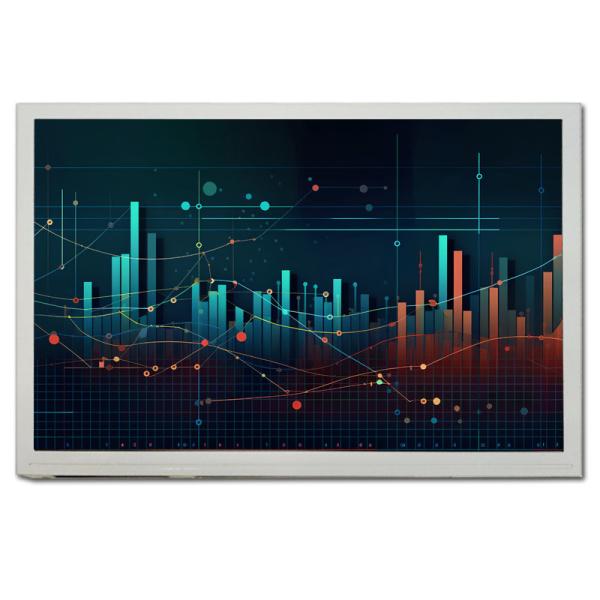

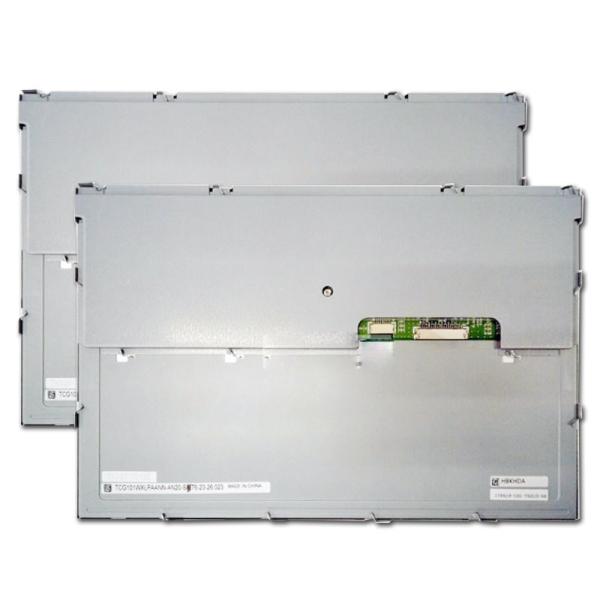

10.1 inch Brightness 500Cd/m² 1280x800 TCG101WXLPAANN-AN20 Kyocera TN LCD Display with 800 Contrast Ratio LVDS Interface
10.1 inch Brightness 500Cd/m² 1280x800 TCG101WXLPAANN-AN20 Kyocera TN LCD Display with 800 Contrast Ratio LVDS Interface
10.1 inch Brightness 500Cd/m² 1280x800 TCG101WXLPAANN-AN20 Kyocera TN LCD Display with 800 Contrast Ratio LVDS Interface
10.1 inch Brightness 500Cd/m² 1280x800 TCG101WXLPAANN-AN20 Kyocera TN LCD Display with 800 Contrast Ratio LVDS Interface
10.1 inch Brightness 500Cd/m² 1280x800 TCG101WXLPAANN-AN20 Kyocera TN LCD Display with 800 Contrast Ratio LVDS Interface
10.1 inch Brightness 500Cd/m² 1280x800 TCG101WXLPAANN-AN20 Kyocera TN LCD Display with 800 Contrast Ratio LVDS Interface
10.1 inch Brightness 500Cd/m² 1280x800 TCG101WXLPAANN-AN20 Kyocera TN LCD Display with 800 Contrast Ratio LVDS Interface
10.1 inch Brightness 500Cd/m² 1280x800 TCG101WXLPAANN-AN20 Kyocera TN LCD Display with 800 Contrast Ratio LVDS Interface
Specifications
Brand Name :
Kyocera
Model Number :
TCG101WXLPAANN-AN20
Place of Origin :
Shenzhen, China
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
MOQ :
1 piece
Price :
Please contact us for latest price
Packaging Details :
Customized
Delivery Time :
1~7 working days
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
500,0 pieces per day
Resolution :
1280×800
Size (inch) :
10.1
Brightness (cd/m²) :
500
Active Area (W*H) :
216.96(W)×135.6(H) mm
Outline Dimension (W*H*T) :
236(W)×156.8(H) ×9.9(D) Mm
Operating Temperature :
-20 ~ 70 °C
Storage Temperature :
-30 ~80 °C
Viewing angle(RLUD) :
80/80/80/80
Viewing Direction :
TN
Interface :
LVDS 20
Contrast Ratio :
800
LED Lifetime (hrs) :
50K
Description

Product Information:

Brand Kyocera
Model P/N TCG101WXLPAANN-AN20
Diagonal Size 10.1"
Panel Type a-Si TFT-LCD, LCM
Resolution 1280(RGB)×800, WXGA 149PPI
Pixel Format RGB Vertical Stripe
Active Area 216.96(W)×135.6(H) mm
Bezel Opening 219.96(W)×138.6(H) mm
Outline Size 236(W)×156.8(H) ×9.9(D) mm
Brightness 500 cd/m² (Typ.)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)
Best View on -
Display Colors 16.2M 50% NTSC
Frequency 60Hz
Weight 500g (Typ.)
Surface Antiglare
Contrast Ratio 800:1 (Typ.) (TM)
Display Mode TN, Normally White, Transmissive
Response Time 8/22 (Typ.)(Tr/Td)
Lamp Type WLED , 50K hours , With LED Driver
Touch Screen Without
Application Industrial
Signal Interface LVDS (1 ch, 8-bit) , 20 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Features:

The Kyocera LCD Display boasts a brightness of 500 cd/m², which makes it easy to view in any lighting conditions. The display has a resolution of 1280×800, providing clear and crisp images that are easy to read and understand. This makes it a great choice for use in a variety of industrial settings, from factories to warehouses and beyond.

One of the standout features of the Kyocera LCD Display is its LED lifetime of 50K hours. This means that the display is built to last, providing reliable performance over an extended period of time. This makes it a great choice for use in industrial settings where downtime can be costly.

In addition to its impressive performance specs, the Kyocera LCD Display is also designed to withstand harsh environments. With a storage temperature range of -30 ~80 °C, this display is built to withstand extreme temperatures and humidity levels, ensuring reliable performance even in the toughest conditions.

Overall, if you're looking for a high-quality TFT module for use in industrial touch screen monitors or industrial TFT displays, the Kyocera LCD Display is an excellent choice. With its impressive performance specs and rugged design, this display is built to provide reliable performance over an extended period of time, making it a smart investment for any industrial setting.

​

Applications:

One potential use is as a vehicle LCD display. This display is durable and reliable, able to withstand the rigors of being used in a car, truck, or other vehicle. It also offers high-quality visuals, making it easy to read important information, such as speed, fuel levels, and more.

In addition to vehicle use, our LCD display is ideal for a range of other applications. For example, it can be used in medical devices, providing clear visuals that are essential for accurate diagnosis and treatment. It can also be used in industrial settings, where it can display information related to machinery, production, and more. Whatever your needs, Kyocera is here to help you find the right LCD display for your business.

Support and Services:

Kyocera offers technical support and services for their LCD Display products to ensure optimal performance and functionality. These services include:

  • Expert assistance with product selection and customization
  • Installation and configuration support
  • Onsite repair and maintenance services
  • Remote technical support
  • Software and firmware updates
  • Training and education resources for users

Our goal is to provide our customers with the highest level of satisfaction by offering reliable and efficient technical support and services.

Packing and Shipping:

Product Packaging:

  • 1 Kyocera LCD Display
  • 1 User Manual
  • Mounting hardware

Shipping:

  • Shipping Method: UPS, FEDED, DHL
  • Expected Delivery Time: 3-5 business days
  • Tracking Number: Provided
