2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface
2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface
2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface
2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface
2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface
2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface
2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface
2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface
Specifications
Brand Name :
Adia
Model Number :
QCG20QV996_A0
Certification :
RoHS
Place of Origin :
china
MOQ :
10pcs
Price :
USD 4.8-5.5/ PCS
Payment Terms :
T/T
Supply Ability :
1k/m
Delivery Time :
20-25
Packaging Details :
50cm*50cm*60cm
LCD Size :
2.0inch
Panel Type :
IPS
Display Mode :
Normally black,Transmissive
Display Number of Colors :
262K
Viewing Direction :
ALL
Contrast Ratio :
1000
Module Size :
34.60(W ) x 47.83(L) x2.1(T)mm
Driver IC :
ST7789
Description

2.0 inch IPS 240 * 320 3/4 SPI+RGB/MCU interface 2.0 inch TFT capacitive touch screen

Product Overview

1.1 Description
The QCG20QV996_A0 is is acolor active matrix TFT-LCD Modelusing amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. It is a transmissive type display operating in the normal black. ThisTFT-LCDhas a 2.0inch diagonally measured active area with 240horizontalby320vertical pixel array. Each pixel is divided into Red, , Green, Bluedots which are arranged in vertical stripe and this panel can display 262K colors.
1.2 Feature
-0.8t Glass(Single)
-Module Design
-RoHS Compliant
-TFT Interface: 8Bit MCU Interface
1.3 Application
-Industrial control, instrumentation, smart home appliances, smart homes, mobile phones, and other display terminals.

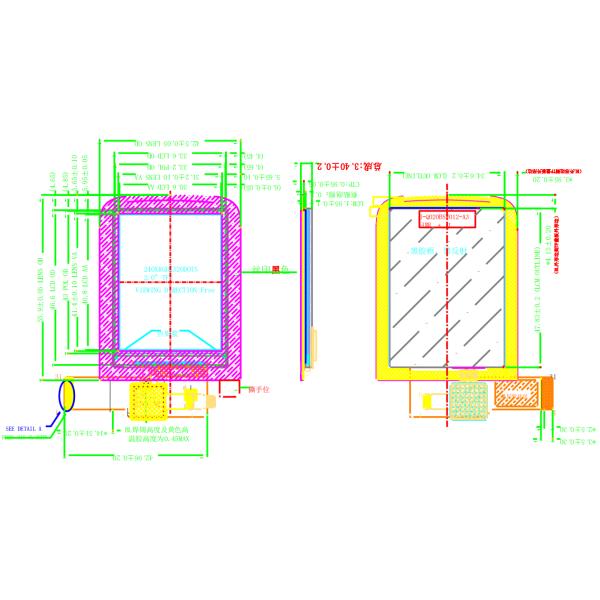

Product Size

2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface

General Specifications

No.

Ltem

Specification

 Unit Remark
1 LCD Size 2.0 inch -
2 Panel TYpe IPS TFT Capacitive Touch Screen - -
3 Resolution 240 x (RGB) x 320 pixel -
4 Display Mode IPS/ Transmissive / Normally Black - -
5 Display Number of Colors 262K color - -
6 Viewing Direction All (°) Note
7
Contrast Ratio
 1000 - -
8
Luminance
-(TYP)
cd/m2
-
9 Module Size
34.60(W ) x 47.83(L) x2.1(T)
 mm Note
10 Active Area
30.6(W) x 40.8(L)
 mm Note
11 Pixel Pitch
0.1275(W ) x 0.1275(L)
 mm -
12 Back Light White LED*3 - -
13 Driver IC
ST7789
 - -
14 Driver IC RAM Size
240x24x320
 bit -
15 Touch Screen Size 42.5(W ) x 55.9(L) x0.95(T) mm -

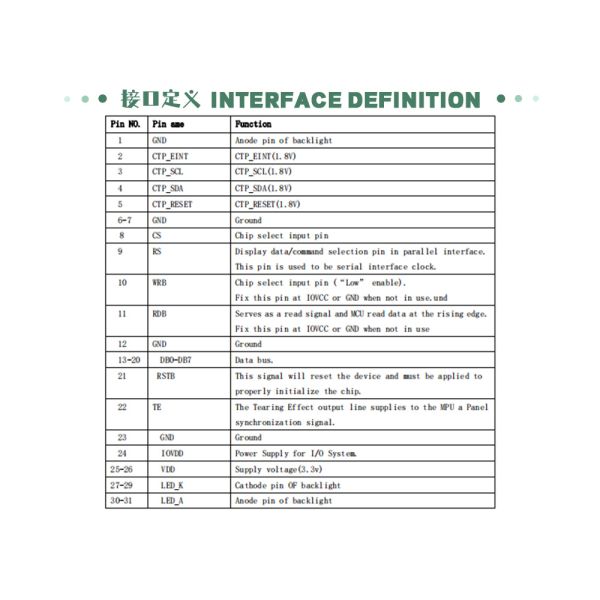

16 Interface
3/4SPI+ RGB/MCU
- -
17 Operating Temperature -20~60 ℃ -
18 Storage Temperature -30~70 ℃ -

Product Details

2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface

2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface

2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface

2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface

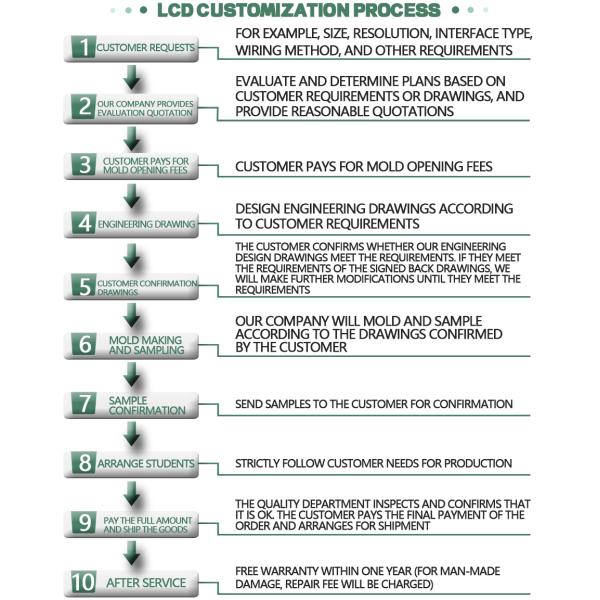

Contact us for customization

2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface

2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface

Our factory

2.0 Inch TFT Capacitive Touch Screen IPS 240 * 320 3/4 SPI+RGB/MCU Interface

FAQ

Q1.What is your product range?

A1: We are 12 years of experience manufacturing TFT LCD and touch screen.

>0.96" to 32" TFT LCD Module;

>Bar type LCD screen up to 48 inch;

>High brightness LCD panel custom;

>Capacitive touch screen up to 55"

>4 wire 5 wire resistive touch screen;

>One-step solution TFT LCD assemble with touch screen.

Q2.Can you custom the LCD or touch screen for me?

A2: Yes we can provide the custom services.

>For the LCD display,backlight brightness and FPC cable can be customized;

>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.

>NRE cost will be refunded after the total quantity reaches 1K pcs.

Q3.Which applications your products are mainly used for?

A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.

Q4.What's the delivery time?

A4: >For samples order, 1-2weeks;

>For mass ordres,4-6weeks.

Q5.Do you provide free samples?

A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
