Specifications
Brand Name :
Innolux
Model Number :
AT043TN25-V.2
Certification :
RoHS
Place of Origin :
china
MOQ :
10pcs
Price :
USD 11-14.50/ PCS
Supply Ability :
1k/m
Delivery Time :
15-22
Packaging Details :
535(L)*370(W)*265(H)
LCD size :
4.3inch(Diagonal)
Driver element :
a-Si TFT active matrix
Resolution :
480*3(RGB)*272
Display mode :
Normally White,Transmissive
Module size :
105.5(W) ×67.2(H) ×2.9(D) mm
Surface treatment :
Anti-Glare
Color arrangement :
RGB-stripe
Drive IC :
ST7735S
colour :
gray
Operating temperature range :
-20℃~70℃
Description

480*272 Anti Glare TFT LCD Displays For Industrial Or Game Console

4.3 Inch TFT LCD 480 * 272 Color Display Module TN Anti-Glare Can Be Used For Industrial Or Game Console

Product Overview

AT043TN25-V.2 is a 4.3 inch horizontal screen TFT-LCD color display with anti-glare surface treatment process. The working temperature range is - 20~70 ° C, and the storage temperature range is - 30~80 ° C. Full visual angle. FPC connector is used for module electronic interface, and the recommended model is "FH19SC-40S-0.5SH" made by HIROSE. Based on its characteristics, Panelook recommends that this model be applied to any industrial manufacturing or electronic game machine.

480*272 Anti Glare TFT LCD Displays For Industrial Or Game Console

General Specifications

NO. Item Specification Remark
1 LCD size 4.3inch(Diagonal)
2 Driver element a-Si TFT active matrix
3 Resolution 480*3(RGB)*272
4 Display mode Normally White,Transmissive
5 Dot pitch 0.066(W)*0.198(H)mm
6 Active area 95.04(W)*53.856(H)mm

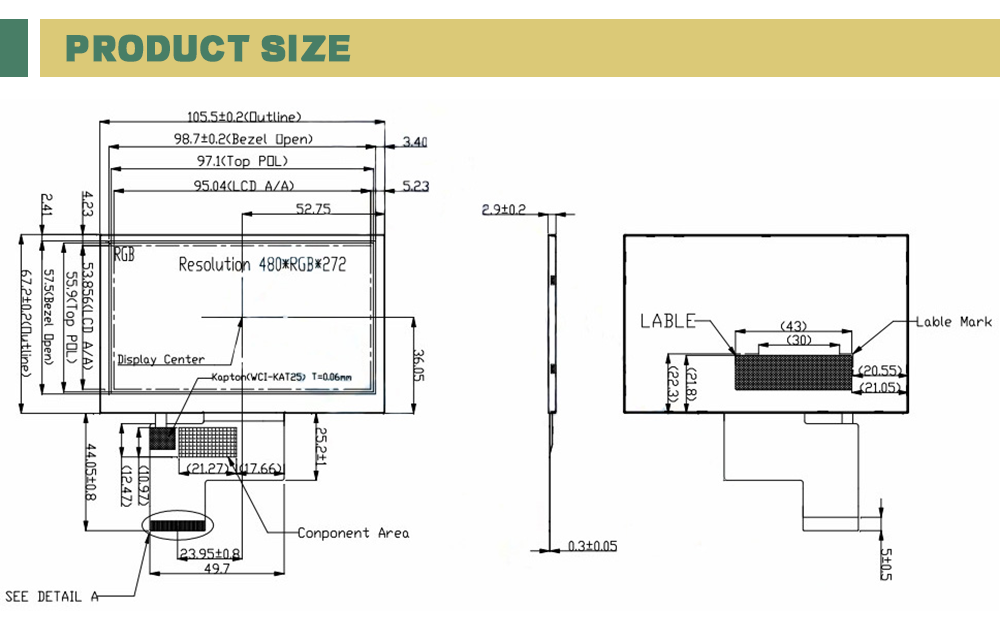

7 Module size 105.5(W) ×67.2(H) ×2.9(D) mm Note1
8 Surface treatment Anti-Glare
9 Color arrangement RGB-stripe
10 Drive IC ST7735S
11 colour gray
12 Operating temperature range -20℃~70℃
13 Storage temperature range -30℃~80℃
14 Interface Digital
15 Backlight Power consumption 0.558(Typ.)
16 Panel Power consumption 0.056W(Typ.)
17 Weight 45g(Typ.)

Product Details

480*272 Anti Glare TFT LCD Displays For Industrial Or Game Console

480*272 Anti Glare TFT LCD Displays For Industrial Or Game Console480*272 Anti Glare TFT LCD Displays For Industrial Or Game Console

480*272 Anti Glare TFT LCD Displays For Industrial Or Game Console
