Specifications
Brand Name :
Adia
Model Number :
YT040F004_v01
Certification :
RoHS
Place of Origin :
china
MOQ :
10pcs
Price :
USD 4.5-6/ PCS
Payment Terms :
T/T
Supply Ability :
1k/m
Delivery Time :
20-25
Packaging Details :
50cm*50cm*60cm
LCD Size :
4.0inch
LCD display mode :
transmission-type
Membrane plate material :
TN
Polarization angle :
All（°）
Display color :
16.7M Colour
Thickness :
1.35（μm）
Operating temperature range :
-20°C~70°C
Storage temperature range :
-30°C~80°C
Drive IC :
TBD
Description

4inch TN TFT LCD 480RGB * 800 MIPI interface for various mini LED projectors

Product Overview

1.1 Description

YT040F004_v01 the model LCD module is a 4-inch TN TFT LCD with a resolution of 480RGB * 800 MIPI interface, which is professionally applied to various mini LED projectors.

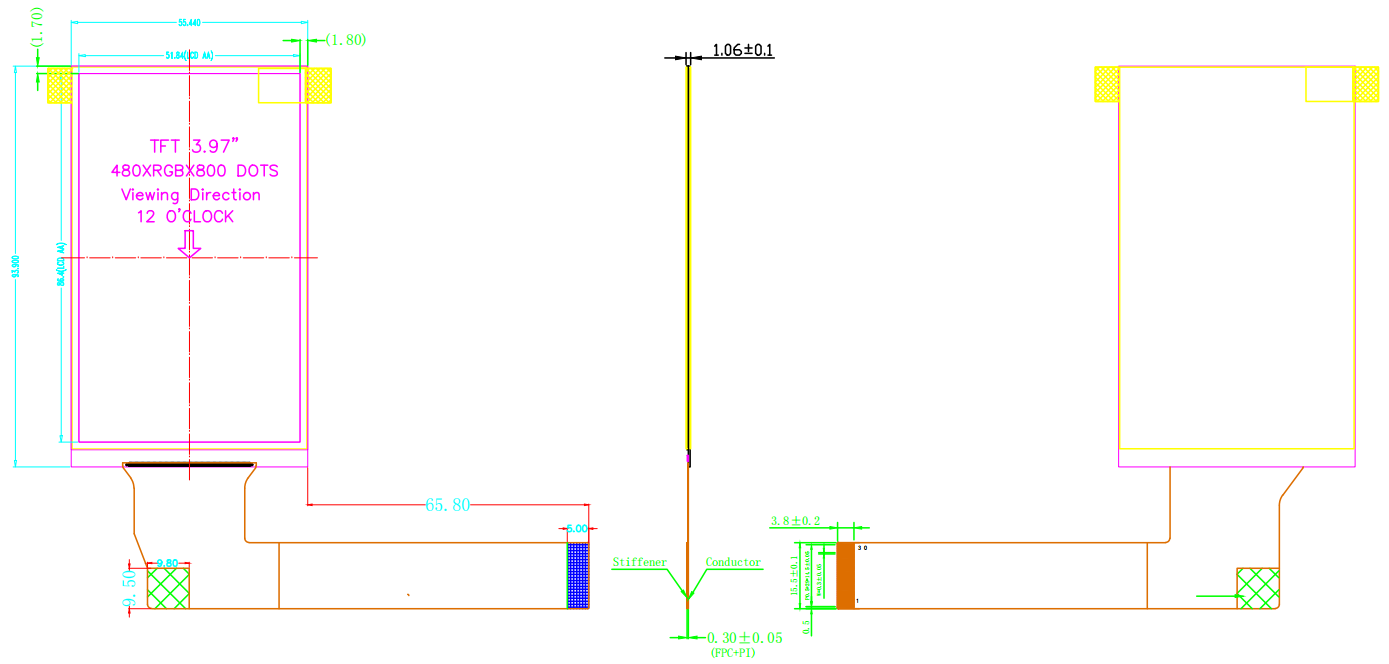

Product Size

4inch TN TFT LCD Displays RGB 480 * 800 MIPI Interface For Various Mini LED Projectors

General Specifications

No.

Ltem

Specification

 Unit Remark
1 LCD Size 4.0 inch -
2 Panel TYpe TN - -
3 Resolution 480 x (RGB) x 800 pixel -
4 Display Mode TFT transmission LCD - -
5 Display Number of Colors 16.7M color - -
6 Viewing Direction 12 O'clock - Note
7 Operating Voltage VCC=2.8V；LOVCC=1.8V - -
8 Central coordinate X=0.30, Y=0.32 mm -
9 Module Size 55.44(W ) x 93.90(L) x1.06(T) mm Note
10 Active Area 51.84(W) x 86.4(L) mm Note
11 Pixel Pitch 0.051(W ) x 0.153(L) mm -
12 Weight TBD(TYP) g -
13 Driver IC TBD - -
14 Driver IC RAM Size 480x24x800 bit -
15
UNMARKER TOLERANCE
±0.20
 mm -
16 Interface MIPI - -
17 Operating Temperature -20~70 ℃ -
18 Storage Temperature -30~80 ℃ -

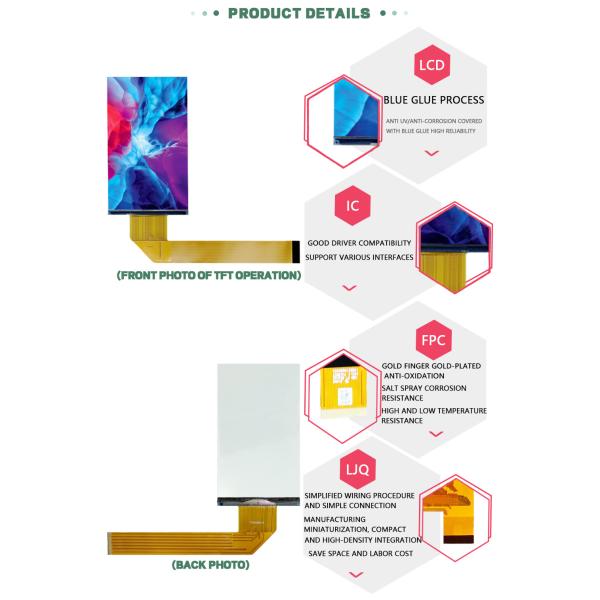

Product Details

4inch TN TFT LCD Displays RGB 480 * 800 MIPI Interface For Various Mini LED Projectors4inch TN TFT LCD Displays RGB 480 * 800 MIPI Interface For Various Mini LED Projectors

Our strengths

4inch TN TFT LCD Displays RGB 480 * 800 MIPI Interface For Various Mini LED Projectors

Our factory

4inch TN TFT LCD Displays RGB 480 * 800 MIPI Interface For Various Mini LED Projectors

FAQ

Q1.What is your product range?

A1: We are 12 years of experience manufacturing TFT LCD and touch screen.

>0.96" to 32" TFT LCD Module;

>Bar type LCD screen up to 48 inch;

>High brightness LCD panel custom;

>Capacitive touch screen up to 55"

>4 wire 5 wire resistive touch screen;

>One-step solution TFT LCD assemble with touch screen.

Q2.Can you custom the LCD or touch screen for me?

A2: Yes we can provide the custom services.

>For the LCD display,backlight brightness and FPC cable can be customized;

>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.

>NRE cost will be refunded after the total quantity reaches 1K pcs.

Q3.Which applications your products are mainly used for?

A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.

Q4.What's the delivery time?

A4: >For samples order, 1-2weeks;

>For mass ordres,4-6weeks.

Q5.Do you provide free samples?

A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
