Specifications
Brand Name :
Adia
Model Number :
YT030K001_V01
Certification :
RoHS
Place of Origin :
China
MOQ :
10pcs
Price :
USD 19-20.5/ PCS
Payment Terms :
T/T
Supply Ability :
1k/m
Delivery Time :
20-25
Packaging Details :
50cm*50cm*60cm
LCD Size :
3.0inch
Display Mode :
Normally white,Transflective
Module Size :
43.08(W ) x 73.25(L) x2.85(T)mm
Active Area :
36.72(W) x 61.2(L)mm
Pixel Pitch :
0.153(W ) x 0.153（L）mm
Driver IC :
ILI9327C
Operating Temperature :
-20~70°C
Interface :
SPI/MCU/16BIT、18BIT RGB
Description

3.0 inch sun readable, semi transparent, and semi reflective TFT LCD 240 * 400 resolution with multiple interfaces

Product Overview

1.1 Description
The YT030K001 is a Transflective type color active matrix liquid crystal display (LCD) , support 240XRGBX400 dot-matrix . The YT030K001 is intended to support applications where low power are critical factors and graphic displays are important.
1.2 Feature
-0.5t Glass(Single)
-Module Design
-RoHS Compliant
-TFT Interface:SPI/MCU/RGB
1.3 Application
-Suitable for outdoor handheld detectors, medical instruments, visual doorbells, industrial control and other terminal display screens.

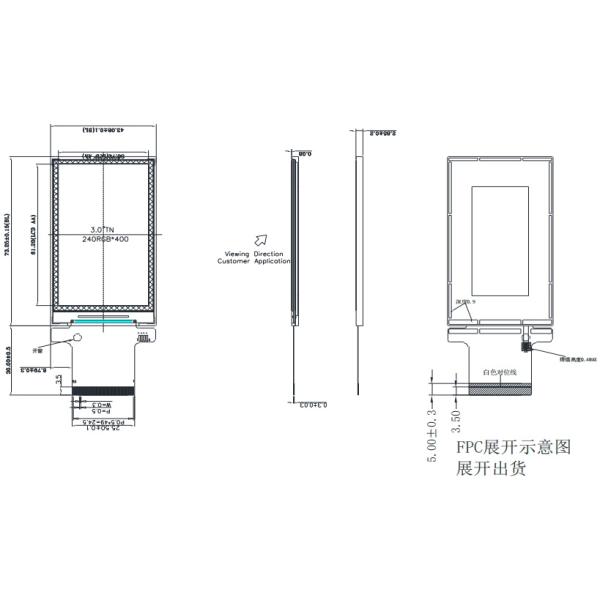

Product Size

3.0 Inch Sunlight Readable Semi Transparent Semi Reflective TFT LCD With 240 * 400 Resolution And Multiple Interfaces

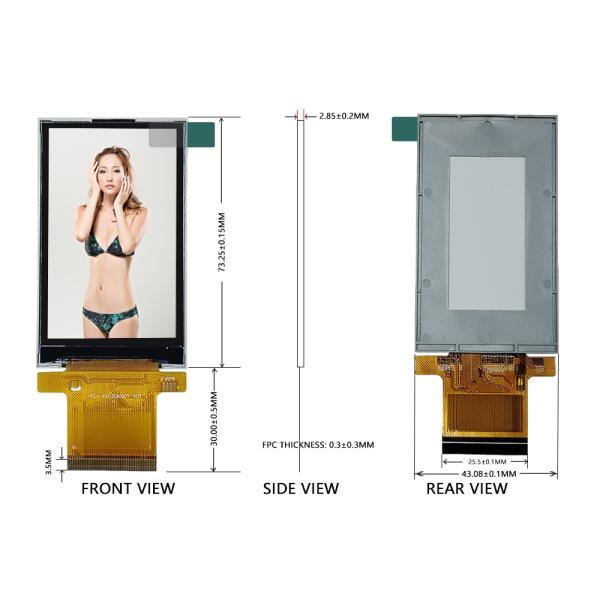

Product Three Dimensional View

3.0 Inch Sunlight Readable Semi Transparent Semi Reflective TFT LCD With 240 * 400 Resolution And Multiple Interfaces

General specifications

No. Item Specification Unit
1
LCD Size
 3.0 inch
2
Panel Type
Normally White,Transflective
 -
3
Resolution
240x (RGB) x 400
pixel
4
Display Working Voltage Range
1.8~3.3
 V
5
Display Number of Colors
262K
 -
6
Viewing Direction
11 O’ clock(Gray scale inversion)/
5 O’ clock(Customer Application Vision)
 -
7
Contrast Ratio
 1000:1 -
8
Luminance
300
cd/m²
9
Module Size
43.08(W) x 73.25(L) x2.85(T)
 mm
10
Active Area
36.72(W) x 61.2(L)
 mm
11
Pixel Pitch
0.153(W) x 0.153(L)
 mm
12
Driver IC
ILI9327C
 -
13
Module Mass
13.49
 g
14
Driver IC RAM Size
240x24x400
bit
15
Backlight Unit
4 LEDs White
 -
16
Interface
SPI/8BIT,9BIT,16BIT 18BIT MCU/
16BIT,18BIT RGB
-
17
Operating Temperature
-20~70
℃
18
Storage Temperature
 -30~85
℃

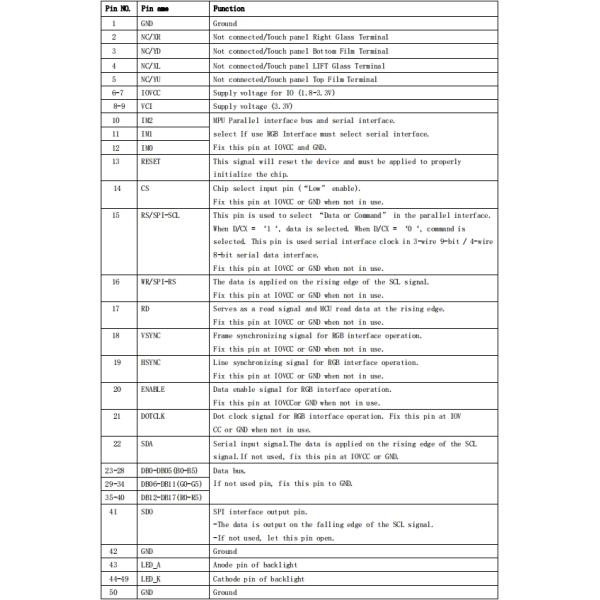

Interface definition

3.0 Inch Sunlight Readable Semi Transparent Semi Reflective TFT LCD With 240 * 400 Resolution And Multiple Interfaces

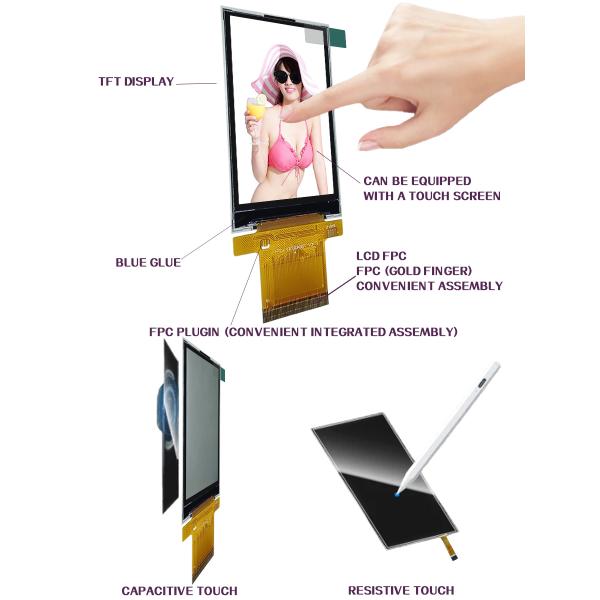

Product Details

3.0 Inch Sunlight Readable Semi Transparent Semi Reflective TFT LCD With 240 * 400 Resolution And Multiple Interfaces

3.0 Inch Sunlight Readable Semi Transparent Semi Reflective TFT LCD With 240 * 400 Resolution And Multiple Interfaces

3.0 Inch Sunlight Readable Semi Transparent Semi Reflective TFT LCD With 240 * 400 Resolution And Multiple Interfaces

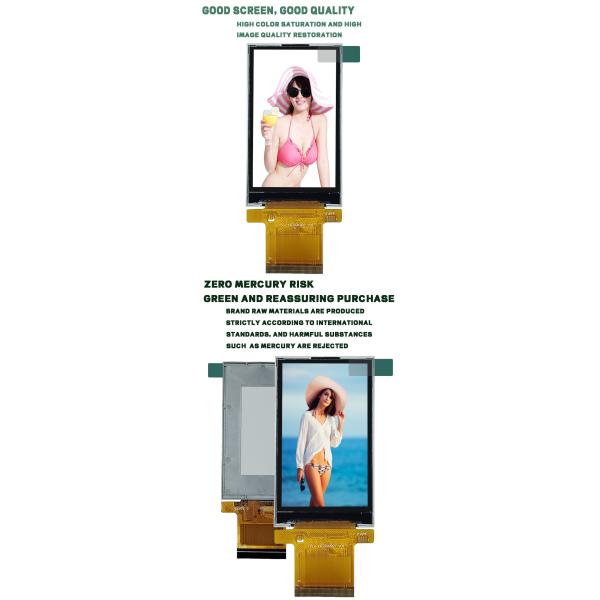

Our strengths

3.0 Inch Sunlight Readable Semi Transparent Semi Reflective TFT LCD With 240 * 400 Resolution And Multiple Interfaces

Our factory

3.0 Inch Sunlight Readable Semi Transparent Semi Reflective TFT LCD With 240 * 400 Resolution And Multiple Interfaces

FAQ

Q1.What is your product range?

A1: We are 12 years of experience manufacturing TFT LCD and touch screen.

>0.96" to 32" TFT LCD Module;

>Bar type LCD screen up to 48 inch;

>High brightness LCD panel custom;

>Capacitive touch screen up to 55"

>4 wire 5 wire resistive touch screen;

>One-step solution TFT LCD assemble with touch screen.

Q2.Can you custom the LCD or touch screen for me?

A2: Yes we can provide the custom services.

>For the LCD display,backlight brightness and FPC cable can be customized;

>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.

>NRE cost will be refunded after the total quantity reaches 1K pcs.

Q3.Which applications your products are mainly used for?

A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.

Q4.What's the delivery time?

A4: >For samples order, 1-2weeks;

>For mass ordres,4-6weeks.

Q5.Do you provide free samples?

A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
