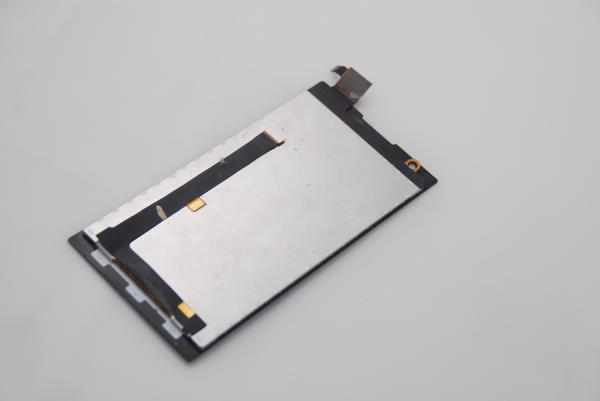

St7701s Driver 5 Inch LCD Screen , 480*854 TFT Display Panel
St7701s Driver 5 Inch LCD Screen , 480*854 TFT Display Panel
St7701s Driver 5 Inch LCD Screen , 480*854 TFT Display Panel
St7701s Driver 5 Inch LCD Screen , 480*854 TFT Display Panel
St7701s Driver 5 Inch LCD Screen , 480*854 TFT Display Panel
St7701s Driver 5 Inch LCD Screen , 480*854 TFT Display Panel
St7701s Driver 5 Inch LCD Screen , 480*854 TFT Display Panel
St7701s Driver 5 Inch LCD Screen , 480*854 TFT Display Panel
St7701s Driver 5 Inch LCD Screen , 480*854 TFT Display Panel
St7701s Driver 5 Inch LCD Screen , 480*854 TFT Display Panel
St7701s Driver 5 Inch LCD Screen , 480*854 TFT Display Panel
St7701s Driver 5 Inch LCD Screen , 480*854 TFT Display Panel
Specifications
Brand Name :
adia
Model Number :
YT050B004
Certification :
RoHS
Place of Origin :
china
MOQ :
10pcs
Price :
USD 13-15/ PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1kk/m
Delivery Time :
20-25
Packaging Details :
50cm*50cm*60cm
Size :
5.0
Display mode :
Normally Black
Display colors :
16.7M
Pixel arrangement :
RGB Vertical stripe
Transmittance :
5.0%
Color Gamut :
60
Response Time :
30ms(max)
Driving Method :
dot
Description

5.0inch LCD Display Fwvga 480*854 LCD Module with Mipi Dsi Interface St7701s Driver IC

The YT050B004 is a color active matrix TFT-LCD panel using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. It is a transmissive type display operating in the normal white. This TFT-LCD Cell has a 5.0 inch diagonally measured active area with HD resolutions (720 horizontal by 1280 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripe and this panel can display 16.7M colors.

General Specifications

NO. Item Specification Unit Remark
1 LCD Size 5.0 inch diagonal inch -
2 Panel Type IPS - -
3 Resolution 480x (RGB) x 854 pixel -
4 Display Mode Normally black,Transmissive - -
5 Display Number of Colors 16.7M - Note
6 Viewing Direction ALL View - -
7 Contrast Ratio 900(min) - -
8 Luminance 350(TYP) cd/m2 Note
9 Module Size 67.00(W) ×121.20( L) ×2.36(T) mm Note
10 Active Area 63.26( W) × 117.72(L) mm -
11 Pixel Pitch 0.0807(W ) x 0.0807(L) mm -
12 Weight - g -
13 Driver IC ST7701S - -
14 Driver IC RAM Size RAMLess bit -
15 Light Source 12LEDs White - -
16 Interface MIPI - -
17 Operating Temperature -20~70 ºC -
18 Storage Temperature -30~80 ºC -

St7701s Driver 5 Inch LCD Screen , 480*854 TFT Display Panel
