262K Color Touch Screen TFT LCD , 2.4 Inch SPI TFT Display
262K Color Touch Screen TFT LCD , 2.4 Inch SPI TFT Display
262K Color Touch Screen TFT LCD , 2.4 Inch SPI TFT Display
262K Color Touch Screen TFT LCD , 2.4 Inch SPI TFT Display
262K Color Touch Screen TFT LCD , 2.4 Inch SPI TFT Display
262K Color Touch Screen TFT LCD , 2.4 Inch SPI TFT Display
262K Color Touch Screen TFT LCD , 2.4 Inch SPI TFT Display
262K Color Touch Screen TFT LCD , 2.4 Inch SPI TFT Display
Specifications
Brand Name :
InnoLux
Model Number :
YT024C021
Certification :
RoHS
Place of Origin :
china
MOQ :
10pcs
Price :
USD 3-3.5/ PCS
Delivery Time :
20-25
Packaging Details :
50cm*50cm*60cm
Size :
2.4 inch
Resolution :
240(horizontal)*320(Vertical)
Interface :
3-Line/4-Line
Color Depth :
262K/65K
Pixel pitch (um) :
51 x 153
Pixel Configuration :
R.G.B. Vertical Stripe
Response Time (by Quick) :
30ms
Transmittance :
5.0%
Description

2.4 inch TFT LCD Display IC ST7789V with SPI Interface Custom lcd module

YT024C021 is a color active matrix thin film transistor (TFT) liquid crystal display without polarizer. This model is composed of amorphous silicon TFT as a switching device. It is a transmissive type display operating in the normally white mode.
This TFT LCD has a 2.4-inch diagonally measured active display area with 240 x 320 dot (240 horizontal by 320 vertical pixel) resolution. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripes.

Features


1.0.5t Glass
2.Thin and light weight
3.Low Power consumption, High trans, High CR, Wide view angle
4.RoHS Compliant

Application

Adiadisplay modules had been widely used in all kinds of industries,like smart watch,smart bracelet,smart home,smart robots,smart furniture, car system, cummunication devices, tablet,POS devices,medical equipments, education devices, bike DVR,3D printer, industrial controller, security equipment,digital greeting card, recreation equipment etc...

General Specifications

NO. Item Specification Unit Remark
1 LCD Size 2.4 inch -
2 Panel Type T N - -
3 Resolution 240x (RGB) x 320 pixel -
4 Display Mode Normally White - -
5 Display Number of Colors 262K - Note
6 Viewing Direction 12'Clock - -
7 Contrast Ratio 250(min) - -
8 Luminance 300(TYP) cd/m2 Note
9 Module Size 42.72(W) ×60.26( L) ×2.3(T) mm Note
10 Active Area 36.72( W) × 48.96(L) mm -
11 Pixel Pitch 0.153(W ) x 0.153(L) mm -
12 Weight - g -
13 Driver IC ST7789V - -
14 Driver IC RAM Size 240 x24 x320 bit -
15 Light Source 4LEDs White - -
16 Interface 3Line/ 4-Line - -
17 Operating Temperature -20~70 ºC -
18 Storage Temperature -30~80 ºC -

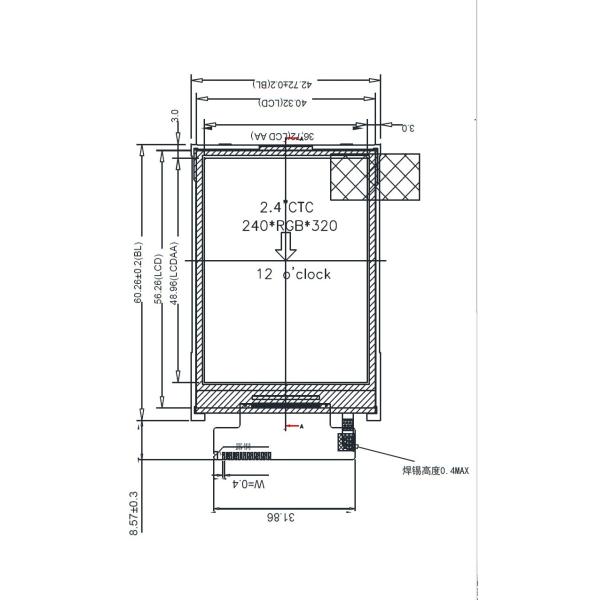

Outline Dimension (unit: mm)


262K Color Touch Screen TFT LCD , 2.4 Inch SPI TFT Display


Related Products

　 　 　 TFT-LCM(mm)　　 　 　 　 　
Size Model No. Resolution H V T Golden finger spacing Interface PIN IC
2.4 YT024HT012-V5 240x320 42.72 60.26 3.45 P0.8/W0.4 MCU8bit 37 ILI9341
2.4 YT024HT012-V6 240x320 42.72 60.26 3.45 P0.8/W0.4 MCU8bit 37 ILI9341
2.4 YT024T012 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bit 37 HX8347-G(T)
2.4 YT024T012-V1 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bit 37 HX8347-G(T)
2.4 YT024T012-V2 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bit 37 HX8347-G(T)
2.4 YT024T012-V3 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bit 37 HX8347-G(T)
2.4 YT024T012-V3-NEW 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bit 37 HX8347-G(T)
2.4 YT024TT012 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU8bit 37 HX8347-G(T)
2.4 YT024TT012-V1 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU8bit 37 HX8347-G(T)
2.4 YT024TT012-V4 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU8bit 37 HX8347-G(T)
2.4 YT024TT012-V5 240x320 42.72 60.26 3.40 P0.8/W0.4 MCUHIGH8bit 37 NV3029
2.4 YT024T012-V5 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bit 37 HX8347-G(T)
2.4 YT024T012-V6 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bit 37 HX8347-G(T)
2.4 YT024T012-V6-NEW 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bit 37 HX8347-G(T)
2.4 YT024T012-V16 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bit 37 HX8347I
2.4 YT024T012-V7 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bit 37 HX8347-G(T)
2.4 YT024T012-V8 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bit 37 HX8347-G(T)
2.4 YT024T012-V9 240x320 42.72 60.26 2.30 P0.8/W0.4 MCU8bit 37 ILI9341
2.4 YT024T012-V10 240x320 42.72 60.26 2.30 P0.8/W0.4 MCU8bit 37 HX8347-G(T)
2.4 YT024T012-V11 240x320 42.72 60.26 2.30 P0.8/W0.4 MCUHIGH8bit 37 NV3029
2.4 YT024T012-V12 240x320 42.72 60.26 2.30 P0.8/W0.4 MCU低8bit 37 NV3029
2.4 YT024T012-V13 240x320 42.72 60.26 2.30 P0.8/W0.4 MCUHIGH8bit 37 NV3029
2.4 YT024T012-V14 240x320 42.72 60.26 2.30 P0.8/W0.4 MCUHIGH8bit 37 NV3029
2.4 YT024T012-V15 240x320 42.72 60.26 2.30 P0.8/W0.4 MCUHIGH8bit 37 NV3029
2.4 YT024L012 240x320 42.72 60.26 1.85 P0.8/W0.4 MCUHIGH8bit 37 ILI9341
2.4 YT024LT012-V1 240x320 42.72 60.26 3.00 P0.8/W0.4 MCUHIGH8bit 37 ILI9341
2.4 YT024L012-V2 240x320 42.72 60.26 2.30 P0.8/W0.4 MCUHIGH8bit 37 R61526
2.4 YT024M012 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bit 37 HX8347-D
2.4 YT024M012-V1 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bit 37 ILI9338B
