Specifications
Brand Name :
BOE
Model Number :
YT024B001
Certification :
RoHS
Place of Origin :
china
MOQ :
10pcs
Price :
USD 4-4.5/ PCS
Delivery Time :
20-25
Packaging Details :
50cm*50cm*60cm
Size :
2.4 diagonal
Resolution :
240(horizontal)*320(Vertical)
Transmittance :
6.75%(Typ.);5.70%(min)
Color Gamut :
63.8%(Typ);55%(Min)
Display colors :
16.7M
Pixel driving element :
a-Si TFT
Sub Pixel Size(um) :
42.5(H)×3×127.5(V)
Pixel arrangement :
R.G.B. Vertical Stripe
Border(L/R/U/D) :
2.1/2.1/1.8/6.8
Response Time(ms) :
0(Typ);45(Max)
Description

350cd/M2 ST7789 Driver 2.4 TFT SPI 240x320 With 6Bit RGB Interface

The YT024B001 iis a color active matrix TFT LCD Q-Panel using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 2.35 inch diagonally measured active area with QVGA resolutions (240 horizontal by 320 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

General Specifications

NO. Item Specification Unit Remark
1 LCD Size 2.4 inch -
2 Panel Type IPS - -
3 Resolution 240x (RGB) x 320 pixel -
4 Display Mode Normally Black - -
5 Display Number of Colors 262K - Note
6 Viewing Direction All O'clock - -
7 Contrast Ratio 1000(TYP) - -
8 Luminance 350(TYP) cd/m2 Note
9 Module Size 42.72(W) ×60.26( L) ×2.3(T) mm Note
10 Active Area 36.72( W) × 48.96(L) mm -
11 Pixel Pitch 0.153(W ) x 0.153(L) mm -
12 Weight TBD g -
13 Driver IC ST7789V - -
14 Driver IC RAM Size RAMLess bit -
15 Light Source 4LEDs White - -
16 Interface SPI+18BIT-RGB - -
17 Operating Temperature -20~70 ºC -
18 Storage Temperature -30~80 ºC -

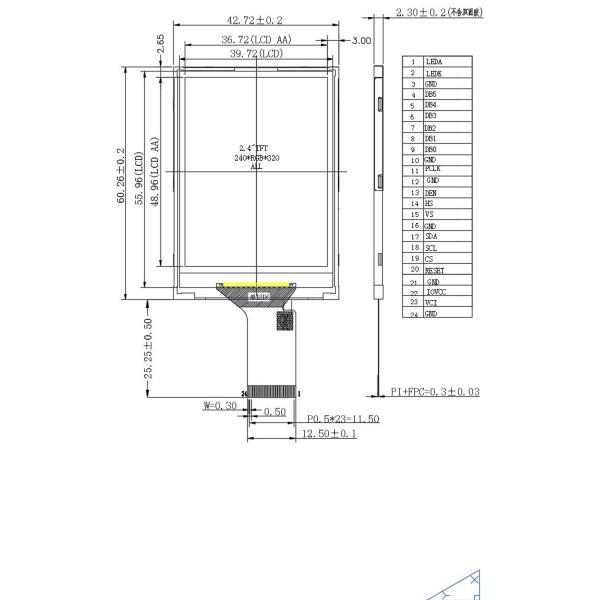

Outline Dimension (unit: mm)


350cd/M2 ST7789 Driver 2.4 TFT SPI 240x320 With 6Bit RGB Interface

Related Products

　 　 　 TFT-LCM(mm) 　 　 　 　 　 　
Size Model No. Resolution H V T Golden finger spacing Interface PIN IC
2.4 YT024HT008-V4 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU16bit 44 ILI9325C
2.4 YT024H008-V5 240x320 42.72 60.26 2.20 P0.8/W0.4 MCU16bit 44 ILI9325C
2.4 YT024HT008-V6 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU16bit 44 ILI9325C
2.4 YT024HT008-V7 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU16bit 44 ILI9325C
2.4 YT024HT-M-008 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU16bit 44 HX8347-D
2.4 YT024HT009 240x320 42.72 60.26 2.90 　 MCU16bit 37 ILI9325C
2.4 YT024HT009-V1 240x320 42.72 60.26 3.30 　 MCU16bit 37 ILI9325C
2.4 YT024HT009-V2 240x320 42.72 60.26 3.30 　 MCU16bit 37 ILI9325C
2.4 YT024HT-M-009 240x320 42.72 60.26 2.90 　 MCU16bit 37 HX8347-D
2.4 YT024HT011-V5 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU16bit 37 ILI9325C
2.4 YT024T011-V6 240x320 42.72 60.26 2.30 P0.8/W0.4 MCU16bit 37 HX8347-G(T)
2.4 YT024T011-V7 240x320 42.72 60.26 2.30 P0.8/W0.4 MCU16bit 37 HX8347I
2.4 YT024TT011 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU16bit 37 　
2.4 YT024TT011-V2 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU16bit 37 HX8347-G(T)
2.4 YT024H-M-011-V1 240x320 42.72 60.26 2.30 P0.8/W0.4 MCU16bit 37 HX8347-D
2.4 YT024HT-M-011 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU16bit 37 HX8347-D
2.4 YT024HT-M-011-V1 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU16bit 37 HX8347-D
2.4 YT024L011 240x320 42.72 60.26 1.85 P0.8/W0.4 MCU16bit 37 ILI9341
2.4 YT024L011-V1 240x320 42.72 60.26 1.85 P0.8/W0.4 MCU16bit 37 ILI9341
2.4 YT024H012 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bit 37 ILI9325C
2.4 YT024B012 240x320 42.72 60.26 2.30 P0.8/W0.4 MCU高8bit 37 ILI9341
2.4 YT024F012 240x320 42.72 60.26 2.30 P0.8/W0.4 MCU高8bit 37 ST7789S
2.4 YT024F012-V1 240x320 42.72 60.26 2.30 P0.8/W0.4 MCU高8bit 37 ILI9341
