2.8 Inch ST7789V IC 240*320 SPI TFT LCD Display For Smart Appliance
2.8 Inch ST7789V IC 240*320 SPI TFT LCD Display For Smart Appliance
2.8 Inch ST7789V IC 240*320 SPI TFT LCD Display For Smart Appliance
2.8 Inch ST7789V IC 240*320 SPI TFT LCD Display For Smart Appliance
2.8 Inch ST7789V IC 240*320 SPI TFT LCD Display For Smart Appliance
2.8 Inch ST7789V IC 240*320 SPI TFT LCD Display For Smart Appliance
2.8 Inch ST7789V IC 240*320 SPI TFT LCD Display For Smart Appliance
2.8 Inch ST7789V IC 240*320 SPI TFT LCD Display For Smart Appliance
Specifications
Brand Name :
InnoLux
Model Number :
L-280A75-C
Certification :
RoHS
Place of Origin :
china
MOQ :
10pcs
Price :
USD 3.5-4.5/ PCS
Delivery Time :
20-25
Packaging Details :
50cm*50cm*60cm
Size :
2.8 diagonal
Resolution :
240(horizontal)*320(Vertical)
Interface :
4-SPI
Connect type :
0.5mm Pitch FPC CONN(2.5) FRONT FLIP
Color Depth :
262K
Pixel driving element :
a-Si TFT
Sub Pixel Size :
0.06x 0.18
Pixel Configuration :
R.G.B. Vertical Stripe
Display Mode :
Normally Black, Transmissive
Viewing Direction :
12:00 O’clock
Description

2.8 Inch ST7789V IC 240*320 SPI TFT LCD Display For Smart Appliance

The L-280A75-C is a color active matrix TFT LCD Q-Panel using amorphous silicon TFT's (Thin Film ransistors) as an active switching devices. This module has a 2.8 inch diagonally measured active area with QVGA resolutions (240 horizontal by 320 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

Features


1.0.4TGlass
2.Thin and light weight
3.Low Power consumption, High trans, High CR, Wide view angle
4.RoHS Compliant

Application

Adiadisplay modules had been widely used in all kinds of industries,like smart watch,smart bracelet,smart home,smart robots,smart furniture, car system, cummunication devices, tablet,POS devices,medical equipments, education devices, bike DVR,3D printer, industrial controller, security equipment,digital greeting card, recreation equipment etc...

General Specifications

NO. Item Specification Unit Remark
1 LCD Size 2.8 inch -
2 Panel Type TN - -
3 Resolution 240x (RGB) x 320 pixel -
4 Display Mode Normally White - -
5 Display Number of Colors 262K - Note
6 Viewing Direction 12:00 O'clock - -
7 Contrast Ratio 500(TYP) - -
8 Luminance 300(TYP) cd/m2 Note
9 Module Size 50(W) ×69.2( L) ×2.32(T) mm Note
10 Active Area 43.2( W) × 57.6(L) mm -
11 Pixel Pitch 0.06(W ) x 0.18(L) mm -
12 Weight - g -
13 Driver IC ST7789V - -
14 Driver IC RAM Size RAMLess bit -
15 Light Source 4LEDs White - -
16 Interface 4-SPI - -
17 Operating Temperature -20~70 ºC -
18 Storage Temperature -30~80 ºC -

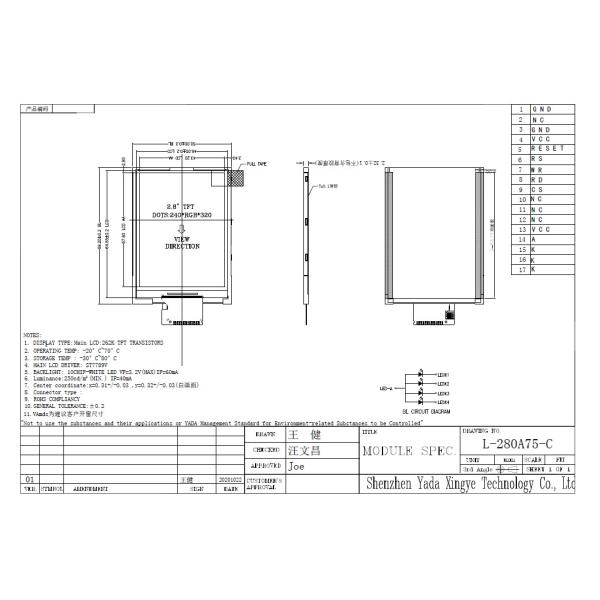

Outline Dimension (unit: mm)


2.8 Inch ST7789V IC 240*320 SPI TFT LCD Display For Smart Appliance

Related Products

　 　 　 TFT-LCM(MM)　　 　 　 　 　
Size Model No. Resolution H V T Golden finger spacing Interface PIN IC
20 YT028TT010 240x320 50.00 69.20 3.40 P0.8/W0.4 MCU16bit 37 HX8347G
21 YT028TT011 240x320 50.00 69.20 3.40 P1.0/W0.5 MCU16bit 37 HX8347G
22 YT028T012 240x320 50.00 69.20 2.30 P0.8/W0.4 MCU8/16bit 40 HX8347G
23 YT028C012 240x320 50.00 69.20 2.50 P0.8/W0.4 MCU8/16bit 40 ILI9341
24 YT028T012-V1 240x320 50.00 69.20 2.30 P0.8/W0.4 MCU低8位 40 HX8347G
25 YT028T013 240x320 50.00 69.20 2.20 P1.0/W0.5 MCU8bit 37 HX8347G
　 YT028H013 240x320 50.00 69.20 2.25 P1.0/W0.5 MCU8bit 37 ILI9341
26 YT028T014 240x320 47.80 68.20 1.95 P0.8/W0.4 MCU16bit 37 ILI9341
27 YT028TT015 240x320 50.00 69.20 3.40 P1.0/W0.5 MCU8bit 37 HX8347G
28 YT028H016 240x320 50.00 69.20 2.05 P0.8/W0.4 MCU8 42 ILI9341
28 YT028H016-NEW 240x320 50.00 69.20 2.05 P0.8/W0.4 MCU8 42 ILI9341
29 YT028H016-V1 240x320 50.00 69.20 2.05 P0.8/W0.4 MCU8/16bit 42 HX8347G
30 YT028HT016 240x320 50.00 69.20 3.25 P0.8/W0.4 MCU16bit 42 ILI9341
31 YT028HT016-V1 240x320 50.00 69.20 3.25 P0.8/W0.4 MCU8/16bit 42 HX8347G
32 YT028HT016-V2 240x320 50.00 69.20 3.25 P0.8/W0.4 MCU8/16bit 42 HX8347G
33 YT028TT017 240x320 50.00 69.20 3.45 P1.0/W0.5 MCU8bit 37 ILI9341
34 YT028TT018 240x320 50.00 69.20 3.45 P0.8/W0.4 MCU8bit 26 HX8347G
35 YT028TT018-V1 240x320 50.00 69.20 3.45 P0.8/W0.4 MCU8bit 26 ILI9341
36 YT028TT018-V2 240x320 50.00 69.20 3.45 P0.8/W0.4 MCU8bit 26 ILI9341
37 YT028TT019 240x320 50.00 69.20 3.45 P0.8/W0.4 MCU8bit 44 HX8347G
　 YT028HT020 240x320 50.00 69.20 3.45 P1.0/W0.5 MCU8bit 37 ILI9341
38 YT028TT020 240x320 50.00 69.20 3.45 P1.0/W0.5 MCU8bit 37 HX8347G
39 YT028TT020-V1 240x320 50.00 69.20 3.45 P1.0/W0.5 MCU8bit 37 HX8347G
40 YT028TT020-V2 240x320 50.00 69.20 3.45 P1.0/W0.5 MCU8bit 37 ILI9341
41 YT028TT020-V3 240x320 50.00 69.20 3.45 P1.0/W0.5 MCU8bit 37 ILI9341
40 YT028T020-V4 240x320 50.00 69.20 2.30 P1.0/W0.5 MCU16bit 37 ILI9341
42 YT028TT021 240x320 50.00 69.20 3.45 P1.0/W0.5 MCU8bit 37 ILI9341
43 YT028T022 240x320 50.00 69.20 2.20 P0.8/W0.4 MCU16bit 37 ILI9341
44 YT028TT023 240x320 50.00 69.20 3.40 P0.8/W0.4 MCU16bit 39 ILI9341
44 YT028TT023-V1 240x320 50.00 69.20 3.40 P0.8/W0.4 MCU低8bit 39 ILI9341
45 YT028C024 240x320 50.00 69.20 2.30 P0.8/W0.4 MCU16bit 41 ILI9341

Why Choose us:

1.Our company established in 2011, and have a long-term cooperation with many well-known company

2.We have a professional r&d team and technical support

3.We have a large number of spot inventory and we can ship delivery asap after payment

4.We are direct agent of these brands,ordering process simple and delivery time short

5.All screen ship from our company has long warranty and we have enough technical support can provide

after-sales service
