4.3inch Horizontal TFT LCD Panel With Resistive Capacitive Touch Screen
4.3inch Horizontal TFT LCD Panel With Resistive Capacitive Touch Screen
4.3inch Horizontal TFT LCD Panel With Resistive Capacitive Touch Screen
4.3inch Horizontal TFT LCD Panel With Resistive Capacitive Touch Screen
4.3inch Horizontal TFT LCD Panel With Resistive Capacitive Touch Screen
4.3inch Horizontal TFT LCD Panel With Resistive Capacitive Touch Screen
4.3inch Horizontal TFT LCD Panel With Resistive Capacitive Touch Screen
4.3inch Horizontal TFT LCD Panel With Resistive Capacitive Touch Screen
Specifications
Brand Name :
BOE
Model Number :
YT043B006
Certification :
RoHS
Place of Origin :
china
MOQ :
10pcs
Price :
USD 10.25-12/ PCS
Supply Ability :
1k/m
Delivery Time :
20-25
Packaging Details :
50cm*50cm*60cm
LCD size :
4.3inch
Panel Type :
a-Si TFT active matrix
Resolution :
480RGB*272
Display Mode :
Usually White,Transmissive
Light source shape :
Planarity
Type of light source :
10LEDS White
Membrane plate material :
IPS ALL o'clock
Display Color :
16.7M
Description

4.3inch Horizontal TFT LCD Panel With Resistive Capacitive Touch Screen

4.3inch IPS wide temperature YT043B006 resistive capacitive touch screen overview

The YT043B006 is a color active matrix Thin Film Transistor (TFT) Liquid Crystal Display (LCD) that uses amorphous silicon(a-Si) TFT as a switching device. This model is composed of a single 4.3 inches transmissive type main TFT-LCD panel. The resolution of the panel is 480x272 pixels and can display up to16.7M color.

Feature

-IPS type for main TFT-LCD panel
-Structure TFT+COG+FPC+BL+TP
-Full, Normal (Still), Partial, Sleep, Standby mode are available

YT043B006 General specifications

No. ltem specifications
1 LCD Size: 4.3inch

2

 Panel Type: a-Si TFT active matrix
3 Resolution: 480*RGB*272
4 Display Mode: Normally white, Transmissive
5 Display Number of Colors: 16.7M
6 Viewing Direction: ALL o'clock
7 Contrast Ratio: 1000
8 Luminance: 500(TYP)
9 Module Size: 105.42(W)*67.07(L)*2.8(T)mm
10 Active Area: 95.04(W)*53.86(L)mm
11 Pixel Pitch: 0.066(W)*3*0.198(L)mm
12 Weight: 39.6(TYP)
13 Light Source: 10LEDs White
14 Interface: 8080 16BIT/SPI/ 16BIT RGB
15 Operating Temperature: -20℃~70℃
16 Storage Temperature: -30℃~80℃

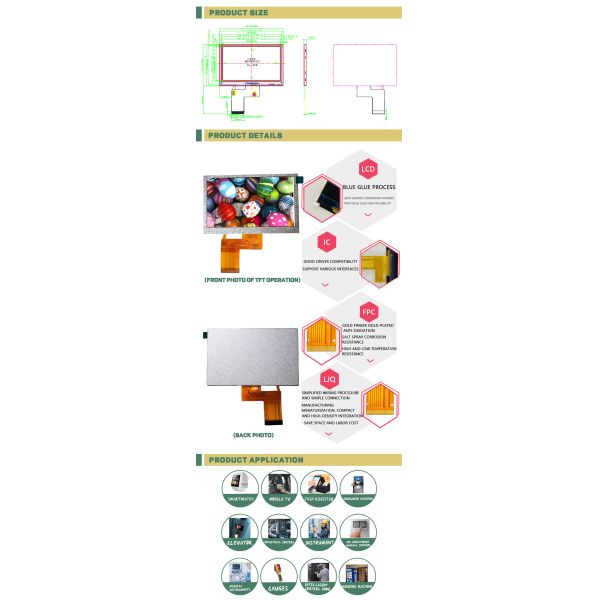

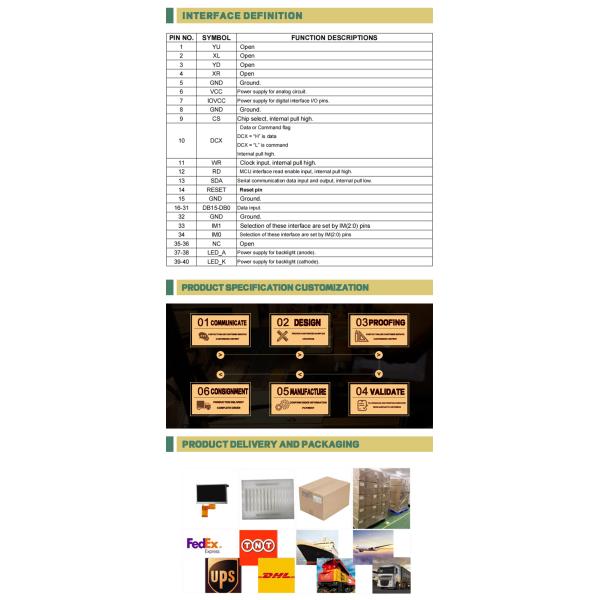

YT043B006 Product Details

4.3inch Horizontal TFT LCD Panel With Resistive Capacitive Touch Screen

4.3inch Horizontal TFT LCD Panel With Resistive Capacitive Touch Screen4.3inch Horizontal TFT LCD Panel With Resistive Capacitive Touch Screen

4.3inch Horizontal TFT LCD Panel With Resistive Capacitive Touch Screen

FAQ

Q1.What is your product range?

A1: We are 12 years of experience manufacturing TFT LCD and touch screen.

>0.96" to 32" TFT LCD Module;

>Bar type LCD screen up to 48 inch;

>High brightness LCD panel custom;

>Capacitive touch screen up to 55"

>4 wire 5 wire resistive touch screen;

>One-step solution TFT LCD assemble with touch screen.

Q2.Can you custom the LCD or touch screen for me?

A2: Yes we can provide the custom services.

>For the LCD display,backlight brightness and FPC cable can be customized;

>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.

>NRE cost will be refunded after the total quantity reaches 1K pcs.

Q3.Which applications your products are mainly used for?

A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.

Q4.What's the delivery time?

A4: >For samples order, 2-3weeks;

>For mass ordres,4-6weeks.

Q5.Do you provide free samples?

A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
