7inch LVDS Interface Industrial TFT Display With Capacitive Touch Screen
7inch LVDS Interface Industrial TFT Display With Capacitive Touch Screen
7inch LVDS Interface Industrial TFT Display With Capacitive Touch Screen
7inch LVDS Interface Industrial TFT Display With Capacitive Touch Screen
7inch LVDS Interface Industrial TFT Display With Capacitive Touch Screen
7inch LVDS Interface Industrial TFT Display With Capacitive Touch Screen
7inch LVDS Interface Industrial TFT Display With Capacitive Touch Screen
7inch LVDS Interface Industrial TFT Display With Capacitive Touch Screen
Specifications
Brand Name :
Adia
Model Number :
NJ070NA-23A
Certification :
RoHS
Place of Origin :
china
MOQ :
10pcs
Price :
USD 19.8-22/ PCS
Supply Ability :
1k/m
Delivery Time :
20-25
Packaging Details :
50cm*50cm*60cm
Size :
7.0inch TFT
display mode :
Transmissive
Type of light source :
LED
Light source shape :
Faceted
Display Color :
16.7M
Membrane plate material :
IPS
Film thickness :
0.13mm
Description

7inch LVDS Interface Industrial TFT Display With Capacitive Touch Screen

Overview of NJ070NA-23A (1024x600) 7-inch TFT LCD Module

The specification NJ070NA-23A is a 7 ”(1024x600) TFT Liquid Crystal, Display module with LED Backlight unit , 40 pin LVDS interface, normally white transmissive display mode. This module will be applied to Consumer Electronics(CE Application)

NJ070NA-23A General specifications

NO. ltem Specification
1 LCD Size 7.0inch(Diagonal)
2 Driver element a-Si TFT active matrix
3 Resolution 1024*3(RGB)*600
4 Display Mode Normally White, Transmissive
5 Pixel Size 0.1506(W)*0.1432(H)mm
6 Active Area 154.2144(W)*85.92(H)mm
7 Module Size 164.9(W)*100(H)*4.8(D)mm
8 Surface treatment Hard Coating
9 Color arrangement RGB-stripe
10 Interface LVDS
11 View direction(Gray Inversion) 6 O'clock
12 Backlight power consumption 2.62W (TYP.)
13 Panel power consumption 0.4W (TYP.), 0.6W (Max.)
14 Weight 135g (TYP.)
15 Source Driver IC EK79001AX
16 Gate Driver IC EK73215BCGA
17 Driving methods 1+2 dot

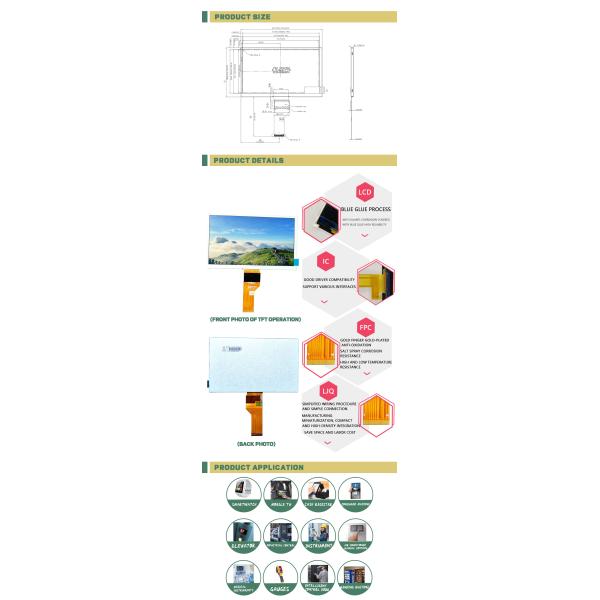

NJ070NA-23A Product Details

7inch LVDS Interface Industrial TFT Display With Capacitive Touch Screen

7inch LVDS Interface Industrial TFT Display With Capacitive Touch Screen7inch LVDS Interface Industrial TFT Display With Capacitive Touch Screen

7inch LVDS Interface Industrial TFT Display With Capacitive Touch Screen

FAQ

Q1.What is your product range?

A1: We are 12 years of experience manufacturing TFT LCD and touch screen.

>0.96" to 32" TFT LCD Module;

>Bar type LCD screen up to 48 inch;

>High brightness LCD panel custom;

>Capacitive touch screen up to 55"

>4 wire 5 wire resistive touch screen;

>One-step solution TFT LCD assemble with touch screen.

Q2.Can you custom the LCD or touch screen for me?

A2: Yes we can provide the custom services.

>For the LCD display,backlight brightness and FPC cable can be customized;

>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.

>NRE cost will be refunded after the total quantity reaches 1K pcs.

Q3.Which applications your products are mainly used for?

A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.

Q4.What's the delivery time?

A4: >For samples order, 2-3weeks;

>For mass ordres,4-6weeks.

Q5.Do you provide free samples?

A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.

General Precautions

P1: Safety
1. Liquid crystal is poisonous. Do not put it in your mouth. If liquid crystal touches your skin or clothes, wash it off immediately by using soap and water.
2.The temperature for use is no more than 80 C, otherwise, only promise the function is OK, but the quality may be changed.

P2: Handling
1. The LCD panel is plate glass. Do not subject the panel to mechanical shock or to excessive force on its surface.
2. The polarizer attached to the display is easily damaged. Please handle it carefully to avoid scratch or other damages.
3. To avoid contamination on the display surface, do not touch the module surface with bare hands.
4. Keep a space so that the LCD panels do not touch other components.
5. Put cover board such as acrylic board on the surface of LCD panel to protect panel from damages.
6. Transparent electrodes may be disconnected if you use the LCD panel under environmental conditions where the condensation of dew occurs.
7. Do not leave module in direct sunlight to avoid malfunction of the ICs.
P3:Static Electricity

1. Be sure to ground module before turning on power or operating module.
2. Do not apply voltage which exceeds the absolute maximum rating value.

P4: Storage

1. Store the module in a dark room where must keep at 25±10℃ and 65%RH or less.
2. Do not store the module in surroundings containing organic solvent or corrosive gas.
3. Store the module in an anti-electrostatic container or bag.

P5:Cleaning

1. Do not wipe the polarizer with dry cloth. It might cause scratch.
2. Only use a soft sloth with IPA to wipe the polarizer, other chemicals might permanent damage to the polarizer.
