3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen
3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen
3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen
3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen
3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen
3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen
3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen
3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen
3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen
3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen
Specifications
Brand Name :
Adia
Model Number :
YT035F014_V01
Certification :
RoHS
Place of Origin :
china
MOQ :
2pcs
Price :
USD 3.1-3.7/ PCS
Payment Terms :
T/T
Supply Ability :
1k/m
Delivery Time :
20-25
Packaging Details :
50cm*50cm*60cm
LCD Size :
3.5inch
LCD Type :
IPS TFT transistor
colour :
262K
interface :
8080 parallel port
Viewing Direction :
ALL
Drive IC :
ST7796U
luminance :
300cd/m²
Backlight type :
8 white LEDs
Description

3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen

Product Overview

1.1 Description
YT035F014 _V01 is an active matrix TFT-LCD model that uses amorphous silicon TFT (thin film transistor) as the active switching device. It is a transmissive display that operates in normal black color. The effective area of this TFT LCD display is measured diagonally at 3.5 inches, with an array of 320 horizontal by 480 vertical pixels. Each pixel is divided into vertically striped red, green, and blue dots, and the panel can display 262K million colors.
1.2 Feature
-Module Design
-RoHS Compliant
-TFT Interface: 8080 parallel port

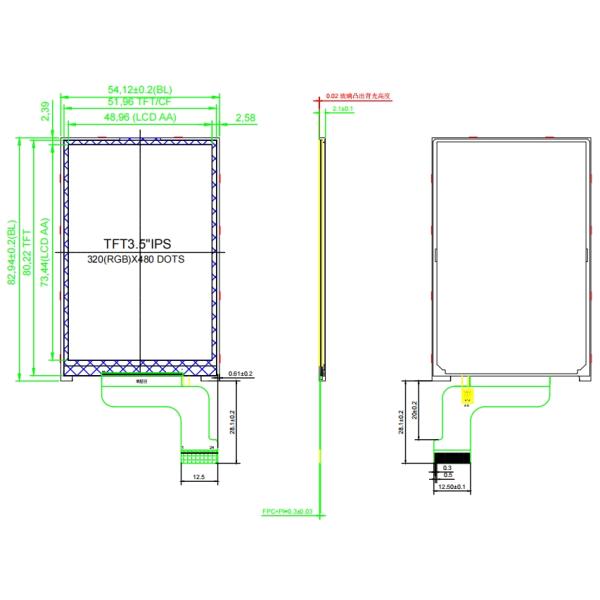

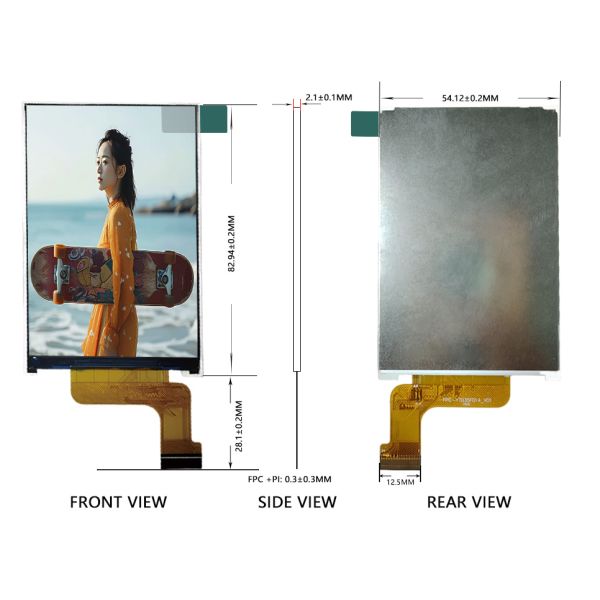

Product Size

3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen

General specifications

No. Item Specification Unit
1
LCD Size
 3.5 inch
2
Panel Type
IPS
 -
3
Resolution
320 x (RGB) x 480
pixel
4
Display Mode
Transmissive,Normal Black
 -
5
Display Number of Colors
262K
 -
6
Viewing Direction
ALL
 -
7
Contrast Ratio
 500 -
8
Luminance
300
cd/m2
9
Module Size
54.12(H) x 82.94(V) x2.1(D)
 mm
10
Active Area
48.96(H) x 73.44(V)
 mm
11
Pixel Pitch
0.145(H) x 0.145(V)
 mm
12
Weight
8
 g
13
Driver IC
ST7796U
 -
14
Driver IC RAM Size
320x24x480
bit
15
Light Source
8 LEDs White
 -
16
Interface
8080 parallel port
 -
17
Operating Temperature
-20~70
℃
18
Storage Temperature
 -30~80
℃

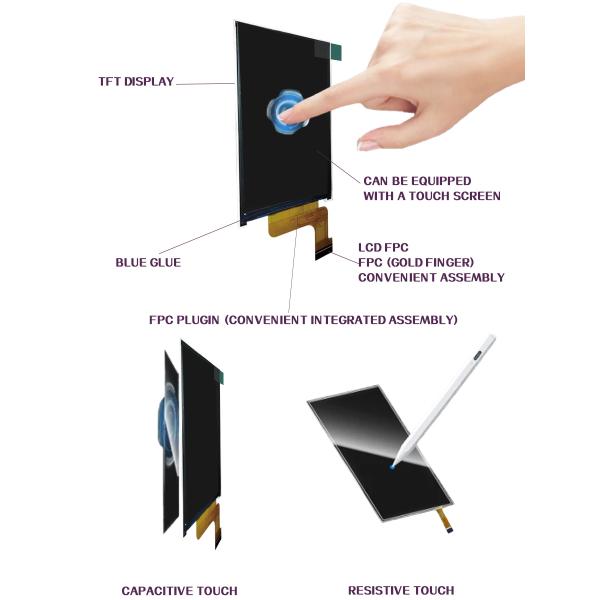

Product Details

3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen

3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen

Our factory

3.5-inch IPS display screen with high-definition resolution of 320 * 480 interface 8080 parallel port industrial control terminal display screen

FAQ

Q1.What is your product range?

A1: We are 12 years of experience manufacturing TFT LCD and touch screen.

>0.96" to 32" TFT LCD Module;

>Bar type LCD screen up to 48 inch;

>High brightness LCD panel custom;

>Capacitive touch screen up to 55"

>4 wire 5 wire resistive touch screen;

>One-step solution TFT LCD assemble with touch screen.

Q2.Can you custom the LCD or touch screen for me?

A2: Yes we can provide the custom services.

>For the LCD display,backlight brightness and FPC cable can be customized;

>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.

>NRE cost will be refunded after the total quantity reaches 1K pcs.

Q3.Which applications your products are mainly used for?

A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.

Q4.What's the delivery time?

A4: >For samples order, 1-2weeks;

>For mass ordres,4-6weeks.

Q5.Do you provide free samples?

A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.

Q6. Where can I get the datasheet, initialization code and other technical files ?

A6:Unfortunately, This can not Support upload/download the files for the time being, please contact with our sales.chat on Trade Manager or send me a email (dyh0707@foxmail.com), we will send the datasheet by mail.
