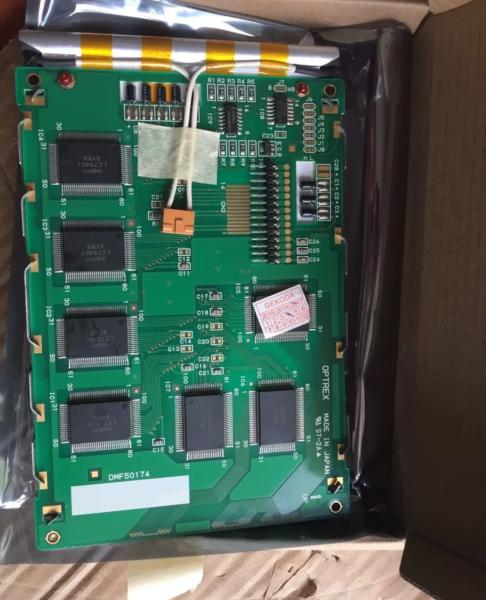

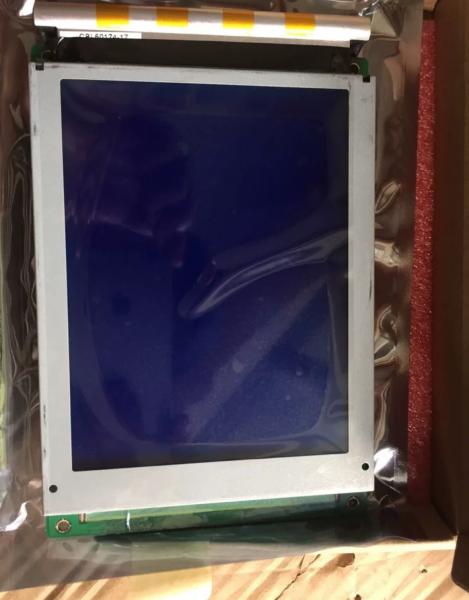

DMF5010NB-FW OPTREX 5.2 240×64  47PPI 400 cd/m² INDUSTRIAL LCD DISPLAY
DMF5010NB-FW OPTREX 5.2 240×64  47PPI 400 cd/m² INDUSTRIAL LCD DISPLAY
DMF5010NB-FW OPTREX 5.2 240×64  47PPI 400 cd/m² INDUSTRIAL LCD DISPLAY
DMF5010NB-FW OPTREX 5.2 240×64  47PPI 400 cd/m² INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
OPTREX
Model Number :
DMF5010NB-FW
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :
1-2DAYS
Packaging Details :
STANDARD PACKING
Brand :
OPTREX
Diagonal Size :
5.2"
Resolution :
240×64 47PPI
Luminance :
400 cd/m²
Viewing Angle :
50/50/35/50 (Typ.)(CR≥2)
Environment :
Operating Temperature: 10 ~ 40 °C ; Storage Temperature: -20 ~ 60 °C
Description

OPTREX DMF5010NB-FW Application Features

Basic Information : Brand Model Type Model Alias
DMF5010NB-FW STN-LCD , LCM DMF-5010NB-FW
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
10 ~ 40 °C -20 ~ 60 °C

OPTREX DMF5010NB-FW Mechanical Features

Panel Size : 5.2 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
240×64 Rectangle 0.53×0.53 mm 0.53×0.53 mm [47PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
127.2×33.9 mm 132.0×39.0 mm 200×66 mm 23.0 (Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle >3:1 (W : H) Landscape type
Other Features : Panel Cover Weight Surface
- 250g (Max.)

OPTREX DMF5010NB-FW Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
400 cd/m² (Min.) STN, Blue mode, Transmissive 7:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
50/50/35/50 (Typ.)(CR≥2) 6 o'clock 70/260 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
- Monochrome

OPTREX DMF5010NB-FW Interface Features

Signal Electrical : Current Input Voltage Input Consumption
8.2mA (Typ.) 5.0V (Typ.) -
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
1 pcs 20 pins

OPTREX DMF5010NB-FW Backlight Features

Backlight Features: Type Position Shape Amount Life(Hours) Replacement
CCFL Edge light type Straight 1 pcs 15K(Typ.) -
CCFL Electrical : Current Input Voltage Input Consumption
5.0±1mA 270V (Typ.)
Turn-on Voltage Lamp Frequency
900V (Typ.)
Interface Features : Position Type CCFL Driver
- Connector No
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
1 pcs 4 pins BLL-4PINS-HNNL

whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 127.2(W)×33.9(H) mm, outline size of 200(W)×66(H)×2.3(D) mm, viewing area size of 132.0(W)×39.0(H) mm, net weight of 250g (Max.). As a STN, Blue mode, Transmissive LCM product, DMF5010NB-FW can provides 400 cd/m² display brightness 7:1 transimissive contrast ratio, 50/50/35/50 (Typ.)(CR≥2) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 70/260 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. DMF5010NB-FW utilizes 8-bit parallel as it's signal inputting systerm, which connected by 20 pins with power supply voltage of 5.0V (Typ.)

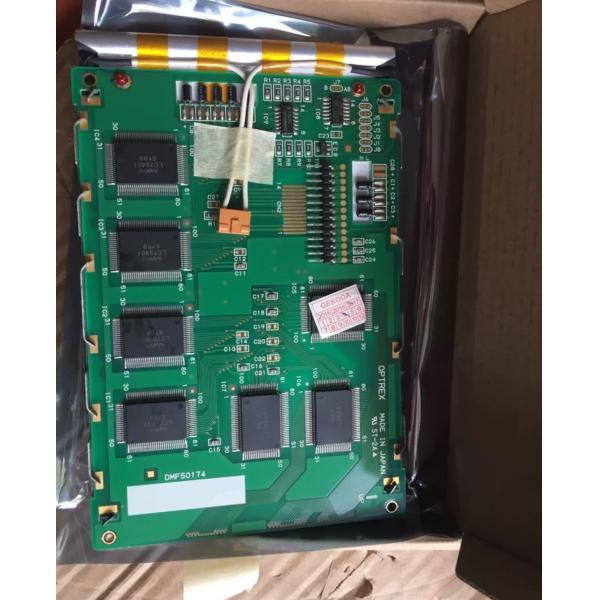

DMF5010NB-FW OPTREX 5.2
