MV270QUM-N50 BOE 27.0 3840(RGB)×2160, 400 cd/m² INDUSTRIAL LCD DISPLAY
MV270QUM-N50 BOE 27.0 3840(RGB)×2160, 400 cd/m² INDUSTRIAL LCD DISPLAY
MV270QUM-N50 BOE 27.0 3840(RGB)×2160, 400 cd/m² INDUSTRIAL LCD DISPLAY
MV270QUM-N50 BOE 27.0 3840(RGB)×2160, 400 cd/m² INDUSTRIAL LCD DISPLAY
MV270QUM-N50 BOE 27.0 3840(RGB)×2160, 400 cd/m² INDUSTRIAL LCD DISPLAY
MV270QUM-N50 BOE 27.0 3840(RGB)×2160, 400 cd/m² INDUSTRIAL LCD DISPLAY
MV270QUM-N50 BOE 27.0 3840(RGB)×2160, 400 cd/m² INDUSTRIAL LCD DISPLAY
MV270QUM-N50 BOE 27.0 3840(RGB)×2160, 400 cd/m² INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
BOE
Model Number :
MV270QUM-N50
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :
1-2DAYS
Packaging Details :
STANDARD PACKING
Brand :
BOE
Diagonal Size :
27.0"
Resolution :
3840(RGB)×2160, UHD 163PPI
Luminance :
400 cd/m²
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10)
Environment :
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Description

BOE MV270QUM-N50 Application Details

Basic Info : Panel Brand Panel Model MV270QUM-N50
Diagonal Size 27.0" Application
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. 0 ~ 50 °C Storage Temp. -20 ~ 60 °C
RoHS State Vibration Rating 1.5G (14.7 m/s²)

BOE MV270QUM-N50 Mechanical Details

Pixel Features : Pixel Format 3840(RGB)×2160 [UHD] Dot Pitch 0.0518×0.1554 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.1554×0.1554 mm (H×V) [163PPI]
Mechanical Size : Display Area 596.736×335.664 mm (H×V) Bezel Area -
Outline Dim. 609.4×355.6 mm (H×V) Outline Depth 9.3/13.8 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 16:9 (H:V) Shape Style 3-side borderless
Holes & Brackets : Rear mounting holes (14-M3)
Other Features : Weight 2.45/2.60Kgs (Typ./Max.) Surface Antiglare (Haze 25%), Hard coating (3H)

BOE MV270QUM-N50 Optical Details

Basic Information : Brightness 400 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Optical Mode HADS, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 14 (Typ.)(G to G) (ms)
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Color Numbers 1.07B (8-bit + Hi-FRC)
Color Temperature 6485K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut : NTSC Ratio 94% sRGB 100% coverage
Adobe RGB 89% coverage DCI-P3 97% coverage
Rec.2020 71% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

BOE MV270QUM-N50 Backlight Details

Back-light Features: Lamp Shape 4 strings × 2CN Lamp Type WLED Life Time 30K(Min.) (Hours)
Replacement - Amount 14S4P×2CN Position Edge light type (Bottom side)
Lamp Electrical : Voltage Input 35/42/43.4V (Min./Typ./Max.) Current Input 70mA (Typ.)
Consumption 19.6/23.5/24.3W (Min./Typ./Max.)
Interface Features : Type Connector Position Lamp Driver No
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
E&T 7083K-F06N-04L 0.5 mm 6 pins 2 pcs BLE-6PINS-CCAACC

BOE MV270QUM-N50 Interface Details

Signal Systerm : eDP (4 Lanes), HBR2 (5.4G/lane) Logic Voltage -
Signal Electrical : Voltage Input 10.0V (Typ.) Current Input 0.9/1.3A (Typ./Max.)
Consumption 9.0/13W (Typ./Max.)
Interface Features : Type Connector Position
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
STM MSAK24025P30 0.5 mm 30 pins 1 pcs EDP-30P4L-060A

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 609.4(W)×355.6(H)×13.8(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.45/2.60Kgs (Typ./Max.). As a HADS, Normally Black, Transmissive LCM product, MV270QUM-N50 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 95% (DCI-P3). This product adopted 14S4P×2CN WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. MV270QUM-N50 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.)

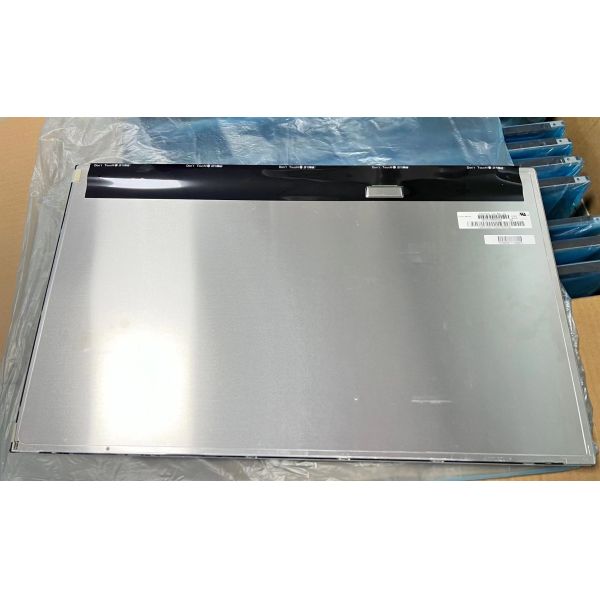

MV270QUM-N50 BOE 27.0
