LP140WFB-SPF4 LG Display 14.0 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY
LP140WFB-SPF4 LG Display 14.0 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY
LP140WFB-SPF4 LG Display 14.0 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY
LP140WFB-SPF4 LG Display 14.0 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
LG Display
Model Number :
LP140WFB-SPF4
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :
1-2DAYS
Packaging Details :
STANDARD PACKING
Brand :
LG Display
Diagonal Size :
14.0"
Resolution :
1920(RGB)×1080, FHD 157PPI
Brightness :
300 cd/m²
Environment :
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Viewing Angle :
85/85/85/85 (Typ.)(CR≥10)
Description

LG Display LP140WFB-SPF4 Application Features

Basic Information : Brand Model Type Model Alias
LP140WFB-SPF4 a-Si TFT-LCD , LCM LP140WFB (SP)(F4), LGD06C3
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
0 ~ 50 °C -20 ~ 60 °C

LG Display LP140WFB-SPF4 Mechanical Features

Panel Size : 14.0 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
1920(RGB)×1080, FHD RGB Vertical Stripe 0.0537×0.1611 mm 0.1611×0.1611 mm [157PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
309.31×173.99 mm - 315.81×186.07 mm 2.95/5.25 (Typ./Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 16:9 (W : H) Landscape type Slim (PCBA Bent, T≤3.0mm)
Touchscreen : Touch Points TP Controller & Signal OS System Touch Tech
10 points With controller, I²C - In-Cell Touch
Fixation : Without
Other Features : Panel Cover Weight Surface
- 310g (Typ.) Antiglare, Hard coating (3H)

LG Display LP140WFB-SPF4 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
300 cd/m² (Typ.) IPS, Normally Black, Transmissive 700:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
85/85/85/85 (Typ.)(CR≥10) Symmetry 25 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6485K 262K (6-bit) X:0.313; Y:0.329
1931 Color Gamut : NTSC Ratio sRGB Coverage Adobe RGB Coverage
72% 99% 74%
DCI-P3 Coverage Rec.2020 Coverage Remarks
75% 54% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.40/1.60 (Max.)(5/13 points)

LG Display LP140WFB-SPF4 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
270/297mA (Typ./Max.) 3.3V (Typ.) 0.89/0.98W (Typ./Max.)
Interface Features : Position Type Interface
Connector eDP (2 Lanes), eDP1.3, HBR1 (2.7G/lane)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
LS Mtron GT05Q-40S-H10 1 pcs 0.5 mm 40 pins

LG Display LP140WFB-SPF4 Backlight Features

Backlight Features: Type Position Shape Amount Life(Hours) Replacement
WLED Edge light type - - 15K(Min.) -
Interface Features : Position Type WLED Driver
- Included in signal interface With LED Driver
Driver Electrical : Current Input Voltage Input Consumption
250/255mA (Typ./Max.) 5.0/12.0/21.0V (Min./Typ./Max.) 3.0/3.05W (Typ./Max.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 315.81(W)×186.07(H)×5.25(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 310g (Typ.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LP140WFB-SPF4 can provides 300 cd/m² display brightness 700:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP140WFB-SPF4 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).

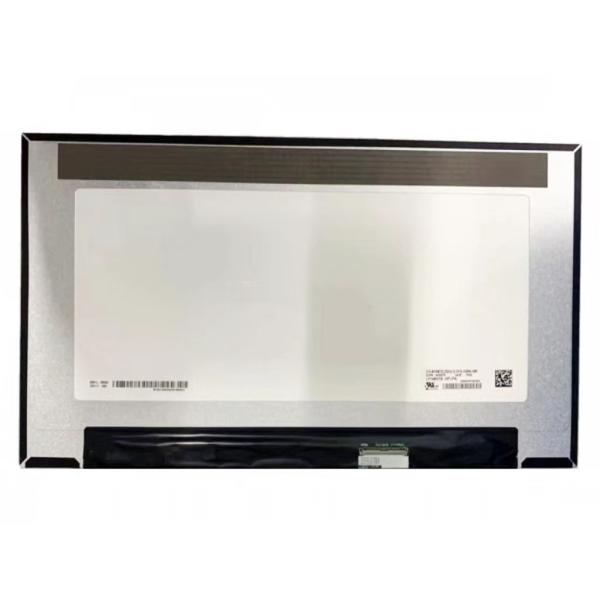

LP140WFB-SPF4 LG Display 14.0
