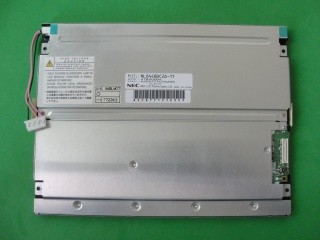

NL6448BC26-11 TFT LCD Panel 8.4 640(RGB)×480, VGA  95PPI 170.88(W)×128.16(H) mm
NL6448BC26-11 TFT LCD Panel 8.4 640(RGB)×480, VGA  95PPI 170.88(W)×128.16(H) mm
NL6448BC26-11 TFT LCD Panel 8.4 640(RGB)×480, VGA  95PPI 170.88(W)×128.16(H) mm
NL6448BC26-11 TFT LCD Panel 8.4 640(RGB)×480, VGA  95PPI 170.88(W)×128.16(H) mm
NL6448BC26-11 TFT LCD Panel 8.4 640(RGB)×480, VGA  95PPI 170.88(W)×128.16(H) mm
NL6448BC26-11 TFT LCD Panel 8.4 640(RGB)×480, VGA  95PPI 170.88(W)×128.16(H) mm
NL6448BC26-11 TFT LCD Panel 8.4 640(RGB)×480, VGA  95PPI 170.88(W)×128.16(H) mm
NL6448BC26-11 TFT LCD Panel 8.4 640(RGB)×480, VGA  95PPI 170.88(W)×128.16(H) mm
Specifications
Brand Name :
NEC
Model Number :
NL6448BC26-11
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Price :
60USD
Payment Terms :
T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :
1000PCS
Delivery Time :
1 DAY
Packaging Details :
BOX
Screen Size :
8.4 inch
Pixel Number :
640(RGB)×480 (VGA) 95PPI
Active Area(mm :
170.88 × 128.16 (H×V)
Signal Type :
CMOS (1 ch, 6-bit) , 31 pins Connector
Screen Type :
LCM , a-Si TFT-LCD
Arrangement :
RGB Vertical Stripe
Backlight :
2 pcs CCFL , No Driver
Lamp Type :
2 pcs CCFL , Without Driver
Description
1. Main Information
The NL6448BC26-11 is a 8.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver. It's general features are summarized by Panelook in the following: Lamp Repaceable . Based on its features, Panelook recommend that this model be applied to Industrialetc.

2. NEC NL6448BC26-11 Mechanical Details

Pixel Features :
Resolution
640(RGB)×480, VGA
Dot Pitch(mm)
0.089×0.267 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.267×0.267 (H×V) [95PPI]
Mechanical Size :
Active Area(mm)
170.88(H) × 128.16(V)
Bezel Area(mm)
-
Outline Features :
Form Style
Flat Rectangle
Shape Style
-
Aspect Ratio
4:3 (H:V)
Orientation
Landscape type

3. NEC NL6448BC26-11 Interface Detail

Signal Type :
CMOS (1 ch, 6-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
31 pins
1 pcs

4. NEC NL6448BC26-11 Backlight Details

Back-light Features: Lamp Shape Straight Lamp Type CCFL Life Time -
Replacement Replaceable Amount 2 pcs Position Edge light type (Top side)
Interface Features : Type Connector Position - Lamp Driver No
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
JST BHR-04VS-1 4.0 mm 4 pins 1 pcs BLL-4PINS-HHNL

5. FAQ:
Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable

performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
