Specifications
Brand Name :
AUO
Model Number :
G150XTN03.5
Certification :
ISO9001
Place of Origin :
TAIWAN
MOQ :
1PCS
Price :
55USD
Payment Terms :
T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :
1000PCS
Delivery Time :
1 DAY
Packaging Details :
Package Carton : Amount Net Weight Carton Size (L×W×H) 14 pcs / box 16.5 Kgs 430×370×350 mm
Size :
15 Inch
Resolution :
1024*768
Luminance :
350 cd/m² (Typ.)
Viewing Angle :
80/80/70/80 (Typ.)(CR≥10)
Support Color :
262K/16.2M 60% NTSC
Weight :
1.20Kgs (Max.)
Operating Mode :
TN, Normally White, Transmissive
Light Source :
WLED , 50K hours , With LED Driver
Interface Type :
LVDS (1 ch, 6/8-bit) 20 pins Connector
Environment :
Operating Temperature: 0 ~ 65 °C ; Storage Temperature: -20 ~ 65 °C
Description

1.Main Information:

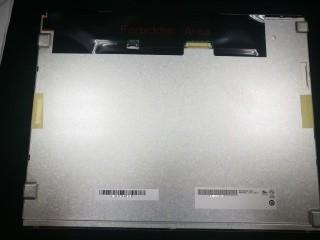

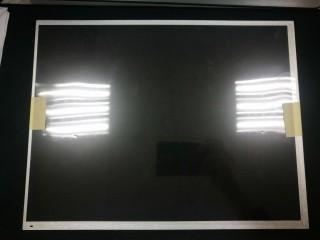

AU Optronics Corp.G150XTN03.5 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.

It features an operating temperature range of 0 ~ 65°C , a storage temperature range of -20 ~ 65°C , and the maximal vibration level of 1.5G (14.7 m/s²).

It's general features are ollowing: WLED Backlight, Life ≥ 50K hours, With LED Driver, 6/8 bit, Matte , eDP1.2.

Based on its features, this model be applied to Industrial etc.

2.AUO G150XTN03.5 Optical Details:

Basic Information : Luminance 350 cd/m² (Typ.) Contrast Ratio 800 : 1 (Typ.) (Transmissive)
Good View at - Response Speed 5.7/2.3 (Typ.)(Tr/Td) (ms)
Viewing Angle 80/80/70/80 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature 6485K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 60% sRGB 84% coverage
Adobe RGB 63% coverage DCI-P3 63% coverage
Rec.2020 45% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.AUO G150XTN03.5 Mechanical Details:

Pixel Features : Number of Pixel 1024(RGB)×768 [XGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.099×0.297 mm Pixel Pitch(W×H) 0.297×0.297 mm [85PPI]
Physical Size : Active Viewing 304.128(W)×228.096(H) mm Overall Dim. 326.5(W)×253.5(H) mm
Bezel Opening 313.55(W)×237.25(H) mm Overall Depth 10.0 (Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style -
Fixation : Side mounting holes (4-M3) on left, right bezel
Other Detail : Mass 1.20Kgs (Max.) Surface Antiglare, Hard coating (3H)

4.AUO G150XTN03.5 Lightting Details:

Lamp Features: Lamp Shape - Lamp Type WLED Position Edge light type (Bottom side)
Exchange No Amount - Life 50K(Min.) (Hours)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
E&T 3808K-F05N-02R 1 pcs 1.25 mm 5 pins
Backlight Driver : With LED Driver
Driver Electrical : Input Current 0.375A (Typ.) Input Voltage 12.0±1.2V
Consumption 4.5/5W (Typ./Max.)

5.FAQ:

Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.

Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
