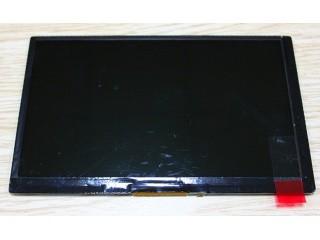

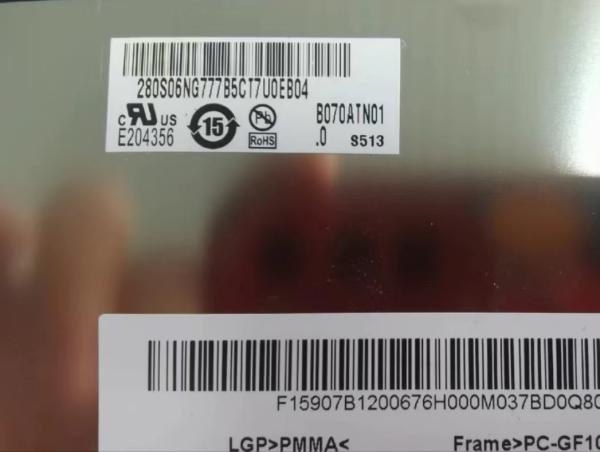

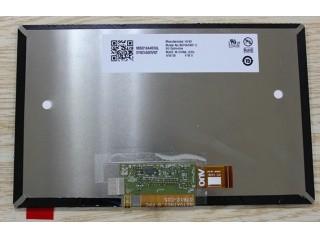

7 Inch 1024*600 Pad & Tablet Panel B070ATN01.0 Without Touchscreen
7 Inch 1024*600 Pad & Tablet Panel B070ATN01.0 Without Touchscreen
7 Inch 1024*600 Pad & Tablet Panel B070ATN01.0 Without Touchscreen
7 Inch 1024*600 Pad & Tablet Panel B070ATN01.0 Without Touchscreen
7 Inch 1024*600 Pad & Tablet Panel B070ATN01.0 Without Touchscreen
7 Inch 1024*600 Pad & Tablet Panel B070ATN01.0 Without Touchscreen
Specifications
Brand Name :
AUO
Model Number :
B070ATN01.0
Certification :
ISO9001
Place of Origin :
TAIWAN
MOQ :
1PCS
Price :
30USD
Payment Terms :
T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :
1000PCS
Delivery Time :
3 DAY
Packaging Details :
Package Carton :(L×W×H) 78 pcs / box 11.0 Kgs Carton Size:584×379×226 mm
Size :
7 Inch
Resolution :
1024×600
Brightness :
350
C/R :
700:1
View Angle :
75/75/70/75
Colors :
262K/16.2M
Storage Temp. :
-30 ~ 70 °C
Operating Temp. :
-20 ~ 60 °C
Warranty :
180 Days
Quality :
New and Original Grade A
Description

1.Main Information:

The B070ATN01.0 is a 7Inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. ,with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 60°C , a storage temperature range of -30 ~ 70°C . It's general features are: WLED Backlight, U/D,L/R Reverse, 6/8 bit, Glossy . Based on its features, this model be applied to Pad & Tablet, Industrial, Digital Photo Frame, Portable DVD Player etc.

2.AUO B070ATN01.0 Optical Details:

Pixel Features : Pixel Format 1024(RGB)×600 [WSVGA] Dot Pitch 0.050×0.150 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.150×0.150 mm (H×V) [169PPI]
Mechanical Size : Display Area 153.6×90 mm (H×V) Bezel Area 155.6×92.0 mm (H×V)
Outline Dim. 167.25×104.65 mm (H×V) Outline Depth 2.9/4.8 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 17:10 (H:V) Shape Style -
Holes & Brackets : Without
Other Features : Weight 100g (Max.) Surface Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.)


3.AUO B070ATN01.0 Optical Details:

Basic Information : Brightness 350 cd/m² (Typ.) Contrast Ratio 700:1 (Typ.) (Transmissive)
Viewing Angle 75/75/70/75 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction - Response Time 16 (Typ.)(Tr+Td) (ms)
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature 6485K White Uniformity 1.17/1.25 (Typ./Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 48% sRGB 67% coverage
Adobe RGB 50% coverage DCI-P3 50% coverage
Rec.2020 36% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

4.AUO B070ATN01.0 Backlight Details:

Back-light Features: Lamp Shape Array Lamp Type WLED Life Time 15K(Min.) (Hours)
Replacement - Amount 4S6P Position Edge light type
Lamp Electrical : Voltage Input 12.4/13.2V (Typ./Max.) Current Input 120mA (Typ.)
Consumption 1.488/1.584W (Typ./Max.)
Interface Features : Type Included in panel signal interface Position - Lamp Driver No

5.AUO B070ATN01 Series Model:

Panel Model Size Type Resolution cd/m2 C/R Backlight Color Interface
B070ATN01.0 7.0" LCM  1024×600 350 700:1 WLED 262K/16.2M LVDS
B070ATN01.0 CELL 7.0" CELL  1024×600 0 NO 262K/16.2M LVDS
B070ATN01.2 7.0" LCM  1024×600 350 700:1 WLED 262K/16.2M LVDS

6.FAQ:

Q1:What's the quality of your LCD Panel?

A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?

A:The lead time is about 1-3 working days after receipt of payment.

Q4:How can I get the quotation?

A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
