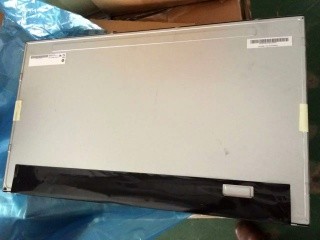

23.8 Inch RGB Vertical Stripe TFT-LCD G238HAN01.0 Without Driver For Industrial And Medical
23.8 Inch RGB Vertical Stripe TFT-LCD G238HAN01.0 Without Driver For Industrial And Medical
23.8 Inch RGB Vertical Stripe TFT-LCD G238HAN01.0 Without Driver For Industrial And Medical
23.8 Inch RGB Vertical Stripe TFT-LCD G238HAN01.0 Without Driver For Industrial And Medical
Specifications
Brand Name :
AUO
Model Number :
G238HAN01.0
Certification :
ISO9001
Place of Origin :
TAIWAN
MOQ :
1PCS
Price :
60
Payment Terms :
T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :
1000PCS
Delivery Time :
1 DAY
Packaging Details :
AUO G238HAN01.0 Packing Details Package Box : Quantity Weight Box Size 7 pcs / box 12 Kgs 610×270×430 mm (L×W×H)
Size :
23.8 Inch
Resolution :
1920*1080
Brightness :
250 cd/m² (Typ.)
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10)
Best View on :
Symmetry
Display Colors :
16.7M 75% NTSC
Signal Interface :
LVDS (2 ch, 8-bit) , 30 pins Connector
Display Mode :
AHVA, Normally Black, Transmissive
Lamp Type :
17S4P WLED , 30K hours , Without Driver
Environment :
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Description

1. Main Information:

AU Optronics Corp.G238HAN01.0 is a 23.8 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).

It's general features are following: WLED Backlight, Reverse I/F, Matte , TCO 6.0 Compliance. Based on its features, this model be applied to Industrial, Medical Imaging etc.

2. AUO G238HAN01.0 Mechanical Features:

Screen Size 23.8 Inch
Pixel Features Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1920(RGB)×1080, FHD RGB Vertical Stripe 0.0915×0.2745 mm 0.2745×0.2745 mm [92PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
527.04×296.46 mm 530.2×299.6 mm 543×317.4 mm 8.4/11.65 (Typ./.Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:9 Landscape type -
Other Spec : Mass Panel Cover Surface Treatment
2.28±0.08Kgs - Antiglare, Hard coating (3H)
Holes & Brackets :

Side mounting holes (4-M3) on left, right bezel

3. AUO G238HAN01.0 Optical Features:

Basic Information : Luminance Work Mode Contrast Ratio
250 cd/m² (Typ.) AHVA, Normally Black, Transmissive 1000:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 89/89/89/89 (Typ.)(CR≥10) 14 (Typ.)(G to G) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 16.7M (6-bit + Hi-FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
75% 97% 75%
DCI-P3 Coverage Rec.2020 Coverage Remarks
77% 56% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25/1.33 (Typ./Max.)(9 points)

4. AUO G238HAN01.0 Backlight Features:

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
WLED Edge light type (Bottom side) 30K(Min.) 17S4P 4 strings -
WLED Electrical : Input Voltage Input Current Power Consumption
54.4±6.8V 70/77mA (Typ./Max.) 15.2/17.1W (Typ./.Max.)
Interface Features : WLED Driver State Physical Type Interface Position
No Connector
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
E&T 3707K-S06N-21R 1 pcs 6 pins 1.0 mm BLE-6PINS-CCAACC

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
