LM300WQ6-SLA1 Energy Star 7.0 30 Inch 2560*1600 TFT LCD Display
LM300WQ6-SLA1 Energy Star 7.0 30 Inch 2560*1600 TFT LCD Display
LM300WQ6-SLA1 Energy Star 7.0 30 Inch 2560*1600 TFT LCD Display
LM300WQ6-SLA1 Energy Star 7.0 30 Inch 2560*1600 TFT LCD Display
LM300WQ6-SLA1 Energy Star 7.0 30 Inch 2560*1600 TFT LCD Display
LM300WQ6-SLA1 Energy Star 7.0 30 Inch 2560*1600 TFT LCD Display
Specifications
Brand Name :
LG Display
Model Number :
LM300WQ6-SLA1
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Price :
150USD
Payment Terms :
T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :
500PCS
Delivery Time :
1 DAY
Packaging Details :
Package Carton : 8 pcs / box - Carton Size (L×W×H):830×348×500 mm
Size :
30 Inch
Resolution :
2560*1600
Luminance :
350 cd/m² (Typ.)
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10)
Good View at :
Symmetry
Color Depth :
1.07B 99% Adobe RGB
Signal Type :
LVDS (4 ch, 10-bit) , 92 pins Connector
Work Mode :
AH-IPS, Normally Black, Transmissive
Backlight :
GB-r LED , 30K hours , No Driver
Max. Ratings :
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
Description

30 Inch 2560*1600 TFT LCD LM300WQ6-SLA1 Energy Star 7.0 Compliance For Desktop Monitor

1. Main Information:

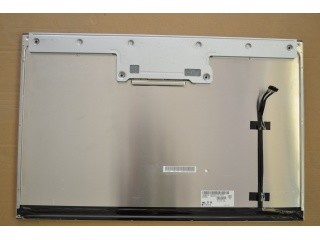

LM300WQ6-SLA1 (Alias: LM300WQ6 (SL)(A1)) is a 30.0" diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. with an integral GB-r LED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .

It's general features are following: DCI-P3, Adobe RGB, sRGB, Upside I/F, 10 bit, Matte , Energy Star 7.0 Compliance; Adobe RGB. Based on its featuresthis model be applied to Desktop Monitor etc.

2. LG Display LM300WQ6-SLA1 Mechanical Features:

Screen Size : 30 Inch
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
2560(RGB)×1600, WQXGA RGB Vertical Stripe 0.0835×0.2505 mm 0.2505×0.2505 mm [101PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
641.28×400.8 mm 646.3×405.8 mm 677.3×436.8 mm 11.0/18.5 (Typ./Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:10 Landscape type -
Other Spec : Mass Panel Cover Surface Treatment
4.15/4.36Kgs (Typ./Max.) - Antiglare, Hard coating (3H)
Holes & Brackets : Side mounting holes (4 pcs) on left, right bezel

3. LG Display LM300WQ6-SLA1 Optical Features:

Basic Information : Luminance Work Mode Contrast Ratio
350 cd/m² (Typ.) AH-IPS, Normally Black, Transmissive 1000:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 89/89/89/89 (Typ.)(CR≥10 7/7 (Typ.)(Tr/Td); 6 (Typ.)(G to G) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 1.07B (10-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
104% 100% 99%
DCI-P3 Coverage Rec.2020 Coverage Remarks
94% 77% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.33 (Max.)(9 points)

4. LG Display LM300WQ6-SLA1 Backlight Features:

Back-light Features: Type Position Life(Hours)

Amount

Shape Replacement
GB-r LED Edge light type 30K(Min.) - - -
GB-r LED Electrical : Input Voltage Input Current Power Consumption
68.2/68.2V (Typ.)(Green/Blue) 105/65mA (Typ.)(Green/Blue) 46.4/49.4W (Typ./Max.)
Interface Features : GB-r LED Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
E&T H401K-D12N-12B 1 pcs 12 pins 2.0 mm BLE-12PINS-CCAACCCCAACC

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
