Specifications
Brand Name :
AUO
Model Number :
G085VW01 V0
Certification :
ISO9001
Place of Origin :
TAIWAN
MOQ :
1PCS
Price :
40USD
Payment Terms :
T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :
1000PCS
Delivery Time :
1 DAY
Packaging Details :
Package Carton : 30 pcs / box 12 Kgs Carton Size (L×W×H):520×340×250 mm
Size :
8.5 Inch
Resolution :
800*480
Luminance :
300 cd/m² (Typ.)
Viewing Angle :
80/80/80/60 (Typ.)(CR≥10)
Color Depth :
262K 50% NTSC
Signal Type :
CMOS (1 ch, 6-bit) , Connector 40 pins
Treatment :
Antiglare, Hard coating (3H)
Work Mode :
TN, Normally White, Transmissive
Backlight :
WLED , 50K hours , With LED Driver
Max. Ratings :
Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C
Description

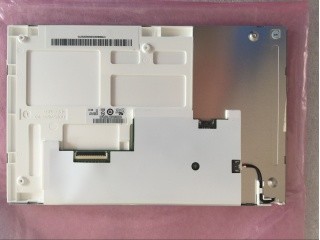

8.5 Inch Wide Temperature TFT LCD Panel G085VW01 V0 With LED Driver

1. Main Information:

The G085VW01 V0 (Alias: G085VW01 V.0) is a 8.5 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. With an integral WLED backlight system, With LED Driver , without touch screen.

It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²).

It's general features are following: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, 180° Reverse, Matte , Mass production from Jun. 2010. Based on its features,this model be applied to Industrial etc.

2. AUO G085VW01 V0 Optical Features:

Basic Information Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
300 (Typ.) 80/80/80/60 (Typ.)(CR≥10) 20/10 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
- TN, Normally White, Transmissive 500 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
7351K 262K (6-bit) X:0.300; Y:0.320
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
50% 70% 52%
DCI-P3 Coverage Rec.2020 Coverage Remarks
52% 37% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.33/1.43 (Typ./Max.)(9 points)

3.AUO G085VW01 V0 Mechanical Features:

Panel Size 8.5 Inch
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
800(RGB)×480 [WVGA] RGB Vertical Stripe 0.231×0.231 [109PPI] 0.077×0.231
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
184.8(H) × 110.88(V) 189.8(H) × 116.0(V) 210(H) × 134(V) 10.0±0.5 mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 15:9 (H:V) -
Mounting : Rear mounting holes (4-Φ1.6)
Other Detail Weight Panel Cover Treatment
250g (Typ.) - Antiglare, Hard coating (3H)

4.AUO G085VW01 V0 Backlight Features:

Lamp Features: Type Position Quantity Shape Life(Hours) Lamp Exchange
WLED Edge light type - - 50K(Min.) Replaceable
Interface Features : Position Backlight Driver Type
- With LED Driver Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
E&T
3808K-F05N-02R		 1.25 mm 5 pins 1 pcs
Driver Electrical : Voltage Supply Current Supply Power Consumption
12.0V (Typ.) 0.25A (Typ.) 3W (Typ.)

5.FAQ:

Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.

Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
