NL6448BC33-63 10.4 Inch RGB Vertical Stripe 640*480 NEC TFT Display 211.2(W)×158.4(H) mm
NL6448BC33-63 10.4 Inch RGB Vertical Stripe 640*480 NEC TFT Display 211.2(W)×158.4(H) mm
NL6448BC33-63 10.4 Inch RGB Vertical Stripe 640*480 NEC TFT Display 211.2(W)×158.4(H) mm
NL6448BC33-63 10.4 Inch RGB Vertical Stripe 640*480 NEC TFT Display 211.2(W)×158.4(H) mm
NL6448BC33-63 10.4 Inch RGB Vertical Stripe 640*480 NEC TFT Display 211.2(W)×158.4(H) mm
NL6448BC33-63 10.4 Inch RGB Vertical Stripe 640*480 NEC TFT Display 211.2(W)×158.4(H) mm
Specifications
Brand Name :
NEC
Model Number :
NL6448BC33-63
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Price :
60USD
Payment Terms :
T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :
1000PCS
Delivery Time :
1 DAY
Packaging Details :
BOX
Size :
10.4 Inch
Type :
a-Si TFT-LCD , LCM
Active Area :
211.2(H)×158.4(V) mm
Designed For :
Indutrail
Lead Time :
Stock,Right Now
Warranty :
180 Days
Description

10.4 Inch RGB Vertical Stripe 640*480 NL6448BC33-63 Used For Industrial

1. Main Information:

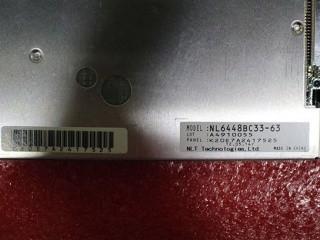

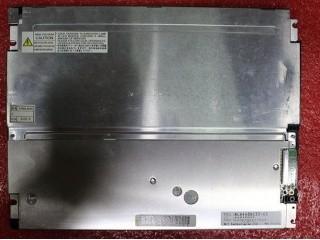

NL6448BC33-63 is a 10.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd.

Based on its features, this model be applied to Industrial etc. Now this model is discontinued. But we have this model in stock.

2. NEC NL6448BC33-63 Mechanical Features:

Screen Size : 10.4 Inch
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
640(RGB)×480, VGA RGB Vertical Stripe 0.110×0.330 mm 0.330×0.330 mm [76PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
211.2×158.4 mm - - -
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type -

3. NEC NL6448BC33-63 Series Model:

Panel Model Size Type Resolution cd/m2 C/R Backlight Color Interface
NL6448BC33-63 10.4" LCM  640×480
NL6448BC33-63C 10.4" LCM  640×480 450 600:1 CCFL 262K/16.7M LVDS
NL6448BC33-63D 10.4" LCM  640×480 450 600:1 CCFL 262K/16.7M LVDS

4. FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
