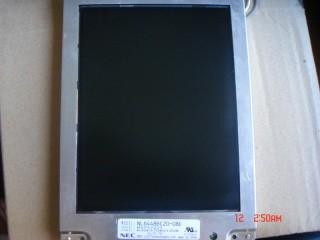

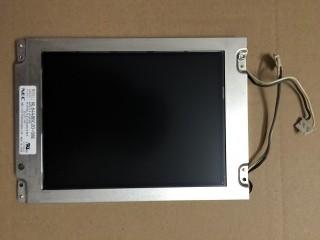

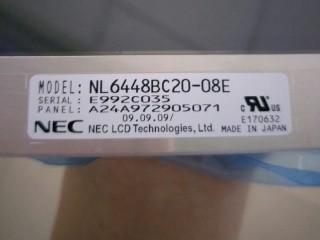

NL6448BC20-08E 6.5 INCH 122PPI LCD NEC TFT Display 141.5(H)×105.6(V) mm
NL6448BC20-08E 6.5 INCH 122PPI LCD NEC TFT Display 141.5(H)×105.6(V) mm
NL6448BC20-08E 6.5 INCH 122PPI LCD NEC TFT Display 141.5(H)×105.6(V) mm
NL6448BC20-08E 6.5 INCH 122PPI LCD NEC TFT Display 141.5(H)×105.6(V) mm
NL6448BC20-08E 6.5 INCH 122PPI LCD NEC TFT Display 141.5(H)×105.6(V) mm
NL6448BC20-08E 6.5 INCH 122PPI LCD NEC TFT Display 141.5(H)×105.6(V) mm
NL6448BC20-08E 6.5 INCH 122PPI LCD NEC TFT Display 141.5(H)×105.6(V) mm
NL6448BC20-08E 6.5 INCH 122PPI LCD NEC TFT Display 141.5(H)×105.6(V) mm
NL6448BC20-08E 6.5 INCH 122PPI LCD NEC TFT Display 141.5(H)×105.6(V) mm
NL6448BC20-08E 6.5 INCH 122PPI LCD NEC TFT Display 141.5(H)×105.6(V) mm
Specifications
Brand Name :
NEC
Model Number :
NL6448BC20-08E
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Price :
60USD
Payment Terms :
T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :
1000PCS
Delivery Time :
1 DAY

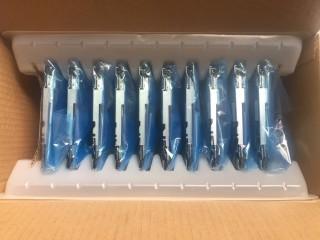

Packaging Details :
BOX
Pixel Format :
640(RGB)×480 [VGA] 122PPI
Active Area :
132.48(H)×99.36(V) mm
Bezel Area :
141.5(H)×105.6(V) mm
Interface Type :
Parallel RGB , 31 pins Connector
Environment :
0 ~ 60 °C
Type :
a-Si TFT-LCD, LCM
Configuration :
RGB Vertical Stripe
Outline Dim. :
178.8(H)×126.8(V) mm
Treatment :
Antiglare (Haze 16%), Hard coating (2H), Antireflection
Operating Mode :
TN, Normally White, Transmissive
Description

NL6448BC20-08E 6.5 INCH NEC TFT-LCD 640(RGB)×480, VGA, 122PPI PIXEL 0 ~ 60 °C industrial LCD panel

1. Main Information:

NL6448BC20-08E is a 6.5" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 60°C , a storage temperature range of -25 ~ 70°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Panelook in the following: Lamp Repaceable, 180° Reverse, Matte . Based on its features, Panelook recommend that this model be applied to Industrial etc

2. NEC NL6448BC20-08E Mechanical Details

Pixel Features : Pixel Format 640(RGB)×480 [VGA] Dot Pitch 0.069×0.207 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.207×0.207 mm (H×V) [122PPI]
Mechanical Size : Display Area 132.48×99.36 mm (H×V) Bezel Area 141.5×105.6 mm (H×V)
Outline Dim. 178.8×126.8 mm (H×V) Outline Depth 11.0±0.5 mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style -
Holes & Brackets : Face mounting holes (4-Ф2.8)
Other Features : Weight 240/260g (Typ./Max.) Surface Antiglare (Haze 16%), Hard coating (2H), Antireflection

3. NEC NL6448BC20-08E Optical Details

Basic Information : Brightness 300 cd/m² (Typ.) Contrast Ratio 250:1 (Typ.) (Transmissive)
Viewing Angle 50/50/35/45 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction 6 o'clock Response Time 13/36 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.345; Wy:0.347 Color Numbers 262K (6-bit)
Color Temperature 5006K White Uniformity 1.25 (Typ.)(5 points)
1931 Color Gamlt : NTSC Ratio 48% sRGB 66% coverage
Adobe RGB 50% coverage DCI-P3 49% coverage
Rec.2020 36% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

4. NEC NL6448BC20-08E Backlight Details

Back-light Features: Lamp Shape Straight Lamp Type CCFL Life Time -
Replacement Replaceable (65LHS04) Amount 2 pcs Position Edge light type (Top and Bottom)
Lamp Electrical : Voltage Input 400V (Typ.) Current Input 2.0/5.0/6.0mA (Min./Typ./Max.)
Frequency 50/54/58KHz (Min./Typ./Max.) Kick-off Voltage 590/720V (Min.)(Ta=+25/0℃)
Interface Features : Type Connector Position - Lamp Driver No
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
JST BHR-03VS-1 4.0 mm 3 pins 2 pcs BLL-3PINS-HNL

5. FAQ:
Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
