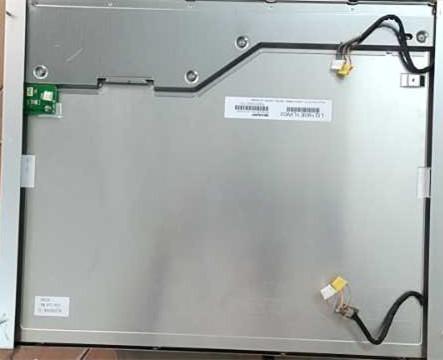

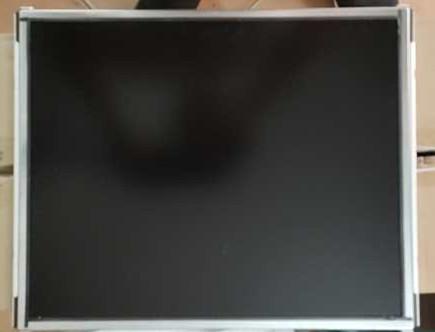

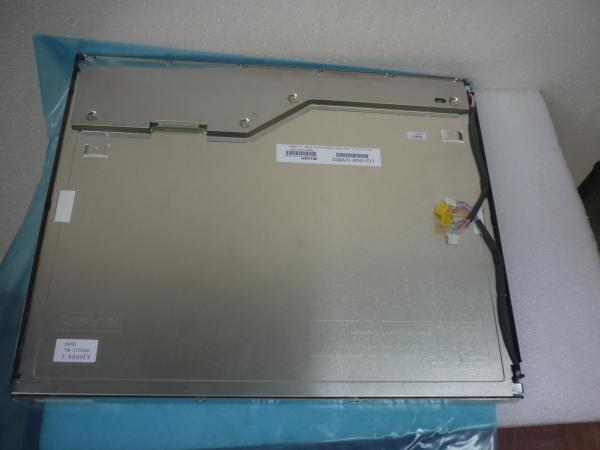

LCM 1280(RGB)×1024, SXGA, 86PPI   700 cd/m² 19 LQ190E1LW01 Sharp TFT LCD Display
LCM 1280(RGB)×1024, SXGA, 86PPI   700 cd/m² 19 LQ190E1LW01 Sharp TFT LCD Display
LCM 1280(RGB)×1024, SXGA, 86PPI   700 cd/m² 19 LQ190E1LW01 Sharp TFT LCD Display
LCM 1280(RGB)×1024, SXGA, 86PPI   700 cd/m² 19 LQ190E1LW01 Sharp TFT LCD Display
LCM 1280(RGB)×1024, SXGA, 86PPI   700 cd/m² 19 LQ190E1LW01 Sharp TFT LCD Display
LCM 1280(RGB)×1024, SXGA, 86PPI   700 cd/m² 19 LQ190E1LW01 Sharp TFT LCD Display
LCM 1280(RGB)×1024, SXGA, 86PPI   700 cd/m² 19 LQ190E1LW01 Sharp TFT LCD Display
LCM 1280(RGB)×1024, SXGA, 86PPI   700 cd/m² 19 LQ190E1LW01 Sharp TFT LCD Display
Specifications
Brand Name :
SHARP
Model Number :
LQ190E1LW01
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :
200PCS
Delivery Time :
1-2 DAYS
Packaging Details :
5 pcs / box 499×250×464 mm 14 Kgs
Panel Model :
LQ190E1LW01
Panel Size :
19INCH
Viewing Angle :
85/85/85/85 (Min.)(CR≥10)
Resolution :
1280(RGB)×1024, SXGA, 86PPI
Brightness :
700 cd/m²
Lamp Type :
4 pcs CCFL , 50K hours , Without Driver
Signal Interface :
LVDS (2 ch, 8-bit) , 30 pins Connector
Environment :
Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -20 ~ 60 °C ; Vibration Level: 2.0G (19.6 m/s²)
Description

LQ190 Series LQ190E1LW52 LQ190E1LW42 LQ190E1LW02 LQ190E1LW01

Sharp LQ190E1LW01 Optical Details

Basic Information : Luminance 700 cd/m² (Typ.) Contrast Ratio 300 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 16/34 (Typ.)(Tr/Td); 10 (Typ.)(G to G) (ms)
Viewing Angle 85/85/85/85 (Min.)(CR≥10) Operating Mode MVA, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit)
Color Temperature 6485K White Uniformity 1.43 (Max.)(9 Points)
1931 Color Gamlt : NTSC Ratio 71% sRGB 92% coverage
Adobe RGB 73% coverage DCI-P3 73% coverage
Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmissivity -

Sharp LQ190E1LW01 Mechanical Details

Pixel Features : Number of Pixel 1280(RGB)×1024 [SXGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.098×0.294 mm Pixel Pitch(W×H) 0.294×0.294 mm [86PPI]
Physical Size : Active Viewing 376.32(W)×301.056(H) mm Overall Dim. 404.2(W)×330(H) mm
Bezel Opening 382.32(W)×307.06(H) mm Overall Depth 20.0±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 5:4 Shape Style
Fixation : Side mounting holes (4-M3) on left, right bezel
Other Detail : Mass 2.80Kgs (Max.) Surface Antiglare (Haze 40%), Hard coating (2H)

Sharp LQ190E1LW01 Interface Details

Signal Electrical : Input Current 900mA (Typ.) Input Voltage 5.0V (Typ.)
Consumption - Signal Interface LVDS (2 ch, 8-bit)
Interface Features : Position Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JAE FI-X30SSL-HF 1 pcs 1.0 mm 30 pins LVDS-30P2C8B-160K

Sharp LQ190E1LW01 Lightting Details

Lamp Features: Lamp Shape Straight Lamp Type CCFL Position Edge light type (Top and Bottom)
Exchange Replaceable (LQ0DDB5467; FLCL-33) Amount 4 pcs Life 50K(Min.) (Hours)
Lamp Electrical : Input Current 4.0/7.0/8.0mA (Min./Typ./Max.) Input Voltage 750V (Typ.)
Frequency 40/50/60KHz (Min./Typ./Max.) Turn-on Voltage 1400/1500V (Max.)(Ta=+25/0℃)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JST BHR-03VS-1 4 pcs 4.0 mm 3 pins BLL-3PINS-HNL
Backlight Driver : No
