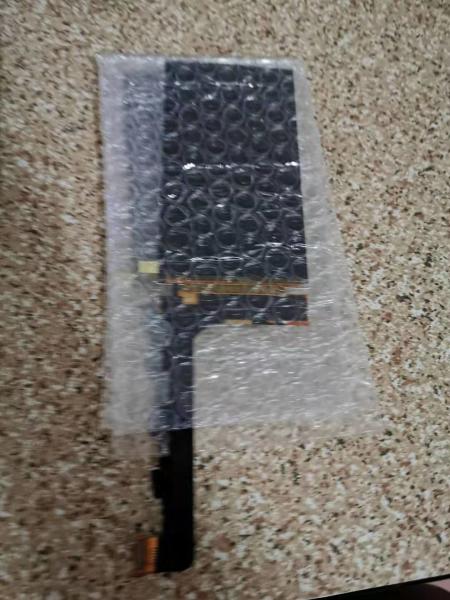

LS050T1SX12(G) Sharp 5 1080×1920RGB 460 cd/m² INDUSTRIAL LCD DISPLAY
LS050T1SX12(G) Sharp 5 1080×1920RGB 460 cd/m² INDUSTRIAL LCD DISPLAY
LS050T1SX12(G) Sharp 5 1080×1920RGB 460 cd/m² INDUSTRIAL LCD DISPLAY
LS050T1SX12(G) Sharp 5 1080×1920RGB 460 cd/m² INDUSTRIAL LCD DISPLAY
LS050T1SX12(G) Sharp 5 1080×1920RGB 460 cd/m² INDUSTRIAL LCD DISPLAY
LS050T1SX12(G) Sharp 5 1080×1920RGB 460 cd/m² INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
SHARP
Model Number :
LS050T1SX12(G)
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :
5000PCS
Delivery Time :
1-2 DAYS
Packaging Details :
120 pcs / box 5.7 Kgs 360×580×187 mm
Diagonal Size :
5.5 inch
Luminance :
460 cd/m² (Typ.)
Model :
LS050T1SX12(G)
Active Area :
61.641(H)×109.584(V) mm
Outline Dim. :
64.041(H)×116.224(V) ×1.13(D) mm
Pixel Format :
1080(RGB)×1920
Light Source :
WLED [7S2P] , W/O Driver
Environment :
Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
Description

LS050 Series LS050T1SX12(G) LS050T1SX06 LS050T1SX04 LS050T1SX01 LS050T1SX18

Sharp LS050T1SX12(G) Application Details

Basic Detail :
Manufacturer
SHARP
LS050T1SX12(G)Model Name
Panel Type
CG-Silicon , LCM
Another Name
-
Panel Size
5.0 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 60 °C
ST Temperature
-30 ~ 70 °C
RoHS

-Vibration Level

Sharp LS050T1SX12(G) Mechanical Details

Pixel Features :
Number of Pixel
1080(RGB)×1920, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.019025×0.057075 mm
Pixel Pitch(W×H)
0.057075×0.057075 mm [445PPI]
Physical Size :
Active Viewing
61.641(W)×109.584(H) mm
Overall Dim.
64.041(W)×116.224(H) mm
Bezel Opening
-
Overall Depth
1.06±0.07 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Portrait type
Aspect Ratio(W:H)
9:16
Shape Style
Other Detail :
Mass
13.0g (Typ.)
Surface
Hard coating (3H)

Sharp LS050T1SX12(G) Interface Detail

Signal Electrical :
Input Current
25.05/7.7/8.23mA (Typ.)(IOIDD/ISP/ISN)
Input Voltage
1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN)
Consumption
-
Signal Interface
MIPI (4 data lanes)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
molex
504208-3410
0.4 mm
34 pins
1 pcs

Sharp LS050T1SX12(G) Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
7S2P
Position
Edge light type
Exchange
-
Lamp Shape
2 strings
Lamp Life
-
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No

Sharp LS050T1SX12(G) Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
No
Driver IC :
Built-in NT35595

Sharp LS050T1SX12(G) Optical Details

Basic Detail :
Luminance
460 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
35 (Max.)(Tr+Td) ms
Viewing Angle
85/85/85/85 (Min.)(CR≥10)
Operating Mode
New Mode2, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.300; Wy:0.320
Support Color
16.7M (8-bit)
Color Temperature
7351K
White Variation
1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
94%
sRGB
100% coverage
Adobe RGB
84% coverage
DCI-P3
92% coverage
Rec.2020
70% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Sharp LS050T1SX12(G) Packing Details

Package Box : Amount Size (L×W×H) Weight
120 pcs / box 5.7 Kgs 360×580×187 mm

LS050T1SX12(G) Sharp 5
