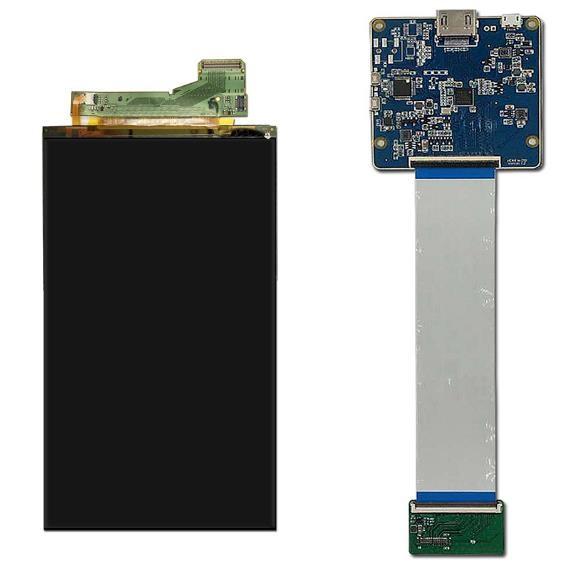

5.5INCH Sharp CG Silicon 530cd/m² 2160×3840 RGB TFT LCD Display LS055D1SX05(G)
5.5INCH Sharp CG Silicon 530cd/m² 2160×3840 RGB TFT LCD Display LS055D1SX05(G)
5.5INCH Sharp CG Silicon 530cd/m² 2160×3840 RGB TFT LCD Display LS055D1SX05(G)
5.5INCH Sharp CG Silicon 530cd/m² 2160×3840 RGB TFT LCD Display LS055D1SX05(G)
5.5INCH Sharp CG Silicon 530cd/m² 2160×3840 RGB TFT LCD Display LS055D1SX05(G)
5.5INCH Sharp CG Silicon 530cd/m² 2160×3840 RGB TFT LCD Display LS055D1SX05(G)
Specifications
Brand Name :
SHARP
Model Number :
LS055D1SX05(G)
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :
500PCS
Delivery Time :
1-2 DAYS
Packaging Details :
120 pcs / box TBD 530×365×235 mm (L×W×H)
Screen Size :
5.5 inch
Model Name :
LS055D1SX05(G)
Pixel Number :
2160(RG/BR/GB)×3840
Active Area(mm) :
68.04 × 120.96 (H×V)
Luminance :
530 cd/m² (Typ.)
Voltage Supply :
1.36/1.85/5.8/-5.6V (Typ.)(DVDD/VDD/VSP/VSN)
Backlight :
6S3P WLED , No Driver
Max. Ratings :
Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 70 °C
Description

LS055 Series LS055D1SX05(G) LS055D1SX02

Sharp LS055D1SX05(G) Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
SHARP LS055D1SX05(G) CG-Silicon , LCM -
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
-20 ~ 70 °C -30 ~ 70 °C -

Sharp LS055D1SX05(G) Mechanical Features

Panel Size : 5.5"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
2160(RG/BR/GB)×3840 [UHD] Rainbow-RGB 0.0315×0.0315 [658PPI] 0.01575×0.03150
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
68.04(H) × 120.96(V) - 69.84(H) × 128.76(V) 1.24 (Typ.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Portrait type 9:16 (H:V)
Other Detail : Weight Panel Cover Treatment
17.0g (Typ.) - -

Sharp LS055D1SX05(G) Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
1.36/1.85/5.8/-5.6V (Typ.)(DVDD/VDD/VSP/VSN) - 696/839mW (Typ./Max.)
Interface Features : Position Signal Type
- MIPI (2 ch, 4 data lanes) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
BB35-PC60-3A-D8 60 pins 1 pcs

Sharp LS055D1SX05(G) Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
530 (Typ.) 80/80/80/80 (Min.)(CR≥10) 30 (Typ.)(Tr+Td)
Best View on Display Mode Contrast Ratio
Symmetry New Mode2, Normally Black, Transmissive 1200 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
8517K 16.7M (8-bit) X:0.285; Y:0.315
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
90% 100% 83%
DCI-P3 Coverage Rec.2020 Coverage Remarks
91% 67% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.25/1.43 (Typ./Max.)(9 points)

Sharp LS055D1SX05(G) Packing Features

Package Box : Quantity Weight Box Size
120 pcs / box TBD 530×365×235 mm (L×W×H)

LS055D1SX05(G) supports display 2160(RG/BR/GB)×3840 (UHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in Rainbow-RGB, according to calculation of Panelook it's pixel density is 658 PPI. As for mechanical detail, it features active area of 68.04(W)×120.96(H) mm, outline size of 69.84(W)×128.76(H) mm, net weight of 17.0g (Typ.). As a New Mode2, Normally Black, Transmissive LCM product, LS055D1SX05(G) can provides 530 cd/m² display brightness 1200:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 90% (NTSC). This product adopted 6S3P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LS055D1SX05(G) utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 1.36/1.85/5.8/-5.6V (Typ.)
