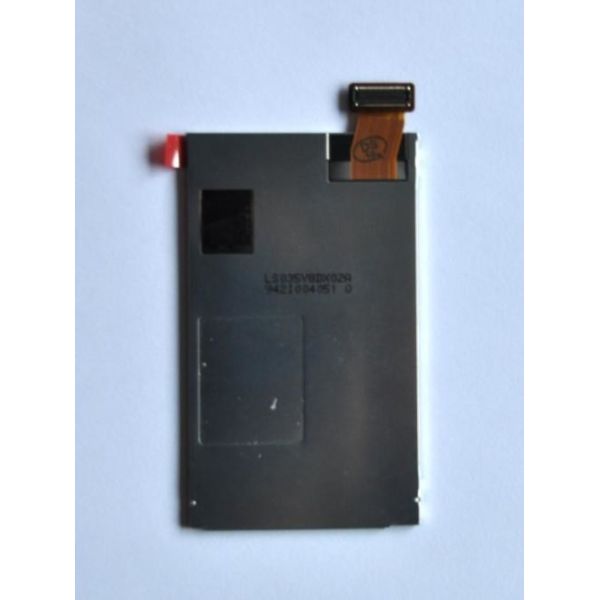

LS035Y8DX02A Sharp 3.5 LCM 480×800 RGB 500 cd/m² INDUSTRIAL LCD DISPLAY
LS035Y8DX02A Sharp 3.5 LCM 480×800 RGB 500 cd/m² INDUSTRIAL LCD DISPLAY
LS035Y8DX02A Sharp 3.5 LCM 480×800 RGB 500 cd/m² INDUSTRIAL LCD DISPLAY
LS035Y8DX02A Sharp 3.5 LCM 480×800 RGB 500 cd/m² INDUSTRIAL LCD DISPLAY
LS035Y8DX02A Sharp 3.5 LCM 480×800 RGB 500 cd/m² INDUSTRIAL LCD DISPLAY
LS035Y8DX02A Sharp 3.5 LCM 480×800 RGB 500 cd/m² INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
SHARP
Model Number :
LS035Y8DX02A
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :
20000PCS
Delivery Time :
1-2 DAYS
Packaging Details :
240 pcs / box 9.0 KGs 365×530×235 mm (L×W×H)
Model :
LS035Y8DX02A
Size :
3.5 INCH
Viewing Angle :
80/80/80/80
Weight :
16.6g (Typ.)
Pixel Format :
480(RGB)×800 [WVGA] 268PPI
Luminance :
500 cd/m² (Typ.)
Lamp Type :
WLED
Signal Interface :
TTL
Operating Temperature :
-20 ~ 70 °C
Storage Temperature :
-30 ~ 80 °C
Description

LS035 Series LS035Y8DX02A LS035Y8DX06 LS035Y8DX04A LS035Y8DX04

Sharp LS035Y8DX02A Application Features

Basic Information : Brand Name Model Name Type Model Alias
SHARP LS035Y8DX02A CG-Silicon , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
-20 ~ 70 °C -30 ~ 80 °C -

Sharp LS035Y8DX02A Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
500 cd/m² (Typ.) ASV, Normally Black, Transflective 500:1 (Typ.) (Transmissive) 10:1 (Typ.) (Reflective)
Good View at Viewing Angle Response Time
Symmetry 80/80/80/80 (Typ.)(CR≥5) 11/24 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
8266K 16.7M (8-bit) X:0.290; Y:0.310
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
52% 72% 54%
DCI-P3 Coverage Rec.2020 Coverage Remarks
54% 39% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25 (Typ.)(9 points)
Performance : 3D Technology Outdoor Visibility Reflectance
- Sunlight Readable 1.5% (Typ.)

Sharp LS035Y8DX02A Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
WLED Edge light type - 7S1P 1 string -
WLED Electrical : Input Voltage Input Current Power Consumption
21.7V (Typ.) 20mA (Typ.)
Interface Features : WLED Driver State Physical Type Interface Position
No Included in panel signal interface -

Sharp LS035Y8DX02A Mechanical Features

Screen Size : 3.5"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
480(RGB)×800, WVGA RGB Vertical Stripe 0.0315×0.0945 mm 0.0945×0.0945 mm [268PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
45.36×75.6 mm - 51.16×86.45 mm 2.0 (Typ.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 3:5 Portrait type
Other Spec : Mass Panel Cover Surface Treatment
16.6g (Typ.) - -

Sharp LS035Y8DX02A Electronics Features

Refresh Rate : 60Hz
Reverse Scan : No
Driver IC List: Built-in R63302

Sharp LS035Y8DX02A Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
1.8/2.8V (Typ.)(VDDIO/VCC) 20.5mA (Typ.)(IDD+ICC) -
Voltage for Display Signals : 0≤VIL≤0.2VDDIO; 0.8VDDIO≤VIH≤VDDIO
Interface Features : Signal Type Physical Type Interface Position
Parallel RGB (1 ch, 8-bit) + SPI Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
1 pcs 50 pins

Sharp LS035Y8DX02A Packing Features

Package Box : Amount Weight Size (L×W×H)
240 pcs / box 9.0 KGs 365×530×235 mm (L×W×H)

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
