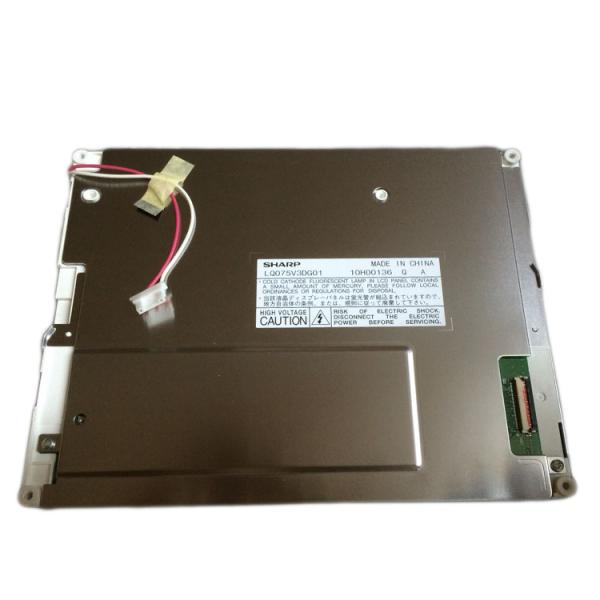

7.5 LCM 640×480RGB  400cd/m² LQ075V3DG01 Sharp TFT LCD Display

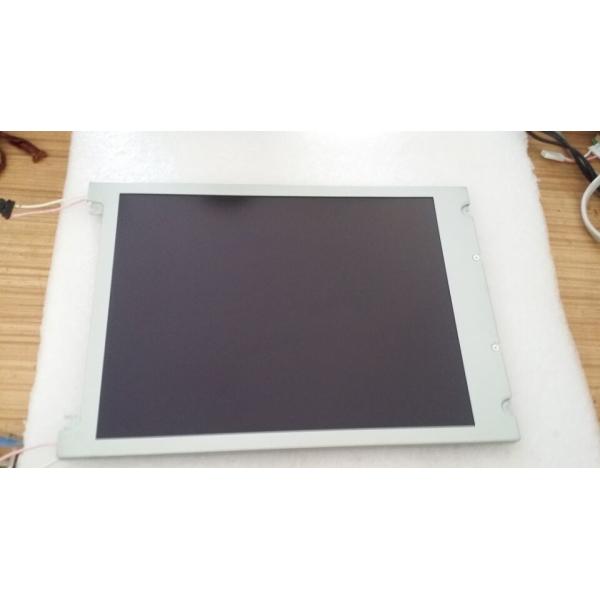

7.5 LCM 640×480RGB  400cd/m² LQ075V3DG01 Sharp TFT LCD Display
7.5 LCM 640×480RGB  400cd/m² LQ075V3DG01 Sharp TFT LCD Display
7.5 LCM 640×480RGB  400cd/m² LQ075V3DG01 Sharp TFT LCD Display
7.5 LCM 640×480RGB  400cd/m² LQ075V3DG01 Sharp TFT LCD Display
7.5 LCM 640×480RGB  400cd/m² LQ075V3DG01 Sharp TFT LCD Display
Specifications
Brand Name :
SHARP
Model Number :
LQ075V3DG01
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :
300PCS
Delivery Time :
1-2 DAYS
Packaging Details :
20 pcs / box 9.1 Kgs 456×378×257 mm (L×W×H)
Model Name :
LQ075V3DG01
Manufacturer :
Sharp
Luminance :
400 cd/m² (Typ.)
Screen Size :
7.5 inch
Signal Type :
Parallel RGB (1 ch, 6-bit) , 33 pins Connector
Backlight :
1 pcs CCFL , 50K hours , No Driver
Pixel Number :
640(RGB)×480 (VGA) 107PPI
Max. Ratings :
Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
Description

LQ075 Series LQ075V3DG03 LQ075V3DG01

Sharp LQ075V3DG01 Mechanical Features

Screen Size : 7.5"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
640(RGB)×480, VGA RGB Vertical Stripe 0.079×0.237 mm 0.237×0.237 mm [107PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
151.68×113.76 mm 156.3×118.4 mm 179×139.5 mm 12.7 (Typ.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
365g (Max.) - Antiglare

Sharp LQ075V3DG01 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
400 cd/m² (Typ.) TN, Normally White, Transmissive 600:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 70/70/60/65 (Typ.)(CR≥10) 5/21 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 262K (6-bit) X:0.313; Y:0.329

Sharp LQ075V3DG01 Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
CCFL Edge light type (Top side) 50K(Typ.) 1 pcs U shape -
CCFL Electrical : Input Voltage Input Current Power Consumption
850±85V 6.0±0.5mA
Operating Frequency Startup Voltage
50/80KHz (Min./Max.) 1500/2250V (Max.)(Ta=+25/-30℃)
Interface Features : CCFL Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST BHR-02(8.0)VS-1N 1 pcs 2 pins 8.0 mm BLL-2PINS-HL

Sharp LQ075V3DG01 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.)(VCC) 185mA (Typ.)(ICC) -
Voltage for Display Signals : VIL≤0.8V; 2.1V≤VIH
Interface Features : Signal Type Physical Type Interface Position
Parallel RGB (1 ch, 6-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
IRISO IMSA-9637S-33Y902 1 pcs 33 pins 0.5 mm DRGB-33P1C6B-020A

LQ075V3DG01 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 151.68(W)×113.76(H) mm, outline size of 179(W)×139.5(H) mm, viewing area size of 156.3(W)×118.4(H) mm, with surface treament of Antiglare, net weight of 365g (Max.). As a TN, Normally White, Transmissive LCM product, LQ075V3DG01 can provides 400 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/60/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/21 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, external backlight driver is additionally needed.
