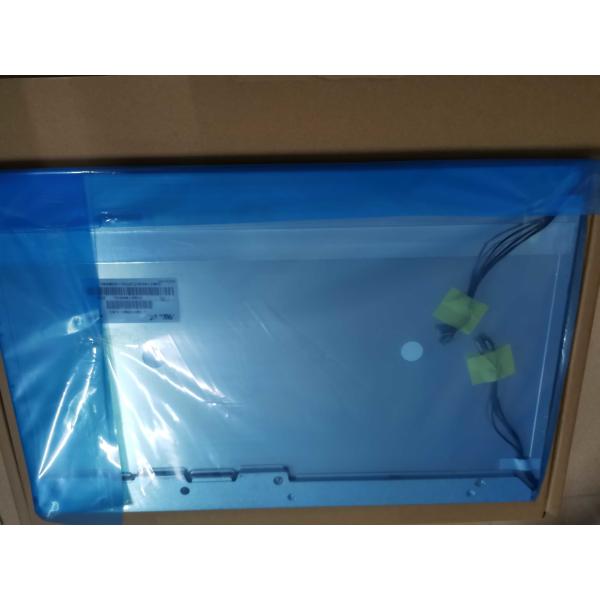

CMO 22.0 RGB 1680×1050 300nits TFT LCD Panel M220Z1-L03 85/85/80/80 (Typ.)(CR≥10)
CMO 22.0 RGB 1680×1050 300nits TFT LCD Panel M220Z1-L03 85/85/80/80 (Typ.)(CR≥10)
CMO 22.0 RGB 1680×1050 300nits TFT LCD Panel M220Z1-L03 85/85/80/80 (Typ.)(CR≥10)
CMO 22.0 RGB 1680×1050 300nits TFT LCD Panel M220Z1-L03 85/85/80/80 (Typ.)(CR≥10)
CMO 22.0 RGB 1680×1050 300nits TFT LCD Panel M220Z1-L03 85/85/80/80 (Typ.)(CR≥10)
CMO 22.0 RGB 1680×1050 300nits TFT LCD Panel M220Z1-L03 85/85/80/80 (Typ.)(CR≥10)
CMO 22.0 RGB 1680×1050 300nits TFT LCD Panel M220Z1-L03 85/85/80/80 (Typ.)(CR≥10)
CMO 22.0 RGB 1680×1050 300nits TFT LCD Panel M220Z1-L03 85/85/80/80 (Typ.)(CR≥10)
CMO 22.0 RGB 1680×1050 300nits TFT LCD Panel M220Z1-L03 85/85/80/80 (Typ.)(CR≥10)
CMO 22.0 RGB 1680×1050 300nits TFT LCD Panel M220Z1-L03 85/85/80/80 (Typ.)(CR≥10)
Specifications
Brand Name :
CMO
Model Number :
M220Z1-L03
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :
100PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
M220Z1-L03
BRAND :
CMO
SIZE :
22.0 inch
BRIGHTNESS :
300CD/M2
Lamp Type :
WLED
RESOLUTION :
1680(RGB)×1050 [WSXGA+] 90PPI
VIEWING ANGLEG :
85/85/80/80 (Typ.)(CR≥10)
TEMPERATURE RANGE :
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Description

CMO M220Z1-L03 Application Details

Basic Information : Brand Model M220Z1-L03
Type LCM a-Si TFT-LCD Used For
Screen Size 22.0" Alias -
Environment : Storage Temp. -20 ~~ 60 °C Operating Temp. 0 ~~ 50 °C
RoHS Vibration -

CMO M220Z1-L03 Mechanical Details

Pixel Features : Resolution 1680(RGB)×1050, WSXGA+ Dot Pitch(mm) 0.094×0.282 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.282×0.282 (H×V) [90PPI]
Mechanical Size : Active Area(mm) 473.76(H) × 296.1(V) Bezel Area(mm) 477.7(H) × 300.1(V)
Outline Dim.(mm) 493.7(H) × 320.1(V) Depth(mm) 16.5/17.0 (Typ./Max.)
Outline Features : Form Style Flat Rectangle Outline Shape Normal bezel
Aspect Ratio 16:10 (H:V) Orientation Landscape type
Mounting : Side mounting holes (8-M3)
Other Spec : Weight 2.82/2.87Kgs (Typ./Max.) Treatment Antiglare (Haze 25%), Hard coating (3H)

CMO M220Z1-L03 Optical Details

Basic Information : Luminance(cd/m²) 300 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive
Best View on - Response(ms) 1.3/3.7 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.313; Y:0.329 Display Colors 16.7M (6-bit + Hi-FRC)
Color Temperature 6485K White Uniformity 1.33 (Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 73% sRGB 97% coverage
Adobe RGB 76% coverage DCI-P3 76% coverage
Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

CMO M220Z1-L03 Interface Details

Signal Electrical : Voltage Supply 5.0V (Typ.) Current Supply 1.17/1.521A (Typ./Max.)
Consumption 5.85/7.6W (Typ./Max.)
Signal Type : LVDS (2 ch, 8-bit) Signal Voltage -
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
JAE FI-X30SSL-HF 1 pcs 30 pins 1.0 mm LVDS-30P2C8B-160A

CMO M220Z1-L03 Backlight Details

Backlight Features: Shape Straight Type CCFL Position Edge light type (Top and Bottom)
Replacement - Quantity 4 pcs Life Time 50K(Min.) (Hours)
Lamp Electrical : Voltage Supply 820±82V Current Supply 3.0/7.0/8.0mA (Min./Typ./Max.)
Frequency 40/60/80KHz (Min./Typ./Max.) Startup Voltage 1350/1550V (Max.)(Ta=+25/0℃)
Consumption 22.96W (Typ.)
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
YEONHO 35001HS-02L 4 pcs 2 pins 3.5 mm BLL-2PINS-HL
Backlight Driver : No

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
