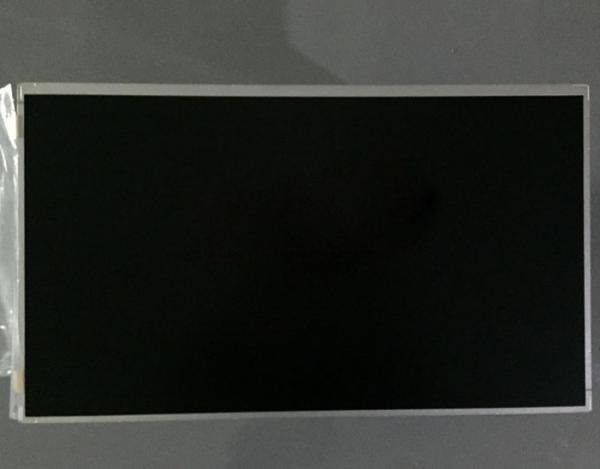

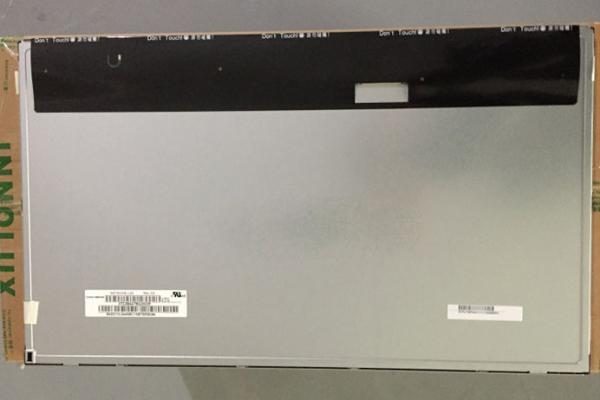

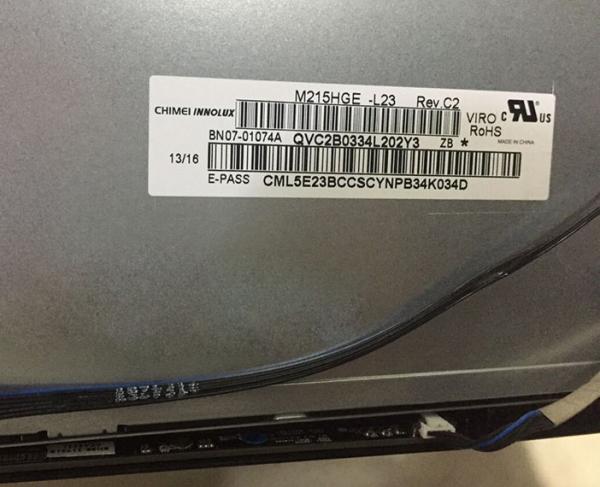

1920×1080 102PPI 200nits TFT LCD Panel M215HGE-L23 INNOLUX CHIMEI
1920×1080 102PPI 200nits TFT LCD Panel M215HGE-L23 INNOLUX CHIMEI
1920×1080 102PPI 200nits TFT LCD Panel M215HGE-L23 INNOLUX CHIMEI
1920×1080 102PPI 200nits TFT LCD Panel M215HGE-L23 INNOLUX CHIMEI
1920×1080 102PPI 200nits TFT LCD Panel M215HGE-L23 INNOLUX CHIMEI
1920×1080 102PPI 200nits TFT LCD Panel M215HGE-L23 INNOLUX CHIMEI
1920×1080 102PPI 200nits TFT LCD Panel M215HGE-L23 INNOLUX CHIMEI
1920×1080 102PPI 200nits TFT LCD Panel M215HGE-L23 INNOLUX CHIMEI
Specifications
Brand Name :
INNOLUX
Model Number :
M215HGE-L23
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :
500PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
M215HGE-L23
BRAND :
INNOLUX
SIZE :
21.5 inch
BRIGHTNESS :
200CD/M2
Lamp Type :
WLED
RESOLUTION :
1920(RGB)×1080, FHD, 102PPI
VIEWING ANGLEG :
45/45/20/45 (Typ.)(CR≥10)
TEMPERATURE RANGE :
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Description

Chimei Innolux M215HGE-L23 Application Details

Basic Detail : Manufacturer Model Name M215HGE-L23
Panel Type a-Si TFT-LCD , LCM Another Name -
Panel Size 21.5 inch Designed For
Maximum Ratings : OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C
Vibration Level - RoHS

Chimei Innolux M215HGE-L23 Optical Details

Basic Information : Luminance 200 cd/m² (Typ.) Contrast Ratio 700 : 1 (Typ.) (Transmissive)
Good View at 6 o'clock Response Speed 1.5/3.5 (Typ.)(Tr/Td) (ms)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit)
Color Temperature 6485K White Uniformity 1.43 (Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 72% sRGB 92% coverage
Adobe RGB 71% coverage DCI-P3 75% coverage
Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Chimei Innolux M215HGE-L23 Mechanical Details

Pixel Features : Number of Pixel 1920(RGB)×1080 [FHD] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.08275×0.24825 mm Pixel Pitch(W×H) 0.24825×0.24825 mm [102PPI]
Physical Size : Active Viewing 476.64(W)×268.11(H) mm Overall Dim. 495.6(W)×292.2(H) mm
Bezel Opening 479.8(W)×271.3(H) mm Overall Depth 8.3/11.5 (Typ./Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:9 Shape Style Normal bezel
Fixation : Side mounting holes (4-M3) on up, down bezel
Other Detail : Mass 2.10/2.16Kgs (Typ./Max.) Surface Antiglare (Haze 25%), Hard coating (3H)

Chimei Innolux M215HGE-L23 Interface Details

Signal Electrical : Input Current 1.2/1.4A (Typ./Max.) Input Voltage 5.0V (Typ.)
Consumption 6.0/7.7W (Typ./Max.) Signal Interface LVDS (2 ch, 8-bit)
Interface Features : Position Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
FCN WF13-422-3033 1 pcs 1.0 mm 30 pins LVDS-30P2C8B-160A

Chimei Innolux M215HGE-L23 Lightting Details

Lamp Features: Lamp Shape 4 strings Lamp Type WLED Position Edge light type (Right side)
Exchange - Amount 11S4P Life 40K(Min.) (Hours)
Lamp Electrical : Input Current 65/70mA (Typ./Max.) Input Voltage 34.1/37.5V (Typ./Max.)
Consumption 8.87/11.25W (Typ./Max.)
Interface Features : Position Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
FCN WM13-406-063N 1 pcs 1.0 mm 6 pins BLE-6PINS-CCAACC
Backlight Driver : No

Chimei Innolux M215HGE-L23 Packing Details

Package Box : Amount Size (L×W×H) Weight
13 pcs / box 567×301×376 mm 27.525 Kgs

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
