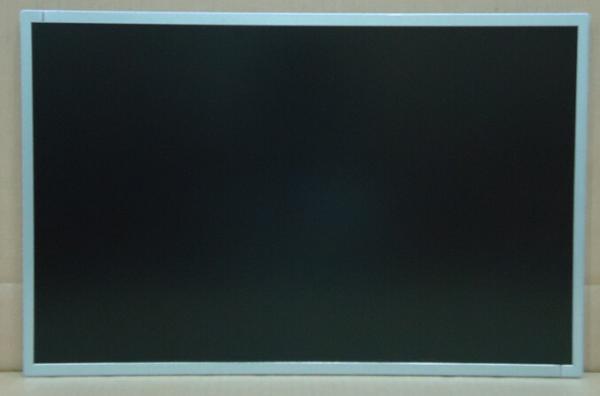

21.5 1920×1080 RGB 250nits TFT LCD Panel M215HJJ-L30 Rev.B1 8/88/88/88 (Typ.)(CR≥10)
21.5 1920×1080 RGB 250nits TFT LCD Panel M215HJJ-L30 Rev.B1 8/88/88/88 (Typ.)(CR≥10)
21.5 1920×1080 RGB 250nits TFT LCD Panel M215HJJ-L30 Rev.B1 8/88/88/88 (Typ.)(CR≥10)
21.5 1920×1080 RGB 250nits TFT LCD Panel M215HJJ-L30 Rev.B1 8/88/88/88 (Typ.)(CR≥10)
21.5 1920×1080 RGB 250nits TFT LCD Panel M215HJJ-L30 Rev.B1 8/88/88/88 (Typ.)(CR≥10)
21.5 1920×1080 RGB 250nits TFT LCD Panel M215HJJ-L30 Rev.B1 8/88/88/88 (Typ.)(CR≥10)
Specifications
Brand Name :
INNOLUX
Model Number :
M215HJJ-L30 Rev.B1
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :
200PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
M215HJJ-L30 Rev.B1
BRAND :
INNOLUX
SIZE :
21.5 inch
BRIGHTNESS :
250CD/M2
Lamp Type :
WLED
RESOLUTION :
1920(RGB)×1080 [FHD] 102PPI
VIEWING ANGLEG :
8/88/88/88 (Typ.)(CR≥10)
TEMPERATURE RANGE :
perating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Description

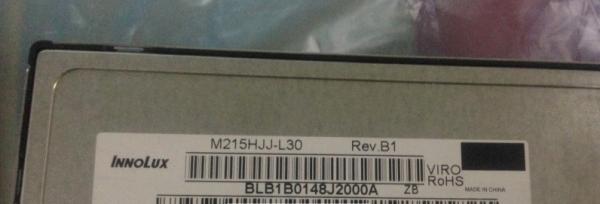

Innolux M215HJJ-L30 Rev.B1 Application Details

Basic Information : Brand Model M215HJJ-L30 Rev.B1
Type LCM a-Si TFT-LCD Used For




Screen Size 21.5" Alias -
Environment : Storage Temp. -20 ~~ 60 °C Operating Temp. 0 ~~ 50 °C
RoHS Vibration 1.5G (14.7 m/s²)

Innolux M215HJJ-L30 Rev.B1 Mechanical Details

Pixel Features : Resolution 1920(RGB)×1080, FHD Dot Pitch(mm) 0.08265×0.24795 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.24795×0.24795 (H×V) [102PPI]
Mechanical Size : Active Area(mm) 476.064(H) × 267.786(V) Bezel Area(mm) 479.84(H) × 271.3(V)
Outline Dim.(mm) 495.6(H) × 292.2(V) Depth(mm) 8.3/11.5 (Typ./Max.)
Outline Features : Form Style Flat Rectangle Outline Shape Normal bezel
Aspect Ratio 16:9 (H:V) Orientation Landscape type
Mounting : Side mounting holes (4-M3) on up, down bezel
Other Spec : Weight 1.91/2.10Kgs (Typ./Max.) Treatment Antiglare (Haze 25%), Hard coating (3H)

Innolux M215HJJ-L30 Rev.B1 Optical Details

Basic Information : Luminance(cd/m²) 250 (Typ.) Contrast Ratio 3000:1 (Typ.) (Transmissive)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) Display Mode MVA, Normally Black, Transmissive
Best View on Symmetry Response(ms) 15/5 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.313; Y:0.329 Display Colors 16.7M (8-bit)
Color Temperature 6485K White Uniformity 1.43 (Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 73% sRGB 95% coverage
Adobe RGB 74% coverage DCI-P3 75% coverage
Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Innolux M215HJJ-L30 Rev.B1 Electronics Details

Frame Rate : 60Hz
Reverse Scan : No
Power Consumption : 17.5W (Typ.)

Innolux M215HJJ-L30 Rev.B1 Interface Details

Signal Electrical : Voltage Supply 5.0V (Typ.) Current Supply 744/897mA (Typ./Max.)
Consumption 4.8/5.6W (Typ./Max.)
Signal Type : LVDS (2 ch, 8-bit) Signal Voltage -
Interface Features : Position Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
FCN WF13-422-3033 1 pcs 30 pins 1.0 mm LVDS-30P2C8B-160A

Innolux M215HJJ-L30 Rev.B1 Backlight Details

Backlight Features: Shape 4 strings Type WLED Position Edge light type (Left side)
Replacement - Quantity 4 strings Life Time 40K(Min.) (Hours)
Lamp Electrical : Voltage Supply 38.4/42.0V (Typ./Max.) Current Supply 85/90mA (Typ./Max.)
Consumption 13.06/14.3W (Typ./Max.)
Interface Features : Position Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
CviLux CI1406M1HRF-NH 1 pcs 6 pins 1.0 mm BLE-6PINS-CCAACC
Backlight Driver : No

Innolux M215HJJ-L30 Rev.B1 Packing Details

Package Box : Quantity Weight Box Size
12 pcs / box 25.62 Kgs 576×301×376 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
