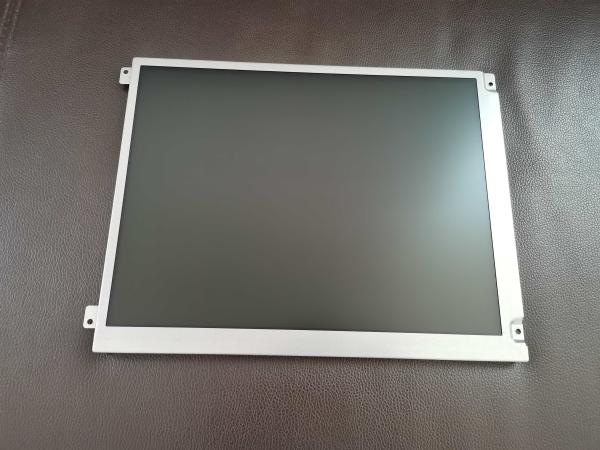

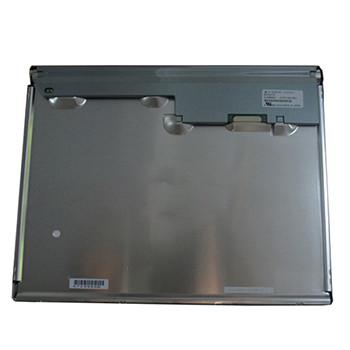

AA150XT01--T1 Mitsubishi 15INCH 1024×768 RGB 640CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD
AA150XT01--T1 Mitsubishi 15INCH 1024×768 RGB 640CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD
AA150XT01--T1 Mitsubishi 15INCH 1024×768 RGB 640CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD
AA150XT01--T1 Mitsubishi 15INCH 1024×768 RGB 640CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD
AA150XT01--T1 Mitsubishi 15INCH 1024×768 RGB 640CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD
AA150XT01--T1 Mitsubishi 15INCH 1024×768 RGB 640CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD
Specifications
Brand Name :
Mitsubishi
Model Number :
AA150XT01--T1
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Price :
150USD
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :
50PCS
Delivery Time :
3DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
AA150XT01--T1
BRAND :
Mitsubishi
SIZE :
15INCH
RESOLUTION :
1024×768 RGB
BRIGHTNESS :
640CD/M2
Lamp Type :
WLED
INTERFACE TYPE :
LVDS
TEMPERATURE RANGE :
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C
Description

Mitsubishi AA150XT01--T1 Application Details

Basic Detail :
Manufacturer
AA150XT01--T1 Mitsubishi 15INCH 1024×768 RGB 640CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD
Model Name
AA150XT01--T1
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
15.0 inch
Designed For
  • AA150XT01--T1 Mitsubishi 15INCH 1024×768 RGB 640CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-20 ~ 80 °C
RoHS
AA150XT01--T1 Mitsubishi 15INCH 1024×768 RGB 640CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD
Vibration Level
1.0G (9.8 m/s²)

Mitsubishi AA150XT01--T1 Optical Details

Basic Detail :
Luminance
640 cd/m² (Typ.)
Contrast Ratio
760:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
6/19 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/60/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.30 (Max.)(5 points) AA150XT01--T1 Mitsubishi 15INCH 1024×768 RGB 640CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD
1931 Color Gamlt :
NTSC Ratio
50%
sRGB
68% coverage
Adobe RGB
52% coverage
DCI-P3
52% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Mitsubishi AA150XT01--T1 Mechanical Details

Pixel Features :
Number of Pixel
1024(RGB)×768, XGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.099×0.297 mm
Pixel Pitch(W×H)
0.297×0.297 mm [85PPI]
Physical Size :
Active Viewing
304.128(W)×228.096(H) mm
Overall Dim.
326(W)×255(H) mm
Bezel Opening
308.1(W)×232.1(H) mm
Overall Depth
19.2 (Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style
Touchscreen :
TP Controller
Without touch controller
TP Interface
-
Touch Points
-
TP Technology
4-wire Resistive Touch
Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
1.51Kgs (Typ.)
Surface
Antiglare, Hard coating (3H)

Mitsubishi AA150XT01--T1 Electronics Details

Refresh Rate :
60Hz AA150XT01--T1 Mitsubishi 15INCH 1024×768 RGB 640CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD
Reverse Scan :
Yes (180°)
Total Consumption :
12.0W (Typ.)

Mitsubishi AA150XT01--T1 Interface Detail

Signal Electrical :
Input Current
410/700mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment AA150XT01--T1 Mitsubishi 15INCH 1024×768 RGB 640CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD
HRS
DF14H-20P-1.25H(56)
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-010H

Mitsubishi AA150XT01--T1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
7S4P
Position
Edge light type (Bottom side)
Exchange
Replaceable
Lamp Shape
4 strings
Lamp Life
100K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
24/30.8V (Typ./Max.)
Input Current
110/120mA (Typ./Max.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment AA150XT01--T1 Mitsubishi 15INCH 1024×768 RGB 640CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD
JST
SM10B-SHLS-TF(LF)(SN)
1.0 mm
10 pins
1 pcs
BLE-10PINS-NNCAACCAAC
Backlight Driver :
No
