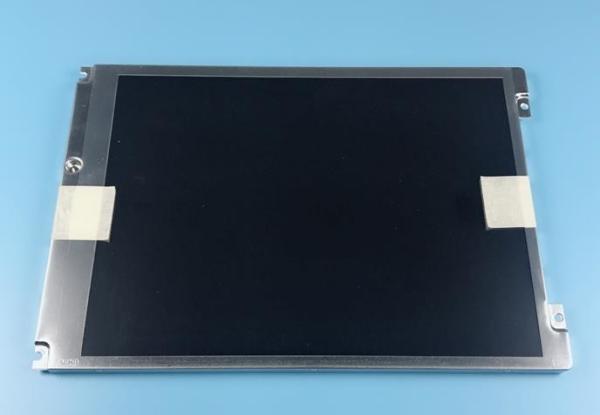

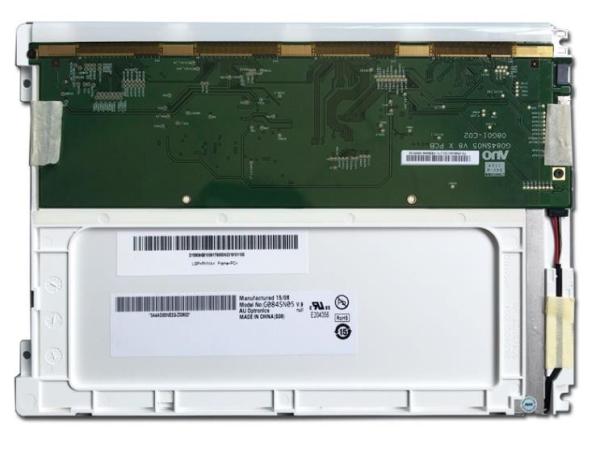

G084SN05 V7 AUO 8.4INCH 800×600RGB 450CD/M2 CCFL LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
G084SN05 V7 AUO 8.4INCH 800×600RGB 450CD/M2 CCFL LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
G084SN05 V7 AUO 8.4INCH 800×600RGB 450CD/M2 CCFL LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
G084SN05 V7 AUO 8.4INCH 800×600RGB 450CD/M2 CCFL LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
G084SN05 V7 AUO 8.4INCH 800×600RGB 450CD/M2 CCFL LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
G084SN05 V7 AUO 8.4INCH 800×600RGB 450CD/M2 CCFL LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
AUO
Model Number :
G084SN05 V7
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :
180PCS
Delivery Time :
1-2 DAYS
Packaging Details :

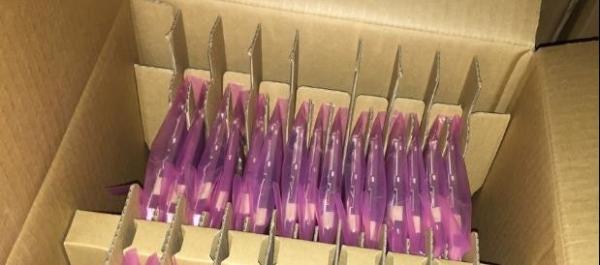

30 pcs / box 9.6 Kgs 405×328×301 mm
MODEL NUMBER :
G084SN05 V7
BRAND :
AUO
SIZE :
8.4INCH
RESOLUTION :
800×600 RGB
BRIGHTNESS :
450CD/M2
TEMPERATURE RANGE :
Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C
Description

AUO G084SN05 V7 Application Details

Basic Info :
Panel Brand
Panel Model
G084SN05 V7
Diagonal Size
8.4"
Application
Panel Type
a-Si TFT-LCD , LCM
Model Alias
G084SN05 V.7
Reliability :
Operating Temp.
-30 ~ 85 °C
Storage Temp.
-30 ~ 85 °C
RoHS State
Vibration Rating
1.5G (14.7 m/s²)
Specific Features :
Remarks :
Mass Production: May 2008, EOL: Jan. 2012, Last Time Buy: Oct. 2011

AUO G084SN05 V7 Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×600, SVGA
Dot Pitch
0.071×0.213 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.213×0.213 mm (H×V) [119PPI]
Mechanical Size :
Display Area
170.4×127.8 mm (H×V)
Bezel Area
174.15×131.2 mm (H×V)
Outline Dim.
203×142.5 mm (H×V)
Outline Depth
8.0±0.3 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style
Holes & Brackets :
Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel
Other Features :
Weight
260±10g
Surface
Antiglare, Hard coating (3H)

AUO G084SN05 V7 Optical Details

Basic Information :
Brightness
450 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/60 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
12 o'clock
Response Time
20/10 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.310; Wy:0.330
Color Numbers
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6638K
Uniformity
1.43 (Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
45%
sRGB
62% coverage
Adobe RGB
47% coverage
DCI-P3
47% coverage
Rec.2020
34% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G084SN05 V7 Interface Detail

Signal Systerm :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
270/330mA (Typ./Max.)
Consumption
0.9/1.2W (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
STM
MSB24013P20
1.0 mm
20 pins
1 pcs
LVDS-20P1C8B-140A

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
