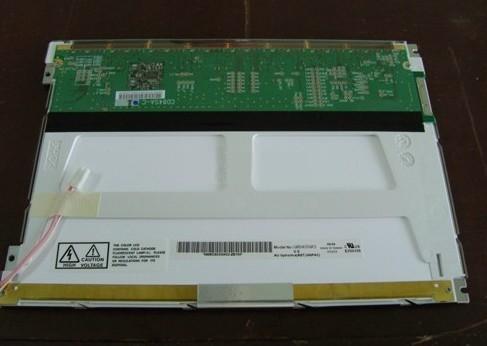

G084SN03 V1 AUO 8.4INCH 800×600RGB 250CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
G084SN03 V1 AUO 8.4INCH 800×600RGB 250CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
G084SN03 V1 AUO 8.4INCH 800×600RGB 250CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
G084SN03 V1 AUO 8.4INCH 800×600RGB 250CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
G084SN03 V1 AUO 8.4INCH 800×600RGB 250CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
G084SN03 V1 AUO 8.4INCH 800×600RGB 250CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
AUO
Model Number :
G084SN03 V1
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :
300PCS
Delivery Time :
1-2 DAYS

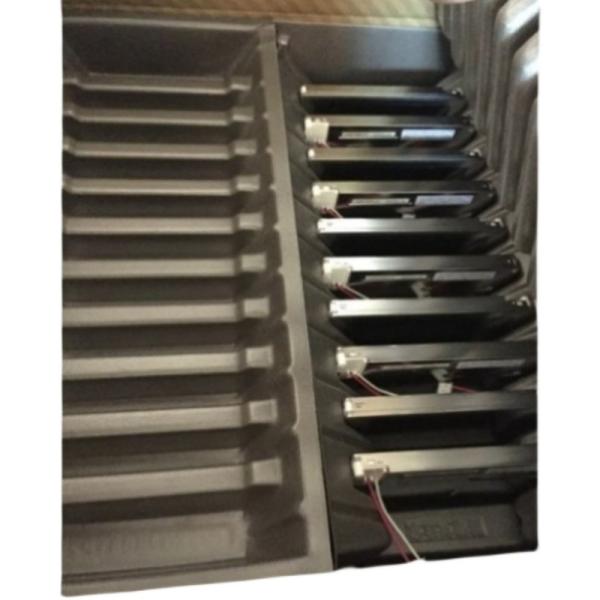

Packaging Details :
30 pcs / box 12 Kgs 600×353×210 mm (L×W×H)
MODEL NUMBER :
G084SN03 V1
BRAND :
AUO
SIZE :
8.4INCH
RESOLUTION :
800×600 RGB
BRIGHTNESS :
250CD/M2
TEMPERATURE RANGE :
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C
Description

AUO G084SN03 V1 Application Features

Basic Information : Brand Model Type Model Alias
G084SN03 V1 a-Si TFT-LCD , LCM G084SN03 V.1
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
-30 ~ 85 °C -30 ~ 85 °C -

AUO G084SN03 V1 Mechanical Features

Panel Size : 8.4 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
800(RGB)×600, SVGA RGB Vertical Stripe 0.071×0.213 mm 0.213×0.213 mm [119PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
170.4×127.8 mm 173.8×131.2 mm 203×142.5 mm 6.0 (Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 4:3 (W : H) Landscape type
Fixation : Face mounting holes (2-Φ3.0, 2-R1.5)
Other Features : Panel Cover Weight Surface
- 200±10g Antiglare, Hard coating (3H)

AUO G084SN03 V1 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
250 cd/m² (Typ.) TN, Normally White, Transmissive 600:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
80/80/80/60 (Typ.)(CR≥10) 12 o'clock 20/10 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6638K 262K/16.2M (6-bit / 6-bit + FRC) X:0.310; Y:0.330
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
46% 64% 48%
DCI-P3 Coverage Rec.2020 Coverage Remarks
48% 34% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.43 (Max.)(9 points)

AUO G084SN03 V1 Electronics Features

Frame Rate : 60Hz
Reverse Scan : Yes (U/D, L/R)

AUO G084SN03 V1 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
300/330mA (Typ./Max.) 3.3V (Typ.) 1W (Typ.)
Interface Features : Position Type Interface
- Connector LVDS (1 ch, 6/8-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
STM MSB24013P20 1 pcs 1.0 mm 20 pins LVDS-20P1C8B-140A

AUO G084SN03 V1 Backlight Features

Backlight Features: Type Position Shape Amount Life(Hours) Replacement
CCFL Edge light type (Bottom side) - 1 pcs 30K(Min.) Replaceable
CCFL Electrical : Current Input Voltage Input Consumption
3.0/4.6/7.0mA (Min./Typ./Max.) 410/460/530V (Min./Typ./Max.) 1.23/2.12/3.71W (Min./Typ./Max.)
Turn-on Voltage Lamp Frequency
890/1150V (Max.)(Ta=+25/0℃) 40/50/60KHz (Min./Typ./Max.)
Interface Features : Position Type CCFL Driver
- Connector No
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
JST BHSR-02VS-1 1 pcs 3.5 mm 2 pins BLL-2PINS-HL

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
