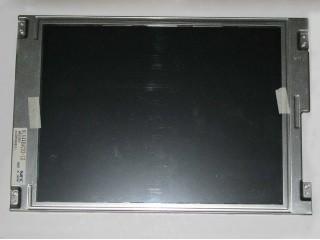

NL6448AC33-10 10.4 NEC TN, Normally White, Transmissive CMOS (1 ch, 4-bit) , 34 pins Connector
NL6448AC33-10 10.4 NEC TN, Normally White, Transmissive CMOS (1 ch, 4-bit) , 34 pins Connector
NL6448AC33-10 10.4 NEC TN, Normally White, Transmissive CMOS (1 ch, 4-bit) , 34 pins Connector
NL6448AC33-10 10.4 NEC TN, Normally White, Transmissive CMOS (1 ch, 4-bit) , 34 pins Connector
NL6448AC33-10 10.4 NEC TN, Normally White, Transmissive CMOS (1 ch, 4-bit) , 34 pins Connector
NL6448AC33-10 10.4 NEC TN, Normally White, Transmissive CMOS (1 ch, 4-bit) , 34 pins Connector
Specifications
Brand Name :
NEC
Model Number :
NL6448AC33-10
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1PCS
Payment Terms :
TT / Escrow 10 / Paypal / WesternUnion
Supply Ability :
500PCS
Delivery Time :
2-3Working Day
Packaging Details :
With Original Factory Package
Resolution :
640(RGB)×480 (VGA) 76PPI
Panel Type :
LCM, a-Si TFT-LCD
Pixel Format :
RGB Vertical Stripe
Brightness :
90 cd/m² (Typ.)
Viewing Angle :
45/45/25/25 (Typ.)(CR≥10
Max. Ratings :
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
Diagonal Size :
10.4 Inch
Input Voltage :
5.0V
Description

NEC NL6448AC33-10 Overview

The NL6448AC33-10 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, With Inverter , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .It's general features are summarized by Panelook in the following: With Inverter . Based on its features, Panelook recommend that this model be applied to Laptop etc. According to the information stored in Panelook this model mass production on Q4, 1994, Now this model is discontinued. There are 1 items stock and 5 suppliers of this model on Panelook. We inputted this model's specification on Mar 30 2013 for the first time, and the latest update on Jul 27 2023. If you want to embed NL6448AC33-10 LCM in your future product, Panelook strongly recommend that you should contact with NEC or it's agent to learn lateast production and specification detail. The NL6448AC33-10 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

NEC NL6448AC33-10 Mechanical Details

Pixel Features : Resolution 640(RGB)×480, VGA Dot Pitch(mm) 0.110×0.330 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.330×0.330 (H×V) [76PPI]
Mechanical Size : Active Area(mm) 211.2(H) × 158.4(V) Bezel Area(mm) 220.9(H) × 166.0(V)
Outline Dim.(mm) 270(H) × 183(V) Depth(mm) 13.0 (Max.)
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting : Face mounting holes (4-Φ3.5) on left, right bezel
Other Spec : Weight 700g (Typ.) Treatment -

NEC NL6448AC33-10 Interface Details

Signal Electrical : Voltage Supply 5.0V (Typ.) Current Supply 200mA (Typ.)
Signal Type : CMOS (1 ch, 4-bit) Signal Voltage -
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
JAE IL-Z-R10PL-SMTY 1 pcs 10 pins 1.25 mm
JAE IL-Z-R13PL-SMTY 1 pcs 13 pins 1.25 mm
JAE IL-Z-R11PL-SMTY 1 pcs 11 pins 1.25 mm

NEC NL6448AC33-10 Backlight Details

Backlight Features: Shape Straight Type CCFL Position Edge light type
Replacement - Quantity 1 pcs Life Time -
Backlight Driver : With Inverter
Driver Electrical : Voltage Supply 5.2/20V (Min./Max.) Current Supply -
Consumption 3.8 / 2.7W (Typ.) (12V / 7.2V)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

NL6448AC33-10 10.4 NEC TN, Normally White, Transmissive CMOS (1 ch, 4-bit) , 34 pins Connector
