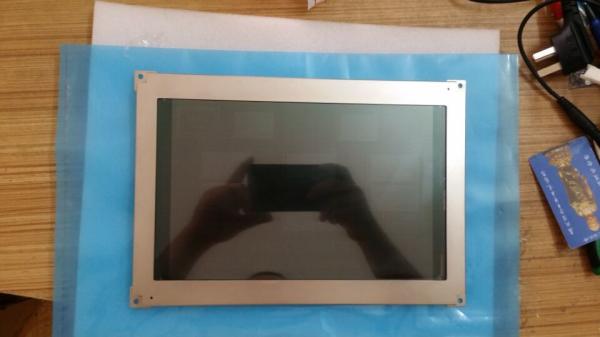

NL6448AC33-15 NEC 10.4 640(RGB)×480, VGA  76PPI 200 cd/m² 50/50/15/45
NL6448AC33-15 NEC 10.4 640(RGB)×480, VGA  76PPI 200 cd/m² 50/50/15/45
NL6448AC33-15 NEC 10.4 640(RGB)×480, VGA  76PPI 200 cd/m² 50/50/15/45
NL6448AC33-15 NEC 10.4 640(RGB)×480, VGA  76PPI 200 cd/m² 50/50/15/45
NL6448AC33-15 NEC 10.4 640(RGB)×480, VGA  76PPI 200 cd/m² 50/50/15/45
NL6448AC33-15 NEC 10.4 640(RGB)×480, VGA  76PPI 200 cd/m² 50/50/15/45
Specifications
Brand Name :
NEC
Model Number :
NL6448AC33-15
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability :
800PCS
Delivery Time :
1-2day
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
NL6448AC33-15
BRAND :
NEC
SIZE :
10.4INCH
RESOLUTION :
640×480RGB
BRIGHTNESS :
200CD/M2
Lamp Type :
CCFL
TEMPERATURE RANGE :
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
Description

NEC NL6448AC33-15 Application Details

Basic Detail : Manufacturer Model Name NL6448AC33-15
Panel Type a-Si TFT-LCD , LCM Another Name -
Panel Size 10.4 inch Designed For
Maximum Ratings : OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C

NEC NL6448AC33-15 Optical Details

Basic Information : Luminance 200 cd/m² (Typ.) Contrast Ratio 150 : 1 (Typ.) (Transmissive)
Good View at 6 o'clock Response Speed 40 (Max.)(Tr) (ms)
Viewing Angle 50/50/15/45 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity - Support Color Full colo

NEC NL6448AC33-15 Mechanical Details

Pixel Features : Number of Pixel 640(RGB)×480 [VGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.110×0.330 mm Pixel Pitch(W×H) 0.330×0.330 mm [76PPI]
Physical Size : Active Viewing 211.2(W)×158.4(H) mm Overall Dim. 251(W)×196(H) mm
Bezel Opening 216.2(W)×161.4(H) mm Overall Depth 12.0/24.0 (Typ./Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style
Fixation : Face mounting holes (4-Φ3.4) on left, right bezel
Other Detail : Mass 750g (Typ.) Surface

NEC NL6448AC33-15 Electronics Details

Refresh Rate : 60Hz
Reverse Scan : Yes (180°)
Power Consumption : 9.4W (Typ.)

NEC NL6448AC33-15 Interface Details

Signal Electrical : Input Current 80/150mA (Typ.)(ICC/IDD1) Input Voltage 5.0/12.0V (Typ.)(VCC/VDD1)
Consumption - Signal Interface Analog RGB
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JAE IL-Z-10PL-SMTY 1 pcs 1.25 mm 10 pins
JAE IL-Z-13PL-SMTY 1 pcs 1.25 mm 13 pins

NEC NL6448AC33-15 Lightting Details

Lamp Features: Lamp Shape Straight Lamp Type CCFL Position Edge light type (Top and Bottom)
Exchange Replaceable Amount 2 pcs Life -
Backlight Driver : With Inverter
Driver Electrical : Input Current 0.60A (Typ.) Input Voltage 12.0V (Typ.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 251(W)×196(H)×24(D) mm, viewing area size of 216.2(W)×161.4(H) mm, net weight of 750g (Typ.). As a TN, Normally White, Transmissive LCM product, NL6448AC33-15 can provides 200 cd/m² display brightness 150:1 transimissive contrast ratio, 50/50/15/45 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 40 (Max.)(Tr) ms., thus presenting a palette of Full color colors, also with performance of color gamut 55% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom), With Inverter. NL6448AC33-15 utilizes Analog RGB as it's signal inputting systerm, which connected by 23 pins Connector with power supply voltage of 5.0/12.0V (Typ.)(VCC/VDD1).

NL6448AC33-15 NEC 10.4
