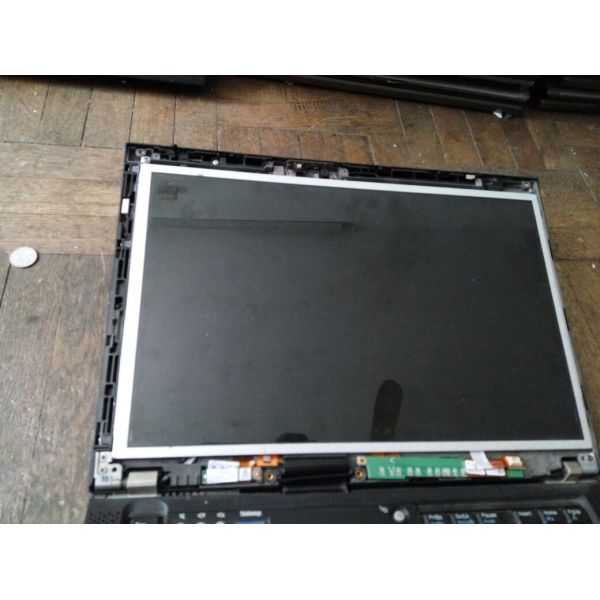

14.1 1280x800 220cd/M2 Lcd Video Panel 107PPI LP141WX5-TLP2 40/40/10/30 (Min.)(CR≥10)
14.1 1280x800 220cd/M2 Lcd Video Panel 107PPI LP141WX5-TLP2 40/40/10/30 (Min.)(CR≥10)
14.1 1280x800 220cd/M2 Lcd Video Panel 107PPI LP141WX5-TLP2 40/40/10/30 (Min.)(CR≥10)
14.1 1280x800 220cd/M2 Lcd Video Panel 107PPI LP141WX5-TLP2 40/40/10/30 (Min.)(CR≥10)
Specifications
Brand Name :
LG Display
Model Number :
LP141WX5-TLP2
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :
120PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
LP141WX5-TLP2
BRAND :
LG Display
SIZE :
14.1INCH
BRIGHTNESS :
220CD/M2
Lamp Type :
WLED
RESOLUTION :
1280(RGB)×800 (WXGA) 107PPI
VIEWING ANGLEG :
40/40/10/30 (Min.)(CR≥10)
TEMPERATURE RANGE :
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Description

LG Display LP141WX5-TLP2 Application Details

Basic Information : Brand Model LP141WX5-TLP2
Type LCM a-Si TFT-LCD Used For
Screen Size 14.1" Alias LP141WX5 (TL)(P2), LEN4035
Environment : Storage Temp. -20 ~~ 60 °C Operating Temp. 0 ~~ 50 °C

LG Display LP141WX5-TLP2 Mechanical Details

Pixel Features : Resolution 1280(RGB)×800, WXGA Dot Pitch(mm) 0.0791×0.2373 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.2373×0.2373 (H×V) [107PPI]
Mechanical Size : Active Area(mm) 303.74(H) × 189.84(V) Bezel Area(mm) 310.3(H) × 194.2(V)
Outline Dim.(mm) 319.5(H) × 205.5(V) Depth(mm) 5.5 (Max.)
Outline Features : Form Style Flat Rectangle Outline Shape Wedge (PCBA Bent, T≥5.2mm)
Aspect Ratio 16:10 (H:V) Orientation Landscape type
Mounting : Side mounting holes (8-M2) on left, right bezel
Other Spec : Weight 400g (Max.) Treatment Antiglare

LG Display LP141WX5-TLP2 Optical Details

Basic Information : Luminance(cd/m²) 220 (Typ.) Contrast Ratio 300:1 (Typ.) (Transmissive)
Viewing Angle 40/40/10/30 (Min.)(CR≥10) Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock Response(ms) 16 (Typ.)(Tr+Td)
Color Performance : White Coordinate X:0.313; Y:0.329 Display Colors 262K (6-bit)
Color Temperature 6485K White Uniformity 1.43/1.67 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 42% sRGB 58% coverage
Adobe RGB 44% coverage DCI-P3 43% coverage
Rec.2020 31% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP141WX5-TLP2 Interface Details

Signal Electrical : Voltage Supply 3.3V (Typ.) Current Supply 360±55mA
Consumption 1.2/1.4W (Typ./Max.)
Signal Type : LVDS (1 ch, 6-bit) Signal Voltage -
Interface Features : Position Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
LS Mtron GT101-30S-HR11 1 pcs 30 pins 1.0 mm LVDS-30P1C6B-060B

LG Display LP141WX5-TLP2 Backlight Details

Backlight Features: Shape - Type WLED Position Edge light type
Replacement - Quantity - Life Time 15K(Min.) (Hours)
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
AMP 1-179397-2 1 pcs 12 pins 0.8 mm BLE-12PINS-ACACACNCNCNC
Backlight Driver : No

LG Display LP141WX5-TLP2 Packing Details

Package Box : Quantity Weight Box Size
30 pcs / box - 484×372×288 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

14.1
