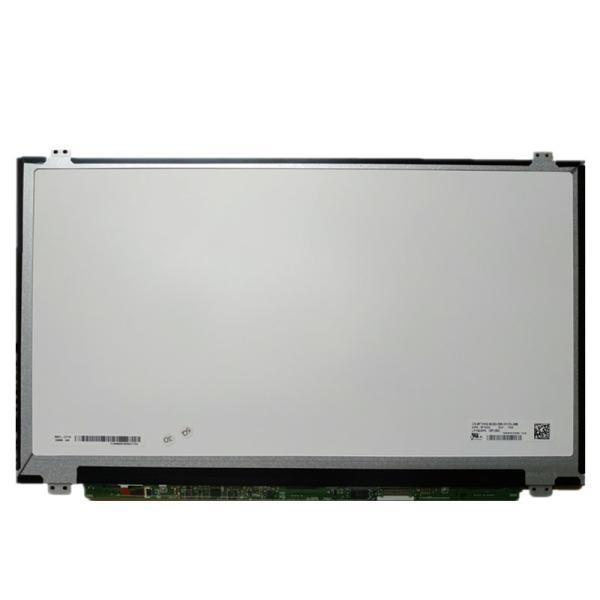

LP156WF6-SPK1 LG Display 15.6 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
LP156WF6-SPK1 LG Display 15.6 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
LP156WF6-SPK1 LG Display 15.6 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
LP156WF6-SPK1 LG Display 15.6 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
LP156WF6-SPK1 LG Display 15.6 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
LP156WF6-SPK1 LG Display 15.6 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
LP156WF6-SPK1 LG Display 15.6 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
LP156WF6-SPK1 LG Display 15.6 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
LG Display
Model Number :
LP156WF6-SPK1
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :
100PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
LP156WF6-SPK1
BRAND :
LG Display
SIZE :
15.6 inch
BRIGHTNESS :
250CD/M2
Lamp Type :
WLED
RESOLUTION :
1920(RGB)×1080, FHD, 141PPI
VIEWING ANGLEG :
80/80/80/80 (Min.)(CR≥10)
TEMPERATURE RANGE :
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Description

LG Display LP156WF6-SPK1 Application Details

Basic Detail :
Manufacturer

LP156WF6-SPK1LP156WF6-SPK1 LG Display 15.6 39 CompatibleModel Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LP156WF6 (SP)(K1), LGD04A7
Panel Size
15.6 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C

LG Display LP156WF6-SPK1 Optical Details

Basic Detail :
Luminance
250 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
25 (Typ.)(Tr+Td) ms
Viewing Angle
80/80/80/80 (Min.)(CR≥10)
Operating Mode
AH-IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K (6-bit)
Color Temperature
6485K
White Variation
1.40/1.60 (Max.)(5/13 points)
1931 Color Gamlt :
NTSC Ratio
45%
sRGB
64% coverage
Adobe RGB
47% coverage
DCI-P3
47% coverage
Rec.2020
34% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP156WF6-SPK1 Mechanical Details

Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.05975×0.17925 mm
Pixel Pitch(W×H)
0.17925×0.17925 mm [141PPI]
Physical Size :
Active Viewing
344.16(W)×193.59(H) mm
Overall Dim.
359.5(W)×223.8(H) mm
Bezel Opening
347.45(W)×196.8(H) mm
Overall Depth
3.05/3.2 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Fixation :
Face mounting holes (8 pcs) on up, down slugs
Other Detail :
Mass
340/350g (Typ./Max.)
Surface
Antiglare

LG Display LP156WF6-SPK1 Interface Detail

Signal Electrical :
Input Current
330/390mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
1.1/1.3W (Typ./Max.)
Signal Interface
eDP (2 Lanes), HBR1 (2.7G/lane)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
HRS
KN38B-30S-0.5H
0.5 mm
30 pins
1 pcs
EDP-30P2L-020A

LG Display LP156WF6-SPK1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
12K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
5.5/12.0/21.0V (Min./Typ./Max.)
Input Current
250/260mA (Typ./Max.)
Consumption
3.0/3.1W (Typ./Max.)

LG Display LP156WF6-SPK1 Packing Details

Package Box : Amount Size (L×W×H) Weight
20 pcs / box - 365×478×328 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LP156WF6-SPK1 LG Display 15.6
