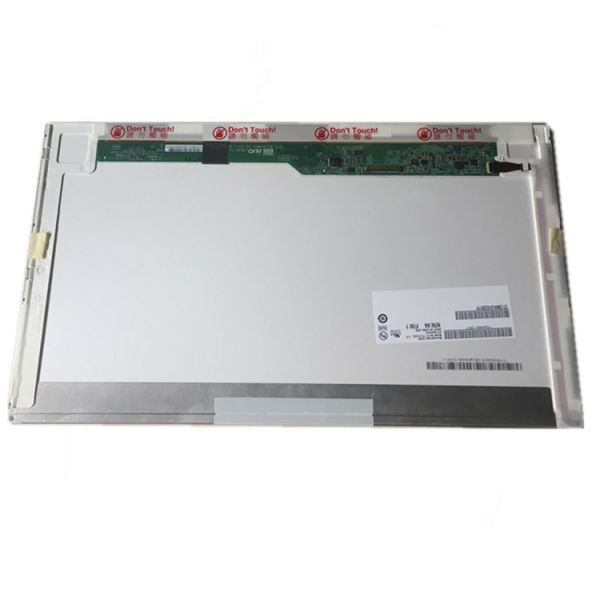

N156B6-L0B Chimei Innolux 15.6 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY
N156B6-L0B Chimei Innolux 15.6 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY
N156B6-L0B Chimei Innolux 15.6 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY
N156B6-L0B Chimei Innolux 15.6 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY
N156B6-L0B Chimei Innolux 15.6 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY
N156B6-L0B Chimei Innolux 15.6 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
INNOLUX
Model Number :
N156B6-L0B
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :
500PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
N156B6-L0B
BRAND :
INNOLUX
SIZE :
15.6"inch
BRIGHTNESS :
220CD/M2
Lamp Type :
WLED
RESOLUTION :
1366(RGB)×768, WXGA, 100PPI
VIEWING ANGLEG :
45/45/20/45 (Typ.)(CR≥10)
TEMPERATURE RANGE :
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Description

Chimei Innolux N156B6-L0B Application Features

Basic Information : Manufacturer Panel Model 64 Compatible Panel Type Alias
N156B6-L0B a-Si TFT-LCD , LCM LEN40B0
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
0 ~ 50 °C -20 ~ 60 °C

Chimei Innolux N156B6-L0B Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
220 (Typ.) 45/45/20/45 (Typ.)(CR≥10) 3/8 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
6 o'clock TN, Normally White, Transmissive 650 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 262K (6-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
61% 85% 64%
DCI-P3 Coverage Rec.2020 Coverage Remarks
64% 46% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.25 (Max.)(5 points)

Chimei Innolux N156B6-L0B Mechanical Features

Panel Size : 15.6"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1366(RGB)×768 [WXGA] RGB Vertical Stripe 0.252×0.252 [100PPI] 0.084×0.252
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
344.232(H) × 193.536(V) 349.58(H) × 198.29(V) 359.3(H) × 209.5(V) 5.2/5.5 (Typ./Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 16:9 (H:V) Wedge (PCBA Bent, T≥5.2mm)
Mounting : Side mounting holes (8-M2) on left, right bezel
Other Detail : Weight Panel Cover Treatment
430/445g (Typ./Max.) - Glare (Haze 0%), Hard coating (3H)

Chimei Innolux N156B6-L0B Backlight Features

Lamp Features: Type Position Quantity Shape Life(Hours) Lamp Exchange
WLED Edge light type 9S6P 6 strings 15K(Min.) -
WLED Electrical : Voltage Supply Current Supply Power
26.1/28.8/30.6V (Min./Typ./Max.) 20±1mA 2.975/3.456/3.856W (Min./Typ./Max.)
Interface Features : Position Backlight Driver Type
- With LED Driver Included in panel signal interface
Driver Electrical : Voltage Supply Current Supply Power Consumption
6.0/12.0/21.0V (Min./Typ./Max.) 288/339/398mA (Min./Typ./Max.) 4.07W (Typ.)

Chimei Innolux N156B6-L0B Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
3.3V (Typ.) 320/350mA (Typ./Max.) 0.9W (Max.)
Interface Features : Position Signal Type
LVDS (1 ch, 6-bit) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
I-PEX 20455-040E-12 0.5 mm 40 pins 1 pcs LVDS-40P1C6B-060B

Chimei Innolux N156B6-L0B Packing Features

Package Box : Quantity Weight Box Size
20 pcs / box - 442×392×300 mm (L×W×H

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
