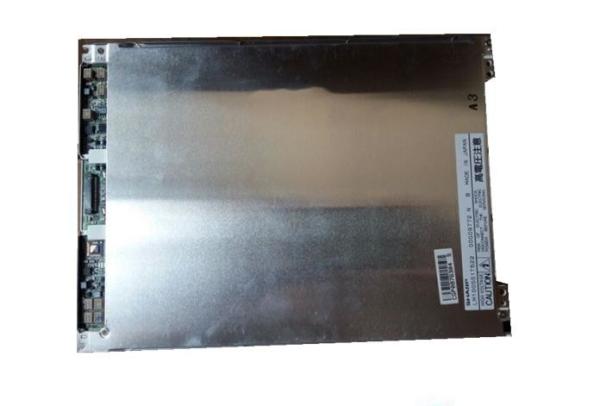

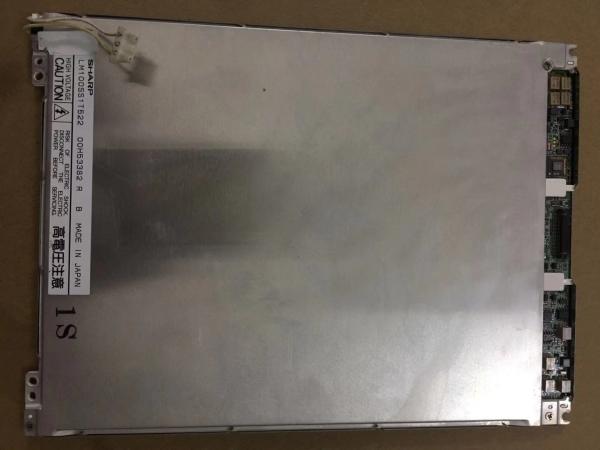

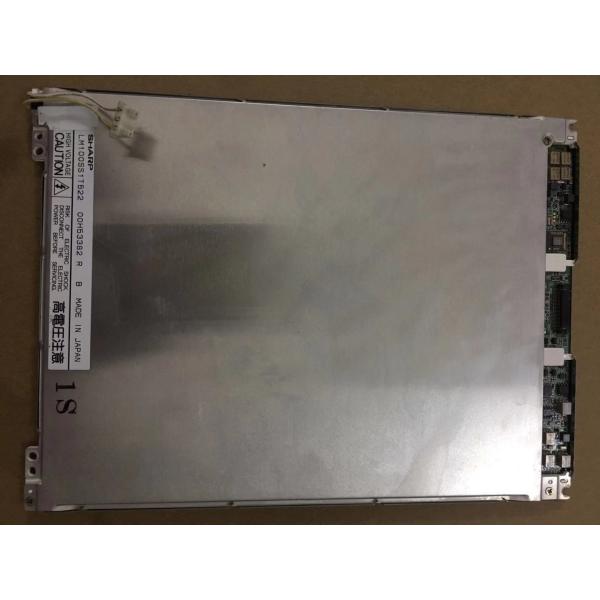

10 LCM 800×600RGB  100cd/m² LM100SS1T522 Sharp TFT LCD Display
10 LCM 800×600RGB  100cd/m² LM100SS1T522 Sharp TFT LCD Display
10 LCM 800×600RGB  100cd/m² LM100SS1T522 Sharp TFT LCD Display
10 LCM 800×600RGB  100cd/m² LM100SS1T522 Sharp TFT LCD Display
10 LCM 800×600RGB  100cd/m² LM100SS1T522 Sharp TFT LCD Display
10 LCM 800×600RGB  100cd/m² LM100SS1T522 Sharp TFT LCD Display
Specifications
Brand Name :
SHARP
Model Number :
LM100SS1T522
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :
500PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
Panel Brand :
Sharp
Panel Model :
LM100SS1T522
Brightness :
100 cd/m² (Typ.)
Bezel Opening :
207.0(W)×156.0(H) mm
Panel Size :
10.0INCH
Resolution :
800(RGB)×600, SVGA, 99PPI
Lamp Type :
1 pcs CCFL , 25K hours , Without Driver
Environment :
Operating Temp.: 0 ~ 40 °C ; Storage Temp.: -25 ~ 60 °C
Description

Sharp LM100SS1T522 Mechanical Features

Screen Size : 10.0"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
800(RGB)×600, SVGA RGB Vertical Stripe 0.085×0.255 mm 0.255×0.255 mm [99PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
203.98×152.98 mm 207.0×156.0 mm 236.8×172.5 mm 6.5±0.3 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
340g - Antiglare, Hard coating (3H)

Sharp LM100SS1T522 Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
CCFL Edge light type 25K(Typ.) 1 pcs Straight -
CCFL Electrical : Input Voltage Input Current Power Consumption
555V (Typ.) 4.3/5.0mA (Typ./Max.) 2.4W (Typ.)
Operating Frequency Startup Voltage
40/100KHz (Min./Max.) 850/1050V (Max.)(Ta=+25/0℃)
Interface Features : CCFL Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST BHR-03VS-1 1 pcs 3 pins 4.0 mm BLL-3PINS-HNL

Sharp LM100SS1T522 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
100 cd/m² (Typ.) STN, Normally Black, Transmissive 50:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
- 30/30/15/25 (Typ.)(CR≥5) 220/80 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
7075K Color X:0.300; Y:0.340

Sharp LM100SS1T522 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) - 680/975mW (Typ./Max.)
Interface Features : Signal Type Physical Type Interface Position
Parallel Data (8-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JAE FI-W31P-HF 1 pcs 31 pins 1.25 mm

LM100SS1T522 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 203.98(W)×152.98(H) mm, outline size of 236.8(W)×172.5(H)×6.8(D) mm, viewing area size of 207.0(W)×156.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 340g. As a STN, Normally Black, Transmissive LCM product, LM100SS1T522 can provides 100 cd/m² display brightness 50:1 transimissive contrast ratio, 30/30/15/25 (Typ.)(CR≥5) (L/R/U/D) viewing angle , and response time of 220/80 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 25K hours, external backlight driver is additionally needed.
