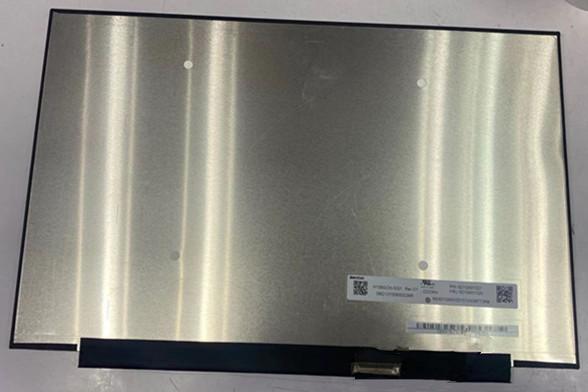

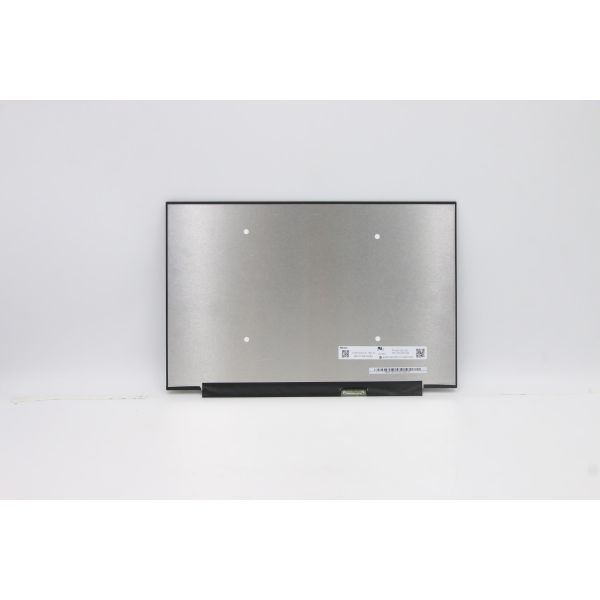

N133GCA-GQ1 Innolux 13.3 2560(RGB)×1600 300 cd/m² INDUSTRIAL LCD DISPLAY
N133GCA-GQ1 Innolux 13.3 2560(RGB)×1600 300 cd/m² INDUSTRIAL LCD DISPLAY
N133GCA-GQ1 Innolux 13.3 2560(RGB)×1600 300 cd/m² INDUSTRIAL LCD DISPLAY
N133GCA-GQ1 Innolux 13.3 2560(RGB)×1600 300 cd/m² INDUSTRIAL LCD DISPLAY
N133GCA-GQ1 Innolux 13.3 2560(RGB)×1600 300 cd/m² INDUSTRIAL LCD DISPLAY
N133GCA-GQ1 Innolux 13.3 2560(RGB)×1600 300 cd/m² INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
INNOLUX
Model Number :
N133GCA-GQ1
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :
1000PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
N133GCA-GQ1
BRAND :
INNOLUX
SIZE :
13.3 inch
BRIGHTNESS :
300CD/M2
Lamp Type :
WLED
RESOLUTION :
2560(RGB)×1600, WQXGA, 227PPI
VIEWING ANGLEG :
89/89/89/89 (Typ.)(CR≥10)
TEMPERATURE RANGE :
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Description

Innolux N133GCA-GQ1 Application Details

Basic Information : Brand Model N133GCA-GQ1
Type LCM a-Si TFT-LCD Used For
Screen Size 13.3" Alias CMN13B0
Environment : Storage Temp. -20 ~~ 60 °C Operating Temp. 0 ~~ 50 °C
RoHS Vibration 1.5G (14.7 m/s²)

Innolux N133GCA-GQ1 Mechanical Details

Pixel Features : Resolution 2560(RGB)×1600, WQXGA Dot Pitch(mm) 0.037×0.111 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.111×0.111 (H×V) [227PPI]
Mechanical Size : Active Area(mm) 286.08(H) × 178.8(V) Bezel Area(mm) -
Outline Dim.(mm) 291.08(H) × 195.3(V) Depth(mm) 2.25/3.1 (Typ./Max.)
Outline Features : Form Style Flat Rectangle Outline Shape Slim (PCBA Flat, T≤3.2mm)
Aspect Ratio 16:10 (H:V) Orientation Landscape type
Mounting : Without
Other Spec : Weight 200/210g (Typ./Max.) Treatment Antiglare, Hard coating (3H)

Innolux N133GCA-GQ1 Optical Details

Basic Information : Luminance(cd/m²) 300 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode AAS, Normally Black, Transmissive
Best View on Symmetry Response(ms) 11/9 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.313; Y:0.329 Display Colors 16.7M (8-bit)
Color Temperature 6485K White Uniformity 1.25/1.54 (Max.)(5/13 points)
1931 Color Gamlt : NTSC Ratio 71% sRGB 100% coverage
Adobe RGB 74% coverage DCI-P3 74% coverage
Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Innolux N133GCA-GQ1 Interface Details

Signal Electrical : Voltage Supply 3.3V (Typ.) Current Supply 273/304mA (Typ./Max.)
Consumption 1.0W (Max.)
Signal Type : eDP (4 Lanes) Signal Voltage -
Interface Features : Position Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
20729-040E 1 pcs 40 pins

Innolux N133GCA-GQ1 Backlight Details

Backlight Features: Shape - Type WLED Position Edge light type
Replacement - Quantity - Life Time 15K(Min.) (Hours)
Interface Features : Position - Type Included in panel signal interface
Backlight Driver : With LED Driver
Driver Electrical : Voltage Supply 6/12/21V (Min./Typ./Max.) Current Supply 178/214/225mA (Min./Typ./Max.)
Consumption 2.7W (Max.)

Innolux N133GCA-GQ1 Packing Details

Package Box : Quantity Weight Box Size
40 pcs / box - 540×450×320 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
