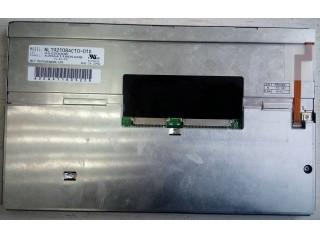

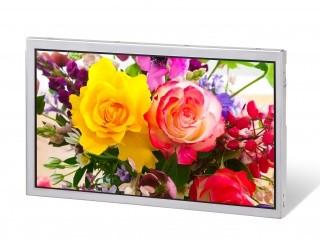

LVDS 9 Inch 1920*1080 400cd/m² TFT LCD Display NL192108AC10-01D
LVDS 9 Inch 1920*1080 400cd/m² TFT LCD Display NL192108AC10-01D
LVDS 9 Inch 1920*1080 400cd/m² TFT LCD Display NL192108AC10-01D
LVDS 9 Inch 1920*1080 400cd/m² TFT LCD Display NL192108AC10-01D
LVDS 9 Inch 1920*1080 400cd/m² TFT LCD Display NL192108AC10-01D
LVDS 9 Inch 1920*1080 400cd/m² TFT LCD Display NL192108AC10-01D
Specifications
Brand Name :
NEC
Model Number :
NL192108AC10-01D
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
TT / Escrow 10 / Paypal / WesternUnion
Supply Ability :
500PCS
Delivery Time :
1-3 Working Day
Packaging Details :
With Original Factory Package
Price :
50USD
Size :
9 Inch
Resolution :
1920(RGB)×1080 [FHD] 245PPI
Panel Type :
a-Si TFT-LCD , LCM
Pixel Format :
RGB Vertical Stripe
Brightness :
400 cd/m² (Typ.)
Contrast Ratio :
900:1 (Typ.) (TM)
Viewing Angle :
88/88/88/88 (Typ.)(CR≥10)
Environment :
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
Voltage Supply :
3.3V (Typ.)
Description

1.HIGHEST QUALITY STANDARD DISPLAYS


As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.

Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industria

2. NLT NL192108AC10-01D Optical Details:

Basic Information : Luminance 400 cd/m² (Typ.) Contrast Ratio 700 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 13/12 (Typ.)(Tr/Td) (ms)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) Operating Mode SFT, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.300; Wy:0.315 Support Color 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature 7435K White Uniformity 1.10/1.30 (Typ./Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 76% sRGB 100% coverage
Adobe RGB 80% coverage DCI-P3 79% coverage
Rec.2020 57% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.NLT NL192108AC10-01D Mechanical Details:

Pixel Features : Number of Pixel 1920(RGB)×1080 [FHD] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.0345×0.1035 mm Pixel Pitch(W×H) 0.1035×0.1035 mm [245PPI]
Physical Size : Active Viewing 198.72(W)×111.78(H) mm Overall Dim. 214.6(W)×130(H) mm
Bezel Opening 201.8(W)×114.8(H) mm Overall Depth 9.1±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:9 Shape Style -
Fixation : Side mounting holes (4-M2) on left, right bezel
Other Detail : Mass 270/300g (Typ./Max.) Surface Antiglare (Haze 41%), Hard coating (2H), Antireflection

4.NLT NL192108AC10-01D Lightting Details:

Lamp Features: Lamp Shape - Lamp Type WLED Position Edge light type
Exchange Replaceable (90LHS08) Amount - Life 70K(Typ.) (Hours)
Interface Features : Position - Physical Type Included in panel signal interface
Backlight Driver : With LED Driver
Driver Electrical : Input Current 0.70/1.00A (Typ./Max.) Input Voltage 12.0±1.2V
Consumption 8.4W (Typ.)
  • 5.FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
