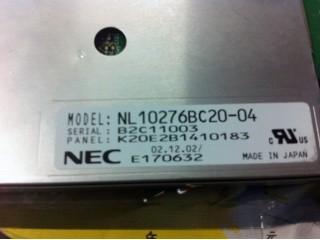

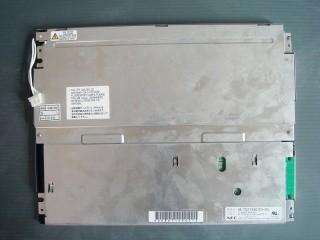

10.4 Inch TFT Display NL10276BC20-04 2 PCS CCFL Without Driver
10.4 Inch TFT Display NL10276BC20-04 2 PCS CCFL Without Driver
10.4 Inch TFT Display NL10276BC20-04 2 PCS CCFL Without Driver
10.4 Inch TFT Display NL10276BC20-04 2 PCS CCFL Without Driver
10.4 Inch TFT Display NL10276BC20-04 2 PCS CCFL Without Driver
10.4 Inch TFT Display NL10276BC20-04 2 PCS CCFL Without Driver
Specifications
Brand Name :
NEC
Model Number :
NL10276BC20-04
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
TT / Escrow 10 / Paypal / WesternUnion
Supply Ability :
500PCS
Delivery Time :
1-3 Working Day
Packaging Details :
With Original Factory Package
Size :
10.4 Inch
Resolution :
1024(RGB)×768 [XGA] 196PPI
Panel Type :
a-Si TFT-LCD , LCM
Pixel Format :
RGB Vertical Stripe
Brightness :
300 cd/m² (Typ.)
Contrast Ratio :
300:1 (Typ.) (TM)
Viewing Angle :
60/60/45/60 (Typ.)(CR≥10)
Environment :
Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C
Voltage Supply :
3.3V (Typ.)
Description

1.HIGHEST QUALITY STANDARD DISPLAYS


As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.

Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.

2. NEC NL10276BC20-04 Optical Details:

Basic Information : Luminance 300 cd/m² (Typ.) Contrast Ratio 300 : 1 (Typ.) (Transmissive)
Good View at 6 o'clock Response Speed 15/40 (Typ.)(Tr/Td) (ms)
Viewing Angle 60/60/45/60 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.315; Wy:0.340 Support Color 262K (6-bit)
Color Temperature 6304K White Uniformity 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 41% sRGB 57% coverage
Adobe RGB 43% coverage DCI-P3 43% coverage
Rec.2020 31% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.NEC NL10276BC20-04 Mechanical Details:

Pixel Features : Number of Pixel 1024(RGB)×768 [XGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.0685×0.2055 mm Pixel Pitch(W×H) 0.2055×0.2055 mm [123PPI]
Physical Size : Active Viewing 210.4(W)×157.8(H) mm Overall Dim. 243(W)×185.1(H) mm
Bezel Opening 215.4(W)×161.8(H) mm Overall Depth 11.0±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style -
Fixation : Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Detail : Mass 530/550g (Typ./Max.) Surface Clear, Hard coating (3H)

4.NEC NL10276BC20-04 Lightting Details:

Lamp Features: Lamp Shape Straight Lamp Type CCFL Position Edge light type (Top side)
Exchange Replaceable (104LHS35) Amount 2 pcs Life -
Lamp Electrical : Input Current 2.0/5.0/5.5mA (Min./Typ./Max.) Input Voltage 520V (Typ.)
Frequency 60/65/70KHz (Min./Typ./Max.) Turn-on Voltage 850/1100V (Min.)(Ta=+25/0℃)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JST BHR-03VS-1 1 pcs 4.0 mm 3 pins BLL-3PINS-LHH
Backlight Driver : No


5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
