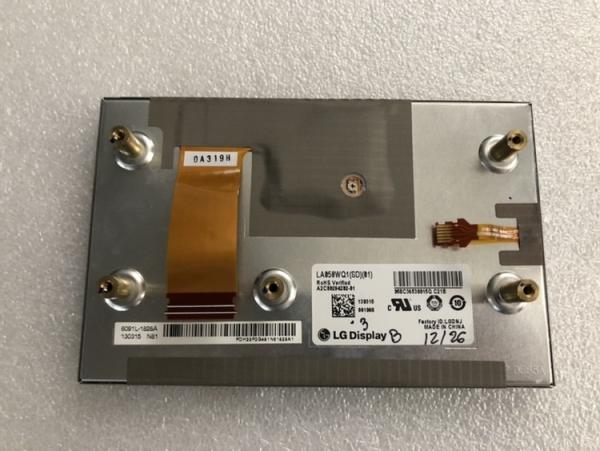

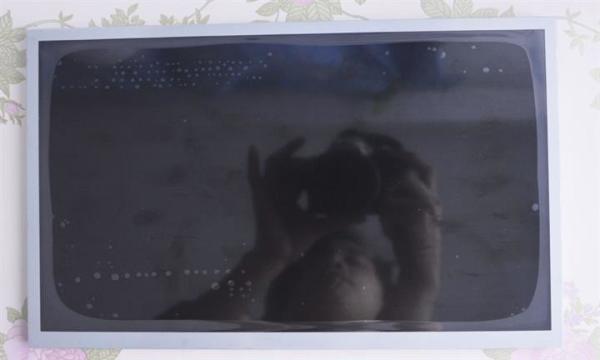

WQVGA 80PPI 5.8 Symmetry TFT LCD Module 470cd/m2 LA058WQ1-SD01
WQVGA 80PPI 5.8 Symmetry TFT LCD Module 470cd/m2 LA058WQ1-SD01
WQVGA 80PPI 5.8 Symmetry TFT LCD Module 470cd/m2 LA058WQ1-SD01
WQVGA 80PPI 5.8 Symmetry TFT LCD Module 470cd/m2 LA058WQ1-SD01
WQVGA 80PPI 5.8 Symmetry TFT LCD Module 470cd/m2 LA058WQ1-SD01
WQVGA 80PPI 5.8 Symmetry TFT LCD Module 470cd/m2 LA058WQ1-SD01
Specifications
Brand Name :
LG DISPLAY
Model Number :
LA058WQ1-SD01
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :
2000PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
LA058WQ1-SD01
BRAND :
LG DISPLAY
SIZE :
5.8INCH
BRIGHTNESS :
470CD/M2
Lamp Type :
WLED
RESOLUTION :
400(RGB)×240, WQVGA, 80PPI
VIEWING ANGLEG :
70/70/30/30 (Typ.)(CR≥10)
TEMPERATURE RANGE :
Operating Temp.: -40 ~ 95 °C ; Storage Temp.: -40 ~ 105 °C ; Vibration Level: 3.0G (29.4 m/s²)
Description

LG Display LA058WQ1-SD01 Application Details

Basic Info :
Panel Brand

LA058WQ1-SD01Panel Model
Diagonal Size
5.8"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LA058WQ1 (SD)(01)
Reliability :
Operating Temp.
-40 ~ 95 °C
Storage Temp.
-40 ~ 105 °C
RoHS State

3.0G (29.4 m/s²)Vibration Rating

LG Display LA058WQ1-SD01 Mechanical Details

Pixel Features :
Pixel Format
400(RGB)×240, WQVGA
Dot Pitch
0.1053×0.316 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.3159×0.316 mm (H×V) [80PPI]
Mechanical Size :
Display Area
126.36×75.84 mm (H×V)
Bezel Area
130.8×80.3 mm (H×V)
Outline Dim.
152×97 mm (H×V)
Outline Depth
9.2 (Typ.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
15:9 (H:V)
Shape Style
Holes & Brackets :
Rear mounting Pole (5-M3)
Other Features :
Weight
211/216g (Typ./Max.)
Surface
Antiglare (Haze 11%), Antireflection

LG Display LA058WQ1-SD01 Optical Details

Basic Information :
Brightness
470 cd/m² (Min.)
Contrast Ratio
900:1 (Typ.) (Transmissive)
Viewing Angle
70/70/30/30 (Typ.)(CR≥10)
Optical Mode
IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
15/10 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.316; Wy:0.348
Color Numbers
262K (6-bit)
Color Temperature
6210K
Uniformity
1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
63%
sRGB
81% coverage
Adobe RGB
64% coverage
DCI-P3
66% coverage
Rec.2020
47% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LA058WQ1-SD01 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
7S1P
Life Time
20K(Min.) (Hours)
Replacement
-
Lamp Shape
1 string
Position
Edge light type
Lamp Electrical :
Voltage Input
21.8±2.1V
Current Input
85/90mA (Typ./Max.)
Consumption
1.85/2.15W (Typ./Max.)
Interface Features :
Type
FPC
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
6 pins
1 pcs

LG Display LA058WQ1-SD01 Interface Detail

Signal Systerm :
Parallel RGB (1 ch, 6-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
80/130/190mA (Min./Typ./Max.)
Consumption
0.46/0.63W (Typ./Max.)
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
40 pins
1 pcs

LG Display LA058WQ1-SD01 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
30 pcs / box - 572×372×166 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
