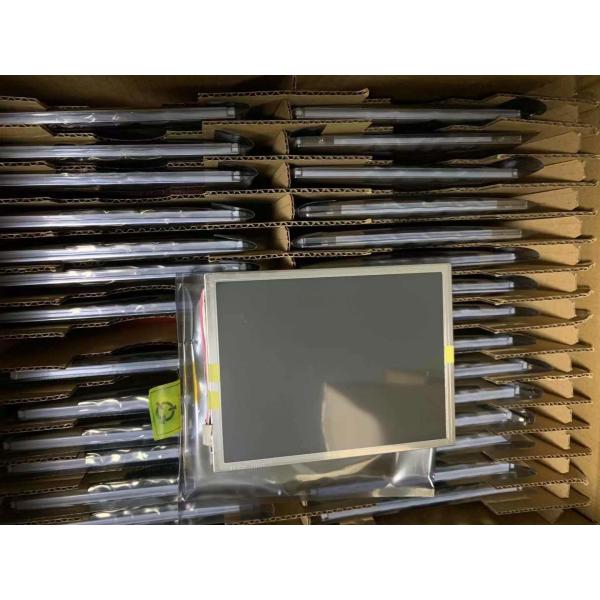

6.4 Inch TFT Display LB064V02-TD01 Without Driver 1 pcs CCFL 65/65/50/60 (Typ.)(CR≥10)
6.4 Inch TFT Display LB064V02-TD01 Without Driver 1 pcs CCFL 65/65/50/60 (Typ.)(CR≥10)
6.4 Inch TFT Display LB064V02-TD01 Without Driver 1 pcs CCFL 65/65/50/60 (Typ.)(CR≥10)
6.4 Inch TFT Display LB064V02-TD01 Without Driver 1 pcs CCFL 65/65/50/60 (Typ.)(CR≥10)
6.4 Inch TFT Display LB064V02-TD01 Without Driver 1 pcs CCFL 65/65/50/60 (Typ.)(CR≥10)
6.4 Inch TFT Display LB064V02-TD01 Without Driver 1 pcs CCFL 65/65/50/60 (Typ.)(CR≥10)
6.4 Inch TFT Display LB064V02-TD01 Without Driver 1 pcs CCFL 65/65/50/60 (Typ.)(CR≥10)
6.4 Inch TFT Display LB064V02-TD01 Without Driver 1 pcs CCFL 65/65/50/60 (Typ.)(CR≥10)
6.4 Inch TFT Display LB064V02-TD01 Without Driver 1 pcs CCFL 65/65/50/60 (Typ.)(CR≥10)
6.4 Inch TFT Display LB064V02-TD01 Without Driver 1 pcs CCFL 65/65/50/60 (Typ.)(CR≥10)
Specifications
Brand Name :
LG Display
Model Number :
LB064V02-TD01
MOQ :
1
Price :
USD85
Payment Terms :
T/T, Western Union,Paypal,Alibaba
Supply Ability :
500pcs
Delivery Time :
3-4 Working Days
Packaging Details :
20pcs/box with original factory package
Size :
6.4 Inch
Resolution :
640(RGB)×480, VGA, 124PPI
Brightness :
250 cd/m² (Typ.)
Viewing Angle :
65/65/50/60 (Typ.)(CR≥10)
Contrast Ratio :
400:1 (Typ.) (TM)
Best View on :
6 o'clock
Signal Interface :
CMOS/TTL (1 ch, 6-bit) , 30 pins Connector
Environment :
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Description

1.HIGHEST QUALITY STANDARD DISPLAYS


As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.

Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.

2.LG. LCD LB064V02-TD01 Optical Features.

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
250 (Typ.) 65/65/50/60 (Typ.)(CR≥10) 10/15 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
6 o'clock TN, Normally White, Transmissive 400 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 262K (6-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
45% 62% 47%
DCI-P3 Coverage Rec.2020 Coverage Remarks
46% 33% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.25/1.40 (Typ./Max.)(5 points)

3.LG.LCD LB064V02-TD01 Mechanical Features:

Panel Size : 6.4"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
640(RGB)×480 [VGA] RGB Vertical Stripe 0.204×0.204 [124PPI] 0.068×0.204
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
130.56(H) × 97.92(V) 133.8(H) × 101.1(V) 145.5(H) × 111.5(V) 6.0±0.3 mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 4:3 (H:V)
Mounting : Side mounting holes (4-M2)
Other Detail : Weight Panel Cover Treatment
130/140g (Typ./Max.) - Antiglare, Hard coating (3H)

4.LG. LCD LB064V02-TD01 Backlight Features:

Lamp Features: Type Position Quantity Shape Life(Hours) Lamp Exchange
CCFL Edge light type (Bottom side) 1 pcs - 20K(Min.) -
CCFL Electrical : Voltage Supply Current Supply Power
340V (Typ.) 6.0mA (Typ.) 2.04W (Typ.)
Operating Frequency Kick-off Voltage
40/60/80KHz (Min./Typ./Max.)
Interface Features : Position Backlight Driver Type
- No Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
JST BHSR-02VS-1 3.5 mm 2 pins 1 pcs BLL-2PINS-HL

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
