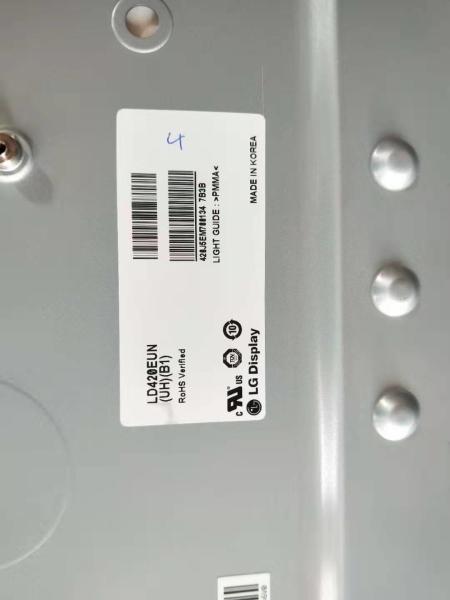

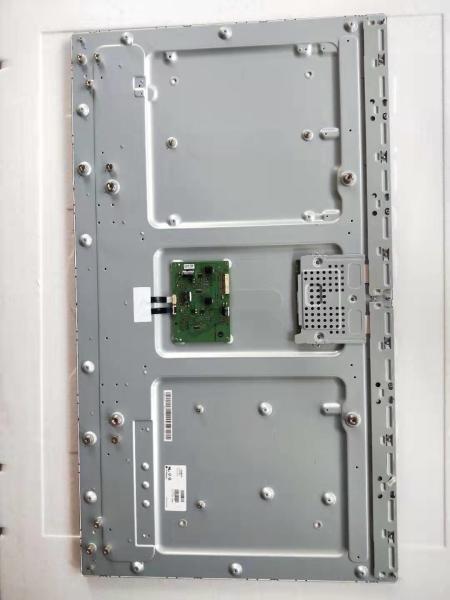

LD420EUN-UHA1 LG Display 42 1920(RGB)×1080 700 cd/m² INDUSTRIAL LCD DISPLAY
LD420EUN-UHA1 LG Display 42 1920(RGB)×1080 700 cd/m² INDUSTRIAL LCD DISPLAY
LD420EUN-UHA1 LG Display 42 1920(RGB)×1080 700 cd/m² INDUSTRIAL LCD DISPLAY
LD420EUN-UHA1 LG Display 42 1920(RGB)×1080 700 cd/m² INDUSTRIAL LCD DISPLAY
LD420EUN-UHA1 LG Display 42 1920(RGB)×1080 700 cd/m² INDUSTRIAL LCD DISPLAY
LD420EUN-UHA1 LG Display 42 1920(RGB)×1080 700 cd/m² INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
LG DISPLAY
Model Number :
LD420EUN-UHA1
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :
200PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
LD420EUN-UHA1
BRAND :
LG DISPLAY
SIZE :
42 inch
BRIGHTNESS :
700CD/M2
Lamp Type :
WLED
RESOLUTION :
1920(RGB)×1080, FHD, 52PPI
VIEWING ANGLEG :
89/89/89/89 (Typ.)(CR≥10)
TEMPERATURE RANGE :
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Description

LG Display LD420EUN-UHA1 Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
LD420EUN-UHA1 a-Si TFT-LCD , LCM LD420EUN (UH)(A1)
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
0 ~ 50 °C -20 ~ 60 °C

LG Display LD420EUN-UHA1 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
700 (Typ.) 89/89/89/89 (Min.)(CR≥10) 8 (Typ.)(G to G)
Best View on Display Mode Contrast Ratio
Symmetry IPS, Normally Black, Transmissive 1300 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
9972K 16.7M/1.07B (8-bit / 8-bit + Dithering) X:0.279; Y:0.292
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
72% 98% 74%
DCI-P3 Coverage Rec.2020 Coverage Remarks
75% 54% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.54 (Max.)(9 points)
Performance : 3D Tech Sunlight Visibility Reflectance
- Sunlight Readable -

LG Display LD420EUN-UHA1 Mechanical Features

Panel Size : 42"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1920(RGB)×1080 [FHD] RGB Vertical Stripe 0.4833×0.4833 [52PPI] 0.1611×0.4833
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
927.94(H) × 521.96(V) 933.94(H) × 527.96(V) 945.74(H) × 539.76(V) 19.0/34.7 (Typ./Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Videowall Seam
Flat Rectangle Landscape / Portrait 16:9 (H:V) 17.8 mm (Active to Active)
Other Detail : Weight Panel Cover Treatment
9.80/10.3Kgs (Typ./Max.) - Antiglare (Haze 10%), Hard coating (3H)

LG Display LD420EUN-UHA1 Backlight Features

Lamp Features: Type Position Quantity Shape Life(Hours) Lamp Exchange
WLED Edge light type - - 60K(Typ.) -
Interface Features : Position Backlight Driver Type
- With LED Driver Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
YEONHO 20022WR-H14B2 2.0 mm 14 pins 1 pcs
Driver Electrical : Voltage Supply Current Supply Power Consumption
24.0±2.4V 3.1/3.41A (Typ./Max.) 74.3/81.9W (Typ./Max.)

LG Display LD420EUN-UHA1 Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
12.0V (Typ.) 560/728mA (Typ./Max.) 6.72/8.74W (Typ./Max.)
Interface Features : Position Signal Type
- LVDS (2 ch, 8/10-bit) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
JAE FI-RE51S-HF 0.5 mm 51 pins 1 pcs

LG Display LD420EUN-UHA1 Packing Features

Package Box : Quantity Weight Box Size
22 pcs / box - 1300×1140×772 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
